Planar VM55MX-M2 – 2x2 LCD Video Wall Package

Product Overview

This Planar VM55MX-M2 package provides a complete 2x2 LCD video wall built from four 55-inch tiled displays. It includes the displays, related cables and accessories, wall mounts, trim, and spacer hardware needed to assemble a clean tiled array. The VM55MX-M2 uses an IPS panel with an ultra-narrow 0.88mm tiled bezel and 700-nit brightness rated for 24x7 operation. This bundle is intended for organizations deploying a Full HD per-panel video wall in lobbies, control environments, and meeting spaces.

Product Description

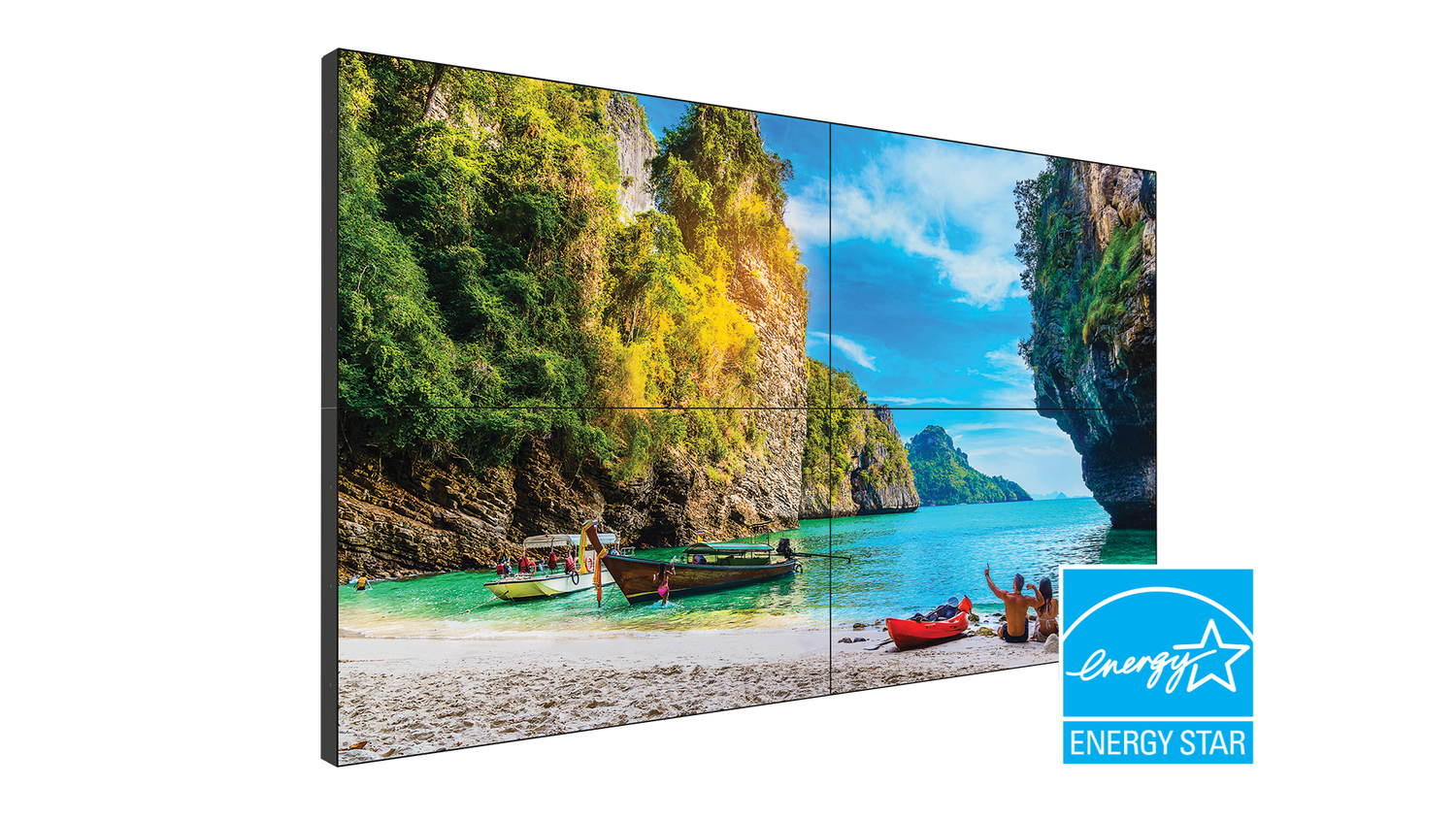

The Planar VM55MX-M2 video wall package brings together four 55-inch tiled LCD displays into a single 2x2 array, complete with mounts, trim, and spacers for a finished installation. Each VM55MX-M2 panel features a 1920x1080 native resolution, an IPS panel with a 178-degree viewing angle, and a 700-nit brightness rating suited to bright, always-on environments. The ultra-narrow 0.88mm combined bezel keeps the seams between panels minimal so content reads cleanly across the full array. Connectivity on each display includes DisplayPort 1.2 in and out, two HDMI 2.0 inputs with HDCP 2.2, an HDMI output, and an integrated OPS slot for an optional computing module, supporting 4K at 60Hz signal handling. RS-232 and IR control loop-through simplify daisy-chained control across the array, and the displays support tiling configurations up to 10x10 for larger builds beyond this 2x2 package. Landscape or portrait mounting is supported, giving integrators flexibility in room layout. The displays are ENERGY STAR certified. Additional Planar video wall and large-format options are available in our Planar collection. For mount model details and exact accessory contents in this bundle, contact Creation Networks to confirm.

Key Features

• Complete 2x2 package — Four 55-inch VM55MX-M2 displays ship with cables, accessories, wall mounts, trim, and spacers for a finished array.
• Ultra-narrow 0.88mm bezel — A 0.88mm tiled bezel keeps seams minimal so content reads cleanly across the wall.
• IPS panel, 178-degree viewing — IPS technology delivers a wide 178-degree viewing angle for off-axis audiences.

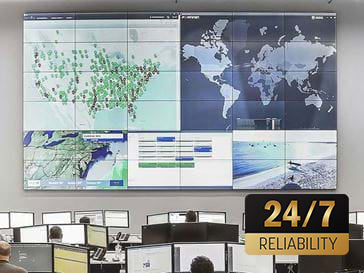

• 700-nit, 24x7 rated — 700-nit brightness rated for around-the-clock operation in bright environments.
• Flexible connectivity — DisplayPort 1.2 in/out, two HDMI 2.0 inputs (HDCP 2.2), HDMI out, and an integrated OPS slot, with 4K at 60Hz support.
• Control loop-through — RS-232 and IR loop-through simplify control across daisy-chained displays.
• Scalable tiling — Supports tiling configurations up to 10x10 and landscape or portrait mounting.
• ENERGY STAR certified — Each display carries ENERGY STAR certification.

Typical Applications

• Boardroom
• Conference room
• Commercial meeting space
• Government space
• Broadcast studio
• Multi-purpose room
• Auditorium

Technical Specifications

Frequently Asked Questions

What is included in this video wall package?
The package includes four VM55MX-M2 displays with related cables and accessories, wall mounts, trim, and spacer hardware for a 2x2 array. For the exact accessory list, contact Creation Networks to confirm.

How small are the seams between displays?
Each VM55MX-M2 has a 0.88mm tiled bezel, keeping the combined seam between adjacent panels very narrow for clean content across the wall.

Can this array be expanded beyond 2x2?
The VM55MX-M2 supports tiling configurations up to 10x10. Additional displays and mounts would be required to expand beyond this 2x2 package.

What sources can the displays accept?
Each display offers DisplayPort 1.2 in/out, two HDMI 2.0 inputs with HDCP 2.2, an HDMI output, and an OPS slot, with support for 4K at 60Hz signals.

How is the video wall controlled?
RS-232 and IR control loop-through allow daisy-chained control across the displays. An external video wall controller can also be added depending on the application.

What warranty and support are available?
Planar VM Series displays carry a manufacturer warranty. Contact Creation Networks to confirm the warranty term and to arrange installation and post-sale support.
