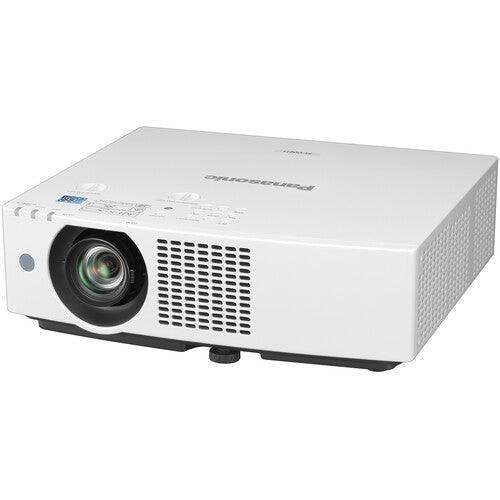

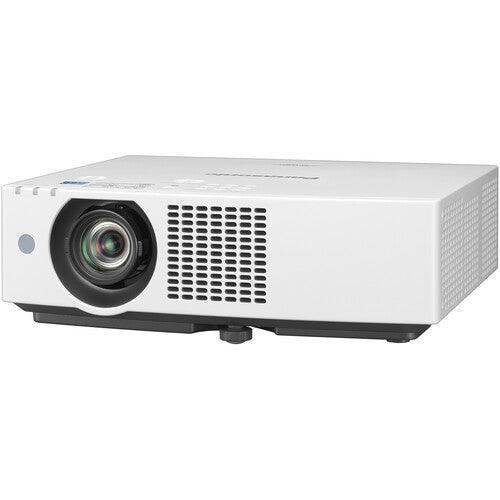

Panasonic PT-VMZ51U7 5,200 lm WUXGA Laser LCD Projector / Digital Link / 4K Signal Input

Product Overview

The Panasonic PT-VMZ51U7 is a 5,200-lumen WUXGA laser 3LCD projector aimed at conference rooms, training rooms, and classroom-style commercial spaces. Its short 1.09–1.77:1 throw and 1.6x zoom let integrators fill large screens from close range, while Digital Link distributes video and control over a single cable for clean rack-mount installations. Native 1920 x 1200 resolution with 4K signal input handles detailed presentation content, and the laser light source supports long maintenance intervals in daily-use rooms.

Product Description

Built as a commercial-grade installation projector, the PT-VMZ51U7 uses a 3-chip 0.64" LCD engine and laser phosphor light source rated for roughly 20,000 hours of operation. A short-throw lens with manual 1.6x optical zoom, vertical and horizontal lens shift, and keystone correction gives AV designers flexibility for ceiling, table, and 360-degree orientations, including portrait digital signage. Digital Link (HDBaseT) carries audio, video, control, and power over a single RJ45 run up to 492 feet in Long Reach Mode, reducing in-room cabling and keeping sources in the rack. Dual HDMI and dual VGA inputs, a built-in 10W speaker, and a reusable filter round out a low-maintenance package for IT and facilities teams. Buyers scaling brightness can move up to the 7,000-lumen PT-VMZ71U7 or the 6,200-lumen PT-VMZ61U7, or choose the same 5,200-lumen output without Digital Link in the PT-VMZ51SU7.

Key Features

• 5,200-Lumen Laser Light Source — Maintains brightness in fully lit meeting rooms with no lamp changes required.
• Native WUXGA Resolution — A 3-chip 0.64" LCD engine displays 1920 x 1200 content and accepts 4K signal input for detailed source material.
• Short-Throw 1.6x Zoom Lens — A 1.09–1.77:1 throw with manual zoom projects up to 300 inches from short distances in tight rooms.
• Digital Link Distribution — HDBaseT carries video, control, and power over a single RJ45 run up to 492 feet in Long Reach Mode.
• 360-Degree and Portrait Projection — Full 360-degree and portrait orientation support fits varied signage and installation angles.
• Lens Shift and Keystone Correction — Vertical and horizontal lens shift plus keystone adjustment ease alignment on ceiling and table mounts.
• Reusable Filter and 24/7 Operation — A reusable air filter and continuous-duty design lower maintenance overhead in daily-use rooms.
• Built-In 10W Speaker — Onboard mono audio supports smaller rooms without a separate sound system.

Typical Applications

• Conference Room — Short throw and 5,200 lumens suit mid-to-large rooms with ambient light.
• Training Room — WUXGA detail and onboard audio support presentation and instructional content.
• Huddle Room — Close projection distance fills a screen in compact spaces.
• Multi-Purpose Room — 360-degree and portrait projection adapt to flexible room configurations.
• Commercial Meeting Space — Digital Link keeps source equipment centralized in the rack.

Technical Specifications

Specifications sourced from Panasonic / vendor data. HDR support and wireless module (AJ-WM50) inclusion require manual review against the current Panasonic PT-VMZ51 spec sheet.

Frequently Asked Questions

What is the difference between the PT-VMZ51U7 and the PT-VMZ51SU7?
The VMZ51U7 includes Digital Link (HDBaseT) for single-cable video, control, and power distribution up to 492 feet. The VMZ51SU7 offers the same 5,200-lumen WUXGA performance without Digital Link, for installations that do not need long-reach HDBaseT.

Can it be mounted in portrait orientation for digital signage?
Yes. The projector supports full 360-degree and portrait projection, making it suitable for vertical signage and angled installations.

Does it accept 4K sources?
The native panel is WUXGA (1920 x 1200), and the projector accepts 4K signal input up to 4096 x 2160, scaling it to the native resolution.

How is it integrated into an AV system?

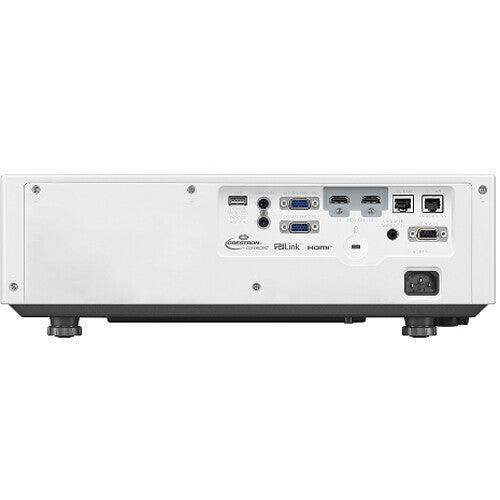

Dual HDMI and VGA inputs handle local sources, while the Digital Link RJ45 connects to a compatible HDBaseT transmitter for centralized switching. A separate LAN port and RS-232C support network monitoring and control.

What ongoing maintenance does it require?
The laser light source is rated for roughly 20,000 hours, and the air filter is reusable, which keeps consumable costs low in daily-use rooms.

What warranty applies?
Warranty terms follow Panasonic's current commercial projector policy; confirm coverage and extended-warranty options with Creation Networks before purchase.
