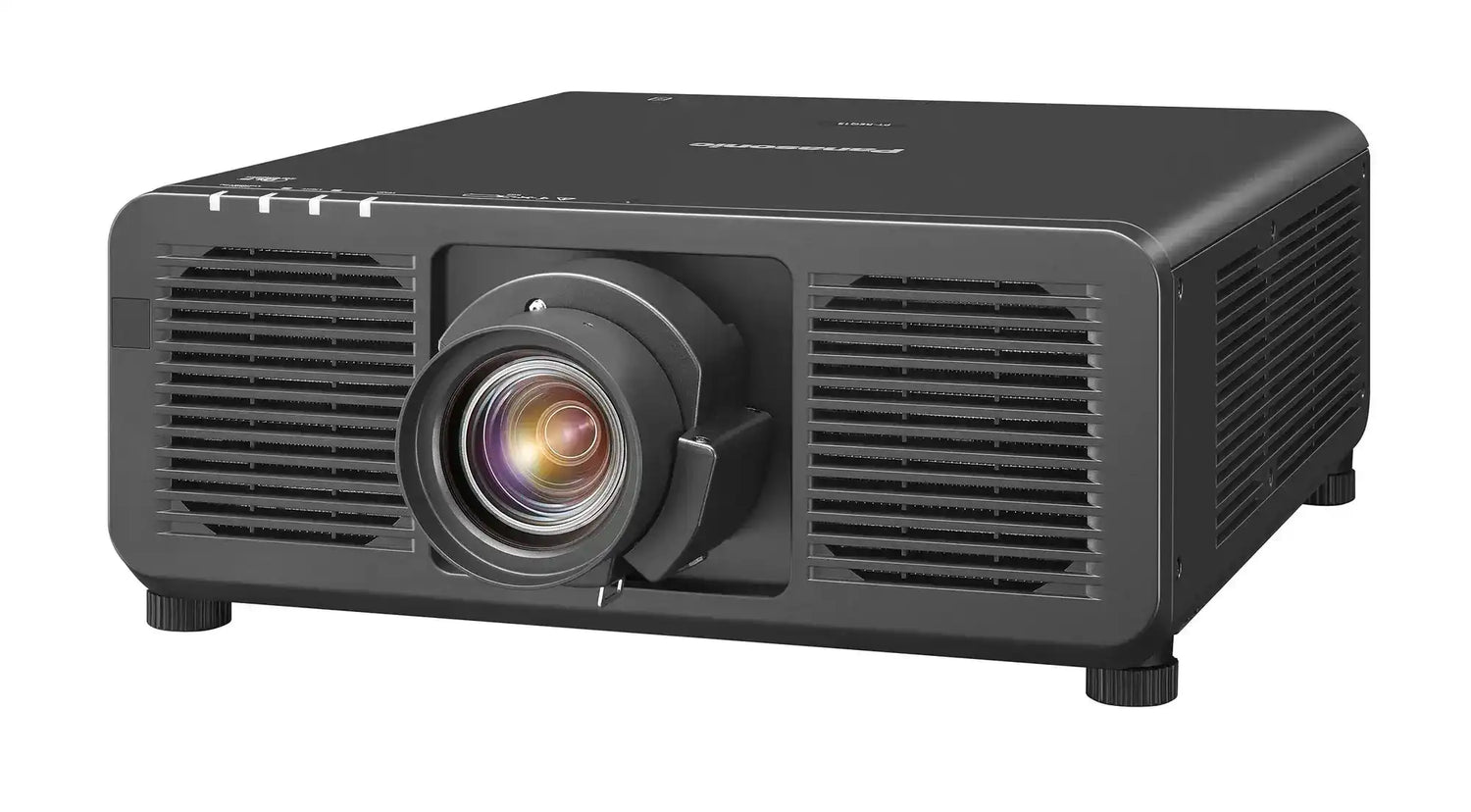

Panasonic PT-REQ15 15,000lm 4K 1-Chip DLP™ Projector

Product Overview

The Panasonic PT-REQ15 is a 15,000-lumen, 4K 1-Chip DLP™ SOLID SHINE laser projector for large-venue and immersive installation applications. It combines Quad Pixel Drive 4K (3840 x 2400) imaging with high-frame-rate 2K/240 Hz capability and low latency, making it well suited to attractions, projection mapping, and high-ambient commercial venues where an installation projector must hold image quality over long runs.

Product Description

The PT-REQ15 pairs a laser diode light source with a 0.8-inch DLP™ chip to deliver 15,000 lm (ISO/IEC 21118) / 15,500 lm center at 4K resolution via Quad Pixel Drive. Panasonic rates the light source at 20,000 hours to 50% brightness, reducing maintenance in continuous-duty installs, and the projector provides full brightness on AC 100–240 V for flexible power. A 25,000:1 dynamic contrast ratio and high-speed 2K/240 Hz projection with input-to-output latency of 6 ms or less support fast-moving content and interactive experiences. Connectivity includes dual HDMI™ inputs and DisplayPort™ (HDCP 2.3, 4K/60p), plus an Intel® SDM-ready slot for AVoIP and expanded I/O. The optical engine and laser module are IP5X dust-protected for demanding environments, and the projector supports free 360-degree installation. As a 1-Chip DLP™ installation platform, the PT-REQ15 is specified by integrators for auditoriums, museums, houses of worship, and rental/staging. Lens is a supplied powered zoom on this model, with the C1 Series lens lineup available to match throw distance. Plan lensing, mounting, and signal distribution as part of the AV system design; contact Creation Networks for projector-to-lens matching and deployment support.

Browse compatible C1 Series lenses and projector mounts at Creation Networks.

Key Features

• 15,000 lm / 15,500 lm center — high output for large venues and high-ambient rooms.
• 4K via Quad Pixel Drive — smooth 3840 x 2400 imaging without visible pixel grid.
• 2K/240 Hz, ≤6 ms latency — fluid fast-motion and interactive content.
• SOLID SHINE laser, 20,000 h — maintenance-free operation to 50% brightness.
• 25,000:1 dynamic contrast — deep blacks and legible detail.
• Intel® SDM slot + HDMI x2 / DisplayPort — AVoIP-ready, flexible integration.
• IP5X dust-protected engine — reliability in demanding environments.
• 360° installation — ceiling, floor, and rotated mounting.

Typical Applications

• Auditorium and large-venue projection
• Museums, attractions, and projection mapping
• House of worship
• Broadcast studio, rental and staging
• Higher-education and corporate all-hands rooms

Technical Specifications

Frequently Asked Questions

Is a lens included?

The PT-REQ15 ships with a supplied powered zoom lens. Panasonic C1 Series lenses (ultra-short-throw through long-throw) are available to match specific throw distances.

What resolution and frame rate does it support?

Native 4K (3840 x 2400) via Quad Pixel Drive, with high-speed 2K/240 Hz projection at ≤6 ms latency for interactive and fast-motion content.

How long is the laser light source rated?

Approximately 20,000 hours to 50% brightness in NORMAL mode, which reduces maintenance versus lamp projectors in continuous-duty installations.

How does it integrate into an AV system?

Dual HDMI, DisplayPort, and an Intel® SDM slot (AVoIP-ready) support managed AV and multi-projector setups; 360° installation allows flexible mounting.

What warranty and support apply?

Panasonic commercial warranty applies, with optional extended service plans. Contact Creation Networks for coverage and integration support.

Can Creation Networks help with lens selection and pricing?

Yes — contact our team for throw-distance calculations, lens matching, lead times, and project quotes.
