Panamax Service Entrance Protection - SEP-200

Product Overview

The Panamax SEP-200 service entrance protection is a whole-facility surge protection device installed at the electrical service entrance panel to defend against large voltage surges before they can reach AV rack equipment, major appliances, or sensitive electronic systems anywhere in the building. As the first line of defense in a layered surge protection strategy, the SEP-200 intercepts surges at the main panel — where utility power enters the facility — reducing the surge energy that downstream rack-level power conditioners and AV equipment must absorb. Rated for split/single phase panels up to 400 amps and carrying a 60kA per-wire maximum surge capacity, the SEP-200 is appropriate for commercial AV infrastructure protection across conference centers, houses of worship, government facilities, and commercial buildings with substantial AV investments.

Product Description

High-voltage surges reach AV systems via two primary paths: through the AC power lines from the utility grid, and through signal lines (coaxial, LAN, telephone). Rack-level power conditioners address signal lines and provide secondary protection on the AC path, but they are not rated to absorb the largest surge events that can occur during direct or nearby lightning strikes, utility switching transients, or major equipment switching within the facility. The SEP-200 addresses the AC power path at the highest-energy point — the service entrance — where it can absorb the bulk of a large surge event before any energy propagates into the building's branch circuits.

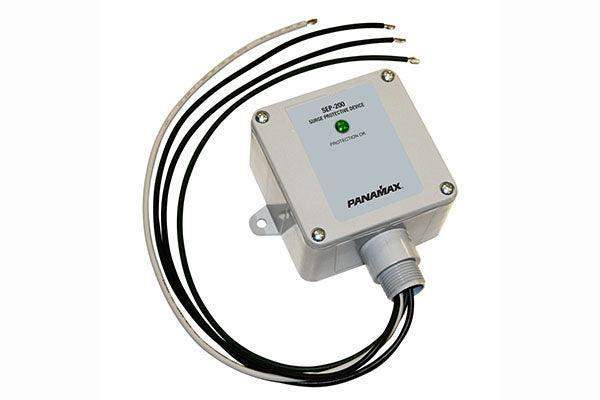

Installation is at the main electrical panel by a licensed electrician. The SEP-200 connects via three wires plus a ground conductor (stranded bare ends, 19-inch leads) to the main service panel in a standard parallel configuration. It is rated for 120/240V single-phase service at 50/60 Hz, meets ANSI C62.41 requirements, and can be installed indoors or outdoors. The all-metal housing features a flame-resistant design and built-in diagnostics indicators. Maximum surge capacity is 60kA per wire at 8x20 microsecond waveform, with 2700 Joules energy dissipation rating and 20,000A interrupt rating. Maximum continuous operating voltage is 130V.

Panamax specifies that the SEP-200 is intended to complement, not replace, rack-level surge protection. Commercial AV installations should deploy the SEP-200 at the service entrance and continue using Panamax power conditioners at the rack level for a complete layered protection strategy. Together, service entrance protection and rack-level conditioners address surges at both the facility level and the equipment level, providing the most complete protection available for commercial AV infrastructure. The SEP-200 carries a 5-year product warranty and a $10,000 three-year connected major appliance protection policy for the original owner.

Key Features

• Service Entrance Installation — Installs at the main electrical panel to intercept large surges before they reach any branch circuit or AV equipment in the facility.
• 60kA Maximum Surge Capacity per Wire — Rated for the high-energy surge events that occur during lightning strikes and utility switching transients.
• Rated for Panels up to 400 Amps — Suitable for commercial facilities with high-amperage electrical service.
• 120/240V Single-Phase, 50/60 Hz — Compatible with standard North American commercial and residential electrical service.
• 2700 Joules Energy Dissipation — High energy dissipation rating for large surge events at the panel level.
• Meets ANSI C62.41 Requirements — Compliance with the industry standard for surge protection at the service entrance.
• Indoor or Outdoor Installation — Operating temperature range of -40°F to +176°F supports installation in unconditioned spaces.
• Flame-Resistant Design with Diagnostics — Safety-first construction with built-in status indicators for maintenance verification.
• 700V L-N / 800V N-G Voltage Protection Rating (UL 1449) — Confirmed VPR values per UL 1449 3rd Edition testing.
• 5-Year Product Warranty — One of the longest warranties in the Panamax product line, reflecting confidence in long-term reliability.
• $10,000 Appliance Protection Policy — Three-year connected major appliance protection for the original owner via authorized dealer purchase.

Typical Applications

• Facility-wide surge protection for commercial buildings with AV infrastructure
• Commercial AV infrastructure protection in conference centers and multi-room facilities
• House of worship facilities with large AV systems and costly equipment
• Government AV installations requiring whole-building surge protection
• Boardroom and executive suite facilities with high-value AV equipment
• Training centers and educational facilities with distributed AV systems
• Broadcast facilities with critical power protection requirements
• Any commercial facility in high-lightning-risk geographic areas
