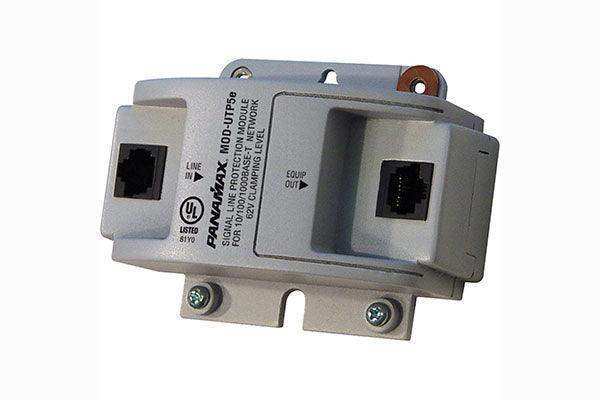

Panamax Module, LAN/UTP 5E - MOD-UTP5E
Product Overview
The Panamax MOD-UTP5E is a modular Ethernet surge protection module for MaxMOD-compatible Panamax base units, providing gigabit-capable (10/100/1000 BASE-T) transient suppression on a single CAT5e UTP network line. It is designed for AV rack environments where network-connected components share power management hardware and require signal line protection on their data connections.
Product Description
The MOD-UTP5E plugs into the modular expansion bay of a compatible Panamax MaxMOD base unit, extending signal protection to Ethernet network lines connected to AV processors, smart home controllers, media servers, or other rack-mounted network equipment. All 8 pins of the RJ-45 connection are protected using differential and common-ground suppression modes. Clamping is set at 62 ± 6V across all pins to ground, and the module is CAT5E compliant and rated for 10/100/1000 BASE-T Gigabit Ethernet as well as Token Ring and AppleTalk. Panamax MOD modules can be stacked on a base unit to cover multiple network lines as needed. Note: signal line modules do not carry their own Connected Equipment Protection Policy, but do not invalidate the policy of a properly installed base unit. Available at Creation Networks.
Key Features
- Gigabit Ethernet Rated — CAT5E compliant; supports 10/100/1000 BASE-T networks without signal degradation.
- All 8 Pins Protected — RJ-45 differential and common-ground suppression across all conductors.
- 62V Clamping Level — All pins to ground; appropriate for Ethernet and structured data line protection.
- MaxMOD Bay Compatible — Installs in modular expansion bays of compatible Panamax base units; stackable for multiple lines.
- Broad Network Compatibility — Also compatible with Token Ring and AppleTalk network types.
Technical Specifications
| Specification | Value |
|---|---|
| Network Lines Protected | 1 Ethernet (UTP CAT5e) line |
| Wires Protected | All 8 pins (RJ-45) |
| Suppression Modes | Differential & Common Ground |
| Clamping Level | 62 ± 6V (all pins to ground) |
| Network Compatibility | 10/100/1000 BASE-T, Token Ring, AppleTalk |
| CAT5E Compliant | Yes |
| Connector | RJ-45 |
| Compatibility | Panamax MaxMOD-compatible base units |
