Netgear APM414SD-10000S
Product Overview

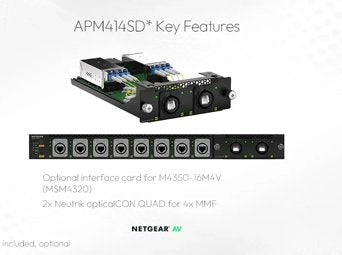

The NETGEAR APM414SD-10000S is a modular port card for M4350 series AV and IT managed switches, built for short-distance multimode fiber connectivity. It provides two Neutrik opticalCON QUAD connectors that support four multimode fiber (MMF) transceivers at 10G or 25G. The locking opticalCON connectors make it well suited to AV-over-IP fiber runs within a building, venue, or production facility. It is part of NETGEAR's M4350 modular interface card family.
Product Description
The APM414SD-10000S expands a compatible M4350 series switch with two Neutrik opticalCON QUAD connectors carrying four multimode fiber transceivers at 10G or 25G. Multimode fiber is the short-distance option in NETGEAR's M4350 port card lineup, providing high-bandwidth AV-over-IP and IT links across the typical distances found inside a commercial building or broadcast facility. The rugged, locking opticalCON connectors are designed for live production and permanent installs where cable security and repeated mating cycles matter.
As a NETGEAR M4350 interface card, the APM414SD-10000S is managed entirely through the host switch, including the AV-focused web GUI and the Engage Controller, keeping configuration consistent across an AV-over-IP system. The modular design lets you mix short-distance multimode, long-distance single-mode, and copper cards across a deployment as the topology requires. Browse the full NETGEAR switch collection at Creation Networks for compatible M4350 switches, port cards, and transceivers.
Key Features
- Two Neutrik opticalCON QUAD connectors — The card provides two locking opticalCON QUAD connectors carrying four multimode fiber transceivers.
- Multimode fiber for short distance — MMF support delivers high-bandwidth AV links across distances typical inside a building or facility.
- 10G and 25G operation — Each fiber path operates at 10G or 25G for high-bandwidth AV-over-IP and IT traffic.
- Rugged locking connectors — Neutrik opticalCON QUAD connectors are built for live production and permanent installs requiring secure, repeated mating.
- Modular M4350 design — The card installs in a compatible M4350 switch slot to tailor connectivity to the deployment.
- Managed through the host switch — Configuration is handled by the M4350 AV web GUI, IT GUI, and Engage Controller for consistent management.
Typical Applications
- Broadcast studio
- Auditorium
- House of worship
- Commercial meeting space
- Multi-purpose room
Technical Specifications
| Part Number | APM414SD-10000S |
| Type | M4350 modular interface card |
| Connectors | 2 x Neutrik opticalCON QUAD |
| Fiber Type | Multimode fiber (MMF), short distance |
| Transceivers | 4 x MMF transceivers |
| Speeds | 10G / 25G |
| Compatibility | NETGEAR M4350 series modular slot |
Specifications sourced from the NETGEAR M4350 series datasheet.
Frequently Asked Questions
What is the difference between the APM414SD and APM414LD?
The APM414SD uses multimode fiber (MMF) for shorter runs, while the APM414LD uses single-mode fiber (SMF) for long-distance links. Choose SD for typical in-building distances.
Which switches is the APM414SD-10000S compatible with?
It installs in the modular slot of compatible NETGEAR M4350 series switches. Confirm slot availability and support for your specific model before ordering.
Are transceivers included?
The card provides the opticalCON QUAD connectors for up to four multimode transceivers. Confirm transceiver requirements separately for your link distance and speed.
How is the card installed?
The card seats in the host switch's modular slot. Follow the M4350 installation guide and confirm whether your model requires power-down before installation.
Why use Neutrik opticalCON connectors?
The locking opticalCON QUAD connectors are rugged and secure, which suits live production, broadcast, and permanent AV installs that demand reliable, repeatable fiber connections.
Does Creation Networks help with selection and integration?
Yes. Our team can confirm compatibility with your M4350 switch and advise on transceivers and fiber for your link distances. Contact Creation Networks for assistance.
