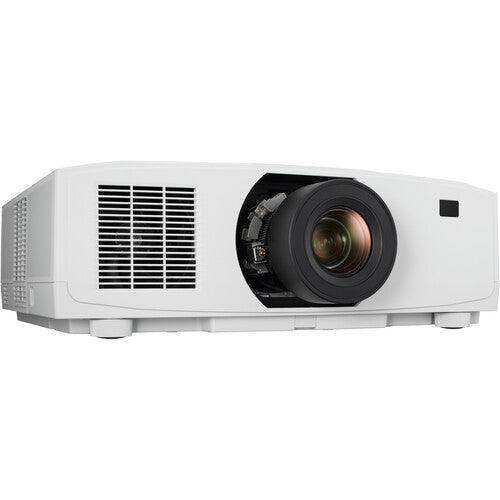

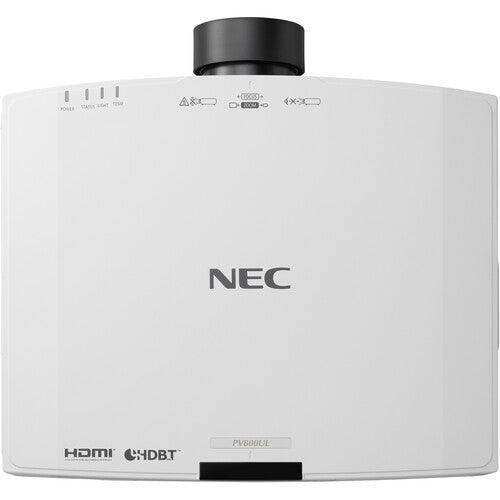

Sharp NP-PV800UL-W1 – 8,000-Lumen WUXGA Laser 3LCD Installation Projector (White)

Product Overview

The Sharp NP-PV800UL-W1 is a white-cabinet, 8,000-lumen (center: 8,300 lm) WUXGA laser 3LCD advanced professional installation projector for higher education and corporate environments. The PV series features a sealed optical engine providing HDR10-capable 4K-ready processing, a 20,000-hour laser lifespan, and the ability to accept optional motorized zoom or ultra-short throw lenses from the NP-series. Native support for AMX Beacon, Crestron RoomView, and Extron XTP makes this projector suitable for professionally managed conference rooms, training rooms, and multi-purpose spaces. The white cabinet is well-suited to ceiling-mount installations in educational and corporate venues.

Product Description

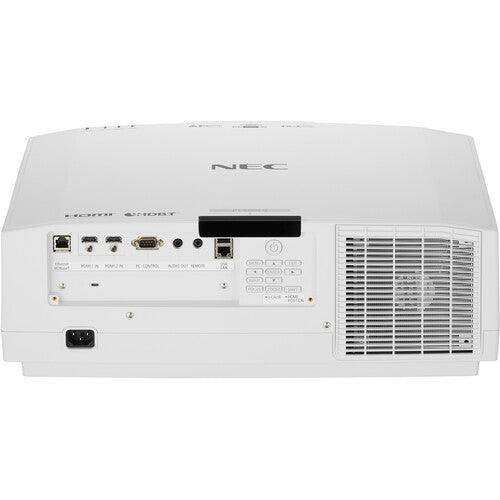

The NP-PV800UL-W1 uses a WUXGA 1920x1200 3LCD panel with a 3,000,000:1 dynamic contrast ratio and accepts HDR10 4K input. HDBaseT input provides single-cable delivery of video, audio, Ethernet, and control signals. The projector operates at 490W in normal mode with dual HDMI, RJ-45, and USB connectivity. The no-lens body is compatible with NP-series motorized zoom lenses from 0.60:1 to 5.93:1 throw ratio, as well as the NP44ML ultra-short throw lens. A 5-year InstaCare warranty with next-business-day exchange provides end-user assurance for commercial deployments.

Key Features

• 8,000 Lumens (8,300 Center) — Adequate brightness for medium conference rooms, training rooms, and controlled-light commercial spaces.
• WUXGA 1920x1200 Native Resolution — Maximum 4K 4096x2160 input via Sharp’s scaling chip.
• HDR10 Support — High dynamic range input processing across all digital inputs.
• 20,000-Hour Laser Life — No lamp replacement required over the operational lifespan.
• No-Lens Configuration — Compatible with NP40ZL, NP41ZL, NP43ZL, NP44ML, and NP50ZL motorized and ultra-short throw lenses.
• HDBaseT Input — Single-cable uncompressed HD video, audio, Ethernet, and control delivery.
• 490W Normal Mode Operation — Lower power draw than PA series models at equivalent brightness levels.
• Control System Integration — AMX Beacon, Crestron RoomView, Extron XTP, PJ Link; RS-232, IR, RJ-45, USB 2.0.
• 3,000,000:1 Dynamic Contrast — Preserves shadow detail for mixed presentation and video content.
• White Cabinet — Suited for ceiling-mount installations in educational and corporate venues.
• 5-Year InstaCare Warranty — 5-year or 20,000-hour parts and labor with next-business-day exchange.

Typical Applications

• Conference room
• Training room
• Boardroom
• Commercial meeting space
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Does the NP-PV800UL-W1 include a lens?

No. Compatible NP-series lenses include the NP40ZL, NP41ZL, NP43ZL, NP44ML ultra-short throw, and NP50ZL motorized zoom options.

What is the difference between the PV800UL and PA804UL series?

The PV series is a mid-range installation platform with a smaller chassis (24.7 lbs vs. heavier PA series bodies) and somewhat simplified lens compatibility. The PA series offers additional inputs including 3G-SDI and a more extensive motorized lens lineup.

What control systems are supported?

AMX Beacon, Crestron RoomView, Extron XTP, and PJ Link are natively supported, along with RS-232, IR, and RJ-45 control paths.

What is the warranty?

Registered owners receive 5-year or 20,000-hour parts and labor with Sharp InstaCare next-business-day exchange.
