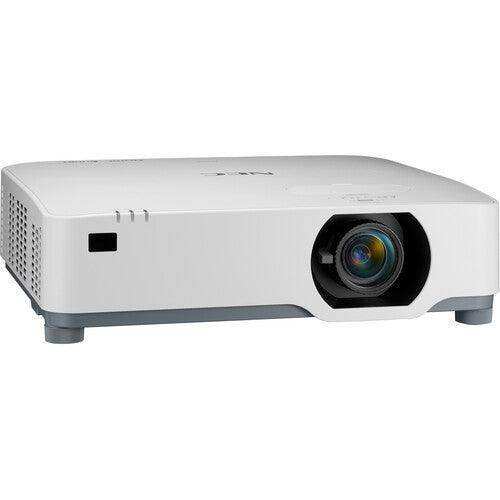

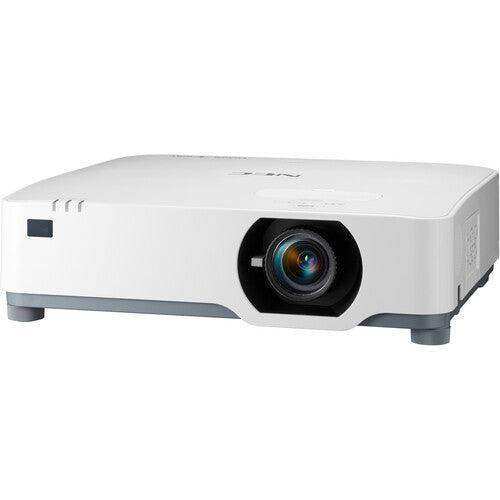

Sharp NP-P547UL – 5,400-Lumen WUXGA LCD Laser Installation Projector

Product Overview

The Sharp NP-P547UL is a 5,400-lumen WUXGA LCD laser installation projector designed for conference rooms, meeting spaces, and classrooms that prioritize quiet operation and low maintenance. Operating at just 22 dB in ECO mode, the P547UL is among the quietest installation projectors available and is suited for occupied meeting environments. The IPX5-sealed, filter-free design eliminates periodic maintenance, and the laser phosphor light source delivers 20,000 hours of continuous operation at 277W in normal mode. Optional WiFi enables the embedded MultiPresenter function for wireless screen sharing across up to 16 simultaneous devices.

Product Description

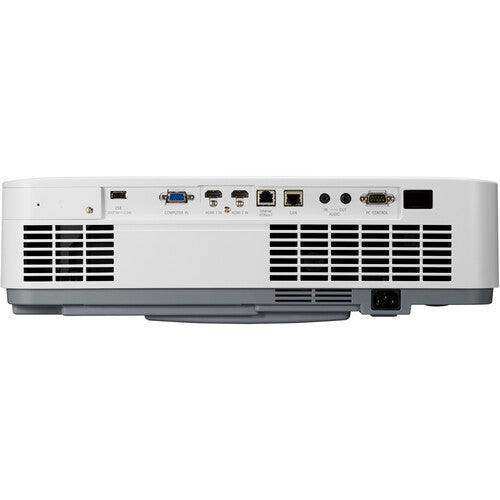

The P547UL uses a 0.64" LCD panel delivering WUXGA 1920x1200 native resolution with a 1.23–2.0:1 throw ratio (1.6x zoom), supporting image sizes from 30 to 300 inches. Connectivity includes 2x HDMI, 1x VGA, 1x HDBaseT for AV and control, USB-A, and 3.5mm audio in/out. The built-in 20W speaker supports self-contained audio output. 4K input at 30Hz is accepted with upscaling. The 360-degree installation capability including portrait mode supports non-standard mounting for digital signage and creative display applications. The P547UL is the 5,400-lumen variant of the P-series alongside the 6,200-lumen P627UL.

Key Features

• 5,400 Lumens — Appropriate brightness for conference rooms and meeting spaces with controlled ambient light.
• IPX5-Sealed Filter-Free Design — No periodic cleaning or filter maintenance required.
• 22 dB ECO Mode — Near-silent operation for occupied meeting rooms and classrooms.
• 20,000-Hour Laser Lifespan — No lamp replacement throughout the operational life.
• 360° Installation with Portrait Mode — Flexible mounting for digital signage and non-standard orientations.
• 1.23–2.0:1 Throw Ratio — Manual lens shift and 1.6x zoom for installation versatility.
• 4K Input at 30Hz — Accepts 4K signals upscaled to WUXGA.
• HDBaseT Input — Single-cable AV and control delivery.
• Optional WiFi with MultiPresenter — Wireless screen sharing for up to 16 devices simultaneously.
• Built-In 20W Speaker — Integrated audio for self-contained meeting room deployments.
• 277W Normal Mode — Low power consumption for continuous commercial use.

Typical Applications

• Conference room
• Commercial meeting space
• Huddle room
• Training room
• Digital signage

Technical Specifications

Frequently Asked Questions

What is the difference between the P547UL and P627UL?

The P627UL delivers 6,200 lumens vs. 5,400 lumens on the P547UL. All other features, dimensions, and connectivity are shared. Choose based on ambient light conditions in the installation space.

Does the P547UL support wireless presentation?

With an optional WiFi module, the embedded MultiPresenter function supports wireless screen sharing for up to 16 simultaneous devices across Windows, Mac, Android, and iOS platforms.

Can this projector be installed in portrait mode?

Yes. The P547UL supports 360-degree installation including portrait mode for digital signage and creative display orientations.

What maintenance is required?

None periodic. The IPX5-sealed, filter-free design and 20,000-hour laser source eliminate both filter cleaning and lamp replacement cycles.

Is HDR supported?

The P547UL does not list HDR support in its specification. The P627UL includes HDR input support.
