Sharp NP-PV800UL-W1-41ZL – 8,000-Lumen WUXGA 3LCD Laser Projector with NP41ZL Lens (White)

Product Overview

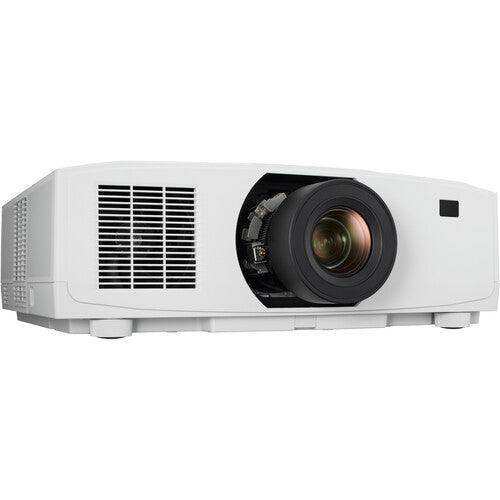

The Sharp NP-PV800UL-W1-41ZL is a white-cabinet, 8,000-lumen (center: 8,300 lm) WUXGA laser 3LCD installation projector bundled with the NP41ZL motorized zoom lens (1.30–3.02:1 throw ratio), providing a complete ready-to-install projection package for conference rooms, training rooms, and medium-to-large commercial spaces. This commercial-grade projector features HDR10 support, a 20,000-hour sealed laser light source, and native integration with AMX, Crestron, and Extron control systems. The white cabinet suits ceiling-mount installations in academic and corporate environments.

Product Description

The NP-PV800UL-W1-41ZL pairs the PV800UL-W1 white-cabinet body with the NP41ZL motorized zoom lens, which provides a 2.3x optical zoom with motorized remote focus and zoom adjustment after installation. The WUXGA 1920x1200 3LCD panel delivers 3,000,000:1 dynamic contrast and HDR10 support. Maximum image diagonal reaches 41.67 ft. HDBaseT input provides single-cable AV and control delivery, with dual HDMI and RJ-45 rounding out the connectivity. The projector operates at 490W in normal mode and comes with a 5-year InstaCare warranty with next-business-day exchange.

Key Features

• 8,000 Lumens (8,300 Center) — Sufficient brightness for medium conference rooms and training rooms.
• NP41ZL Motorized Zoom Lens Included — 1.30–3.02:1 throw ratio; 2.3x optical zoom with motorized remote zoom and focus adjustment.
• WUXGA 1920x1200 Native Resolution — Maximum 4K 4096x2160 input with HDR10 support.
• 3,000,000:1 Dynamic Contrast — Accurate rendering of mixed presentation and video content.
• 20,000-Hour Laser Life — No lamp replacement required.
• HDBaseT Input — Single-cable uncompressed HD video, audio, Ethernet, and control delivery.
• Maximum Image Size 41.67 ft diagonal — Supports large-screen installations in auditoriums and multi-purpose rooms.
• 490W Normal Mode — Efficient power consumption relative to output brightness.
• Control System Integration — AMX Beacon, Crestron RoomView, Extron XTP, PJ Link; RS-232, IR, RJ-45.
• White Cabinet — Suited for ceiling-mount in educational and corporate venues.
• 5-Year InstaCare Warranty — 5-year or 20,000-hour parts and labor with next-business-day exchange.

Typical Applications

• Conference room
• Training room
• Commercial meeting space
• Multi-purpose room
• Auditorium

Technical Specifications

Frequently Asked Questions

What lens is included?

The NP41ZL motorized zoom lens with a 1.30–3.02:1 throw ratio and 2.3x optical zoom. Minimum focal length is 21.80 mm, maximum is 49.80 mm.

What is the difference between the -W1-41ZL and -W1 models?

The -W1-41ZL includes the NP41ZL lens. The NP-PV800UL-W1 ships without a lens for installations requiring a different throw ratio.

What control systems are supported?

AMX Beacon, Crestron RoomView, Extron XTP, and PJ Link are natively supported, along with RS-232, IR, and RJ-45 control paths.

What is the warranty?

Registered owners receive 5-year or 20,000-hour parts and labor with Sharp InstaCare next-business-day exchange.
