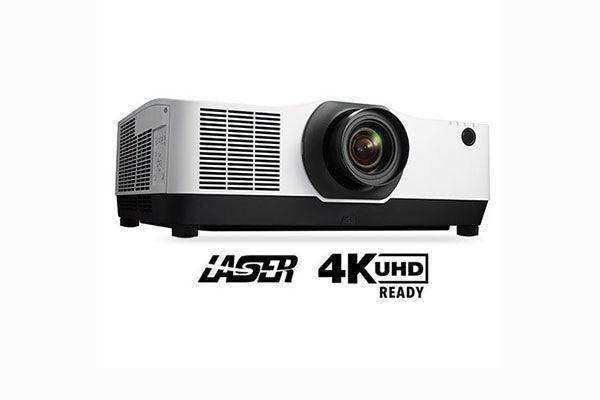

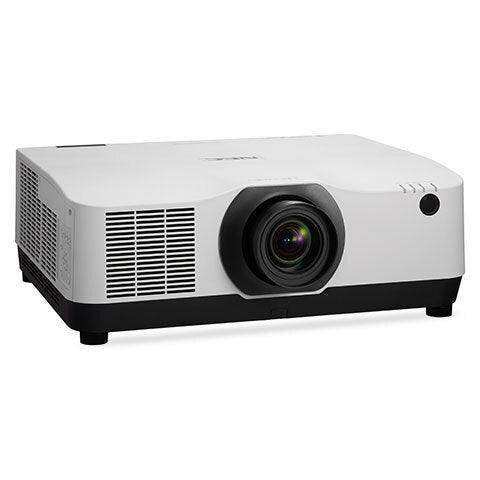

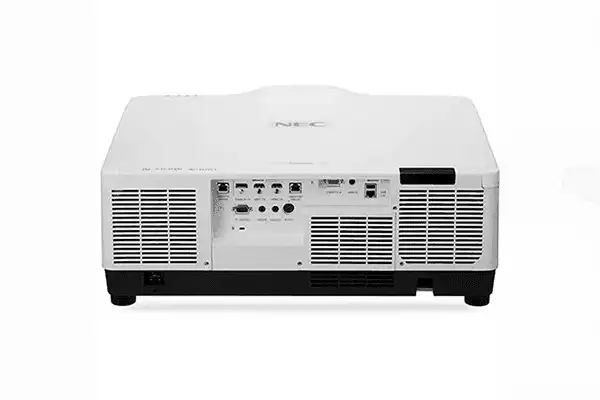

Sharp NP-PA804UL-W-41 – 8,200-Lumen WUXGA Laser 3LCD Projector with Lens (White)

Product Overview

The Sharp NP-PA804UL-W-41 is a white-cabinet, 8,200-lumen WUXGA laser 3LCD installation projector bundled with the NP41ZL motorized zoom lens (1.30–3.02:1 throw ratio). Built for corporate, higher education, and museum installations, this commercial-grade projector features a sealed LCD cooling system for filter-free operation, built-in edge blending and stacking, and HDBaseT connectivity for simplified cabling. The PA series sealed optical engine delivers near-silent operation and 20,000 hours of maintenance-free use. For AV integrators seeking a ready-to-install mid-range laser projector with lens included, the NP-PA804UL-W-41 provides the hardware and control flexibility needed for demanding conference room and auditorium deployments.

Product Description

The NP-PA804UL-W-41 pairs the PA804UL white cabinet body with the NP41ZL motorized zoom lens, making it a complete projection solution for medium-throw conference rooms, training rooms, and commercial meeting spaces. HDBaseT input supports uncompressed HD video, audio, Ethernet, and control signals over a single cable. The separate HDBaseT Repeater port enables cascading for multi-projector edge blending and stacking. TileMatrix supports 4Kx2K display using four projectors via the HDBaseT Repeater. Integration software includes Crestron RoomView, AMX Beacon, Extron XTP, and PJ Link, alongside ProAssist for network-based image management.

Key Features

• 8,200 Lumens — Sufficient brightness for medium-to-large conference rooms and training rooms in controlled ambient light.
• NP41ZL Motorized Zoom Lens Included — 1.30–3.02:1 throw ratio with motorized zoom and focus for post-installation adjustment.
• Sealed LCD Cooling System — Filter-free design with near-silent operation; no periodic filter maintenance required.
• WUXGA 1920x1200 Native Resolution — 4K input support up to 4096x2160 via Sharp’s scaling chip with HDR10 and BT.2020.
• Built-In Edge Blending and Stacking — Multi-projector setups configurable without external processing equipment.
• HDBaseT Input and Repeater — Single-cable AV/control delivery; repeater enables cascaded multi-projector signal chains.
• TileMatrix — Supports seamless 4Kx2K display using four PA804UL units via HDBaseT Repeater.
• Control System Integration — Crestron RoomView, AMX Beacon, Extron XTP, PJ Link; RS-232, IR, RJ-45.
• 20,000-Hour Laser Life — Laser light source eliminates lamp replacement costs over the projector’s operational life.
• 3,000,000:1 Dynamic Contrast — Accurate image depth for both bright presentations and dark video content.
• 5-Year InstaCare Warranty — 5-year or 20,000-hour parts and labor with next-business-day exchange.

Typical Applications

• Conference room
• Training room
• Boardroom
• Multi-purpose room
• House of worship
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

What lens is included with the NP-PA804UL-W-41?

The NP41ZL motorized zoom lens with a 1.30–3.02:1 throw ratio is included. Additional NP-series lenses are available separately for different throw distances.

What is the difference between the -W-41 and -W models?

The -W-41 includes the NP41ZL lens. The NP-PA804UL-W (no -41 suffix) ships without a lens, allowing integrators to select a lens appropriate for their specific installation geometry.

Does the PA804UL support edge blending natively?

Yes. Built-in edge blending and stacking are included. Multi-projector alignment is managed via ProAssist software over the network.

What is the warranty?

Registered owners receive 5-year or 20,000-hour parts and labor coverage with Sharp InstaCare next-business-day exchange.

Is this projector compatible with HDBaseT extenders?

Yes. The HDBaseT input accepts AV and control signals from compliant extenders. The HDBaseT Repeater output enables downstream signal distribution to additional units.
