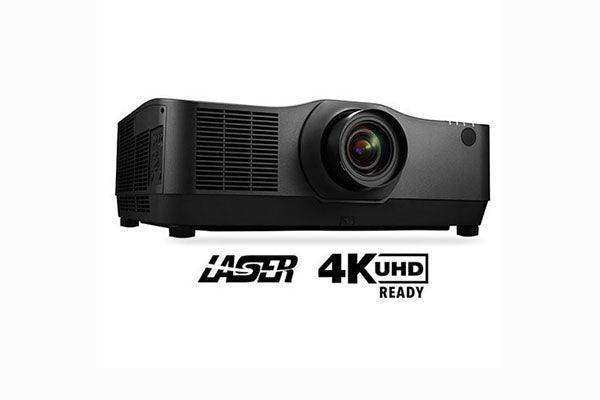

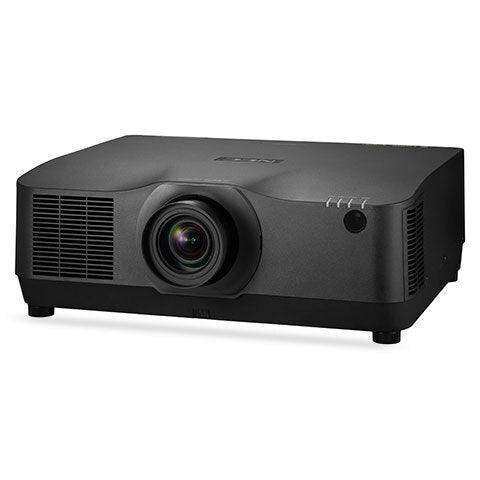

Sharp NP-PA804UL-B-41 – 8,200-Lumen WUXGA Laser 3LCD Projector with Lens (Black)

Product Overview

The Sharp NP-PA804UL-B-41 is a black-cabinet, 8,200-lumen WUXGA laser 3LCD installation projector bundled with the NP41ZL motorized zoom lens, providing a complete projection solution for conference rooms, training rooms, and commercial meeting spaces. Part of the professional PA series, the projector features a sealed LCD cooling system for filter-free and near-silent operation, built-in edge blending and stacking, and HDBaseT connectivity. The 20,000-hour sealed laser eliminates lamp replacement, and native Crestron, AMX, Extron, and PJ Link integration supports professionally managed AV environments. The black cabinet suits venues where dark equipment is specified.

Product Description

The NP-PA804UL-B-41 pairs the PA804UL black-cabinet body with the NP41ZL motorized zoom lens (1.30–3.02:1 throw ratio), providing motorized remote control of zoom and focus after installation. HDBaseT input supports uncompressed HD over a single cable, with the HDBaseT Repeater enabling cascaded multi-projector configurations for edge blending and stacking. TileMatrix supports 4Kx2K seamless displays using four units. ProAssist software handles network-based multi-projector calibration and image management. The projector accepts 4K input up to 4096x2160 with HDR10 and BT.2020 compatibility on all digital inputs.

Key Features

• 8,200 Lumens — Effective brightness for medium-size conference rooms and training rooms in controlled ambient light.
• NP41ZL Motorized Zoom Lens Included — 1.30–3.02:1 throw ratio with motorized zoom and focus for remote post-installation adjustment.
• Sealed LCD Cooling — Filter-free, near-silent operation; no periodic filter or lamp maintenance.
• WUXGA 1920x1200 Native Resolution — Supports 4K input up to 4096x2160 with HDR10 and BT.2020.
• Built-In Edge Blending and Stacking — Native multi-projector array capability without external processing.
• HDBaseT Input and Repeater — Single-cable AV/control delivery with downstream cascading for multi-projector arrays.
• TileMatrix — Four-projector seamless 4Kx2K display support.
• Control System Integration — Crestron RoomView, AMX Beacon, Extron XTP, PJ Link; RS-232, IR, RJ-45.
• 20,000-Hour Laser Life — No lamp replacement over the operational life of the projector.
• Black Cabinet — Suited for auditoriums, boardrooms, and venues preferring dark-colored equipment.
• 5-Year InstaCare Warranty — 5-year or 20,000-hour parts and labor with next-business-day exchange.

Typical Applications

• Boardroom
• Conference room
• Training room
• Multi-purpose room
• House of worship
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

What lens is included?

The NP41ZL motorized zoom lens with a 1.30–3.02:1 throw ratio. Additional NP-series lenses are available separately for other throw distances.

What is the difference between the -B-41 and -B models?

The -B-41 includes the NP41ZL lens. The NP-PA804UL-B ships without a lens for integrators who need a different optic.

What control systems are supported?

Crestron RoomView, AMX Beacon, Extron XTP, and PJ Link are natively supported, along with RS-232, IR, and RJ-45 serial control.

What is the warranty?

Registered owners receive 5-year or 20,000-hour parts and labor coverage with Sharp InstaCare next-business-day exchange.
