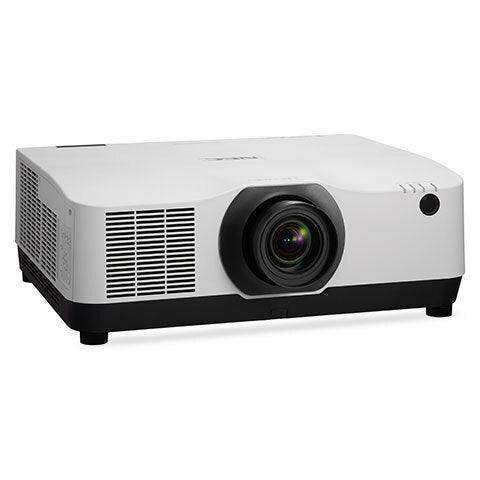

Sharp NP-PA804UL-W – 8,200-Lumen WUXGA Laser 3LCD Projector, No Lens (White)
Sharp NP-PA804UL-W – 8,200-Lumen WUXGA Laser 3LCD Projector, No Lens (White) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sharp NP-PA804UL-W – 8,200-Lumen WUXGA Laser 3LCD Projector, No Len...
Product Overview
The Sharp NP-PA804UL-W is a white-cabinet, 8,200-lumen WUXGA laser 3LCD installation projector in the no-lens configuration, designed for higher education, corporate, and commercial AV environments. The PA series sealed LCD cooling system delivers filter-free, near-silent operation with a 20,000-hour laser lifespan, and built-in edge blending and stacking support multi-projector installations. HDBaseT and dual HDMI 2.0 inputs cover the full range of commercial signal sources, and native integration with Crestron, AMX, Extron, and PJ Link supports controlled environments. The no-lens configuration allows AV integrators to specify an NP-series motorized zoom lens based on the exact throw distance and screen size of the installation.
Product Description
Available in white cabinet, the NP-PA804UL-W is built around a WUXGA 1920x1200 3LCD panel accepting 4K input via Sharp’s proprietary video processing chip. The HDBaseT input delivers uncompressed HD video, audio, Ethernet, and control over a single cable run, with a separate HDBaseT Repeater port for downstream signal distribution in multi-projector arrays. TileMatrix enables seamless 4Kx2K display using four units. ProAssist software provides network-based image alignment and brightness calibration across multiple projectors in large-venue deployments. Compatible motorized lenses span throw ratios from 0.60:1 to 5.93:1.
Key Features
- 8,200 Lumens — Adequate brightness for medium conference rooms, training rooms, and controlled-light commercial spaces.
- No-Lens Configuration — Lens sold separately; compatible with NP40ZL, NP41ZL, NP43ZL, NP44ML, NP50ZL motorized zoom and ultra-short throw options.
- Sealed LCD Cooling — Filter-free design, near-silent operation, no periodic maintenance required.
- WUXGA 1920x1200 — 4K-ready input processing with HDR10 and BT.2020 support on all digital inputs.
- Built-In Edge Blending and Stacking — Multi-projector arrays without external blending hardware.
- HDBaseT Input and Repeater — Simplified single-cable AV/control installation with downstream cascading.
- TileMatrix — Four-projector 4Kx2K seamless display support via HDBaseT Repeater.
- Control System Integration — Crestron RoomView, AMX Beacon, Extron XTP, PJ Link; RS-232, IR, RJ-45.
- 20,000-Hour Laser Life — No lamp replacement throughout the projector’s operational life.
- 3,000,000:1 Dynamic Contrast — Supports accurate rendering of both high-brightness presentations and dark content.
- 5-Year InstaCare Warranty — 5-year or 20,000-hour parts and labor with next-business-day exchange.
Typical Applications
- Conference room
- Training room
- Boardroom
- Multi-purpose room
- Commercial meeting space
Technical Specifications
| Specification | Value |
|---|---|
| Native Resolution | WUXGA 1920x1200 |
| Maximum Resolution | 4K 4096x2160 |
| Brightness | 8,200 lumens |
| Contrast Ratio | 3,000,000:1 Dynamic |
| Lens | Not included; NP-series compatible |
| Cabinet Color | White |
| Light Source Life | 20,000 hours |

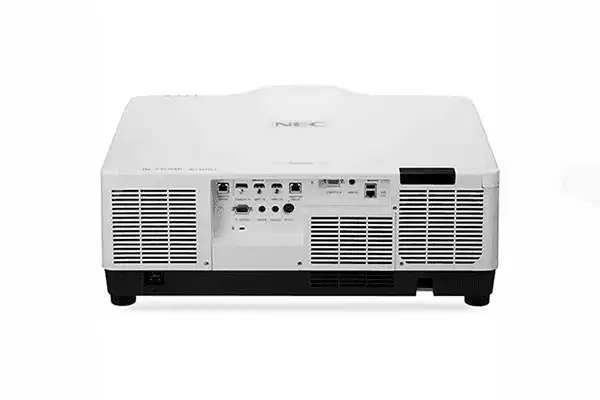

| Inputs | 2x HDMI 2.0 (HDCP 1.4/2.2), 1x HDBaseT, 1x HDBaseT Repeater |
| Control | RS-232, IR, RJ-45, PJ Link |
| Warranty | 5 years / 20,000 hours with InstaCare exchange |
Frequently Asked Questions
- Which lens options are compatible with the NP-PA804UL-W?
- Compatible NP-series lenses include the NP40ZL (0.79–1.11:1), NP41ZL (1.30–3.02:1), NP43ZL (2.99–5.93:1), NP44ML ultra-short throw (0.32:1), and NP50ZL (0.60–0.76:1). Lens selection is based on throw distance and screen dimensions.
- What is the difference between the NP-PA804UL-W and NP-PA804UL-W-41?
- The NP-PA804UL-W-41 includes the NP41ZL motorized zoom lens. The NP-PA804UL-W ships without a lens, giving integrators the flexibility to select the appropriate optic for their space.
- Does this projector support 4K signal input?
- Yes. HDR10 and BT.2020 4K signals are accepted on all digital inputs and processed via Sharp’s scaling chip. The native display panel outputs at WUXGA 1920x1200.
- What is the warranty?
- Registered owners receive 5-year or 20,000-hour parts and labor coverage with Sharp InstaCare next-business-day exchange.
