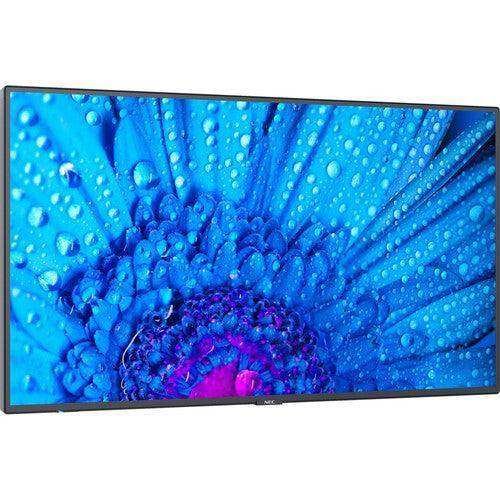

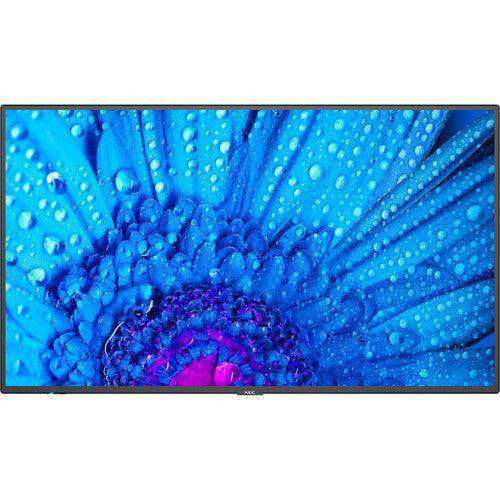

Create pixel perfect imagery with the high-end panel quality of the new fully professional large sized NEC M series large format displays. By implementing premium features and focusing on creating impressionable presentation and digital signage experiences, the M series gives customers and elite display option. With the proprietary SpectraView Engine capabilities, these displays offer more color capabilities than ever before. On top of that, these products allow customers the modular capabilities to customize their product based on their needs and applications. The new series contain a full metal mechanical chassis, allowing for a more robust design necessary for commercial applications while maintaining the attractive aesthetics that allow the focus of onlookers to be on what matters - the message. Robust connectivity options allow customers to have up-to-date connectivity options while also allowing for enhanced daisy chain capabilities when tying displays together for video or control signal distribution. The NEC M series boasts 500 cd/m² brightness which is ideal for a majority of high end presentaion applications in corporate, command and control, higher education and healthcare environments when high-end and feature rich displays are necessary to convey important messaging.
Features
- UHD 4K (3840 x 2160) Resolution
- HDR10 & HLG Support
- IPS Direct-Lit LED Panel
- AMX Support & Crestron Connected
- 2 x HDMI | 2 x DisplayPort Inputs
- ≥ 8000:1 Typical Contrast Ratio
- 500 nits Brightness | 28% Haze
- Digital Signage Support | 10x10 Matrix
- 24/7 Duty Cycle | Landscape & Portrait
- Multi-Picture Mode
Specs
Display
Screen Size (Diagonal) |
75"
|
Resolution |
3840 x 2160
|
Supported Display Resolutions |
Maximum: 4096 x 2160 / 60 Hz
|
Panel Type |
IPS-Type LCD
|
Bit Depth / Color Support |
10-Bit (1.07 Billion Colors)
|
HDR Compatibility |
HDR10, Hybrid Log Gamma
|
Maximum Brightness |
500 nits / cd/m2
|
Viewing Angle (H x V) |
178 x 178°
|
Screen Area |
64.95 x 36.53" / 1649.66 x 927.94 mm
|
Aspect Ratio |
16:9
|
Contrast Ratio |
8000:1
|
Refresh Rate |
60 Hz
|
Horizontal Frequency |
15 to 135 kHz
|
Vertical Frequency |
23 to 76 Hz
|
Dot Pitch |
0.43 x 0.43 mm
|
Pixels Per Inch (ppi) |
59 ppi
|
Backlighting Technology |
Direct LED
|
Connectivity
Primary Connectivity Location |
Display
|
Input Ports |
2 x HDMI 2.0 – Audio, Video (Bottom) 2 x DisplayPort 1.4 – Audio, Video (Bottom)
|
Output Ports |
1 x HDMI 2.0 – Audio, Video 1 x DisplayPort 1.4 – Audio, Video 1 x 1/8" / 3.5 mm – Audio 1 x Speaker Terminal – Audio
|
USB I/O |
1 x USB-A Unspecified Version (Control/Power) 1 x USB-B Unspecified Version (Control/Power) 1 x USB-A Unspecified Version (Service)
|
Ethernet I/O |
1 x RJ45 10/100 Mb/s Ethernet
|
Control I/O |
IP, IR via RJ45 RS-232C via DE-9/DB-9 IR via 1/8" / 3.5 mm Input
|
Wi-Fi |
No
|
Bluetooth |
No
|
Digital Media Slot |
No
|
Number of OPS/Expansion Slots |
1
|
General
TV Tuner |
Yes - ATSC
|
Display Orientation |
Landscape, Portrait
|
HDCP Support |
Yes
|
Maximum Multiple Display Configuration |
10 x 10
|
3D |
No
|
Ambient Light Sensor |
Yes
|
Surface
Surface Treatment |
Anti-Glare
|
Haze Level |
28%
|
Audio
Built-In Speakers |
Yes, 2 x 10 W
|
Speaker Configuration |
2-Channel
|
External Speaker Output |
2 x 15 W
|
Convenience
Built-In Mic |
No
|
NFC |
No
|
Multi-Input Support (PIP/PBP) |
Picture-in-Picture (PIP), Picture-by-Picture (PBP)
|
Electrical
Power Consumption |
Typical: 205.0 W Maximum: 410.0 W Standby: 0.5 W
|
AC Input Power |
100 to 240 VAC, 50 / 60 Hz at 2.0 to 4.9 A
|
Power Adapter Type |
Internal
|
Environmental
Operating Temperature |
32 to 72°F / 0 to 40°C
|
Storage Temperature |
-4 to 140°F / -20 to 60°C
|
Operating Humidity |
20 to 80% ()
|
Storage Humidity |
10 to 80% (Non-Condensing)
|
Physical
Wall Mounting |
600 x 400 mm
|
Environmental Protection |
No
|
IR Sensor |
Yes
|
Lock Slot |
No
|
Bezel Thickness |
14.3 mm (Right/Top/Left) 14.8 mm (Bottom)
|
Duty Cycle |
24 Hours / 7 Days
|
Dimensions |
66.2 x 37.8 x 3.3" / 1682.3 x 961.1 x 83.2 mm
|
Weight |
84.2 lb / 38.2 kg
|
