Sharp P435-IR – 43" 4K UHD Professional Display with IR Touch - Discontinued

Product Overview

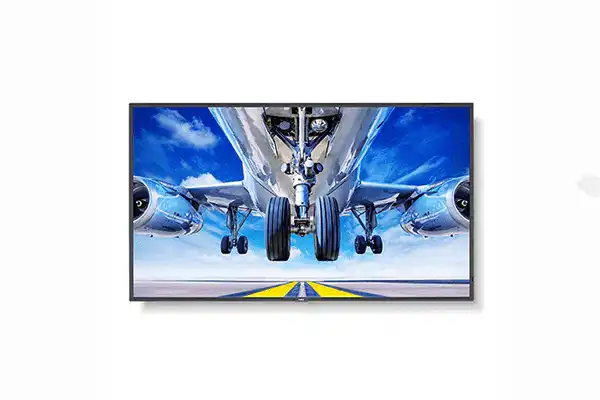

The Sharp NEC P435-IR is a 43-inch 4K UHD commercial touch display with factory pre-installed 10-point infrared (IR) touch behind clear tempered glass, built for interactive digital signage, wayfinding, and corporate meeting spaces. Its wide color gamut panel, 700 cd/m2 brightness, and SpectraView Engine color processing deliver accurate, vivid imagery for high-end commercial installations. With a 24/7-rated metal chassis and modular compute options, this interactive commercial display suits retail, museums, command and control rooms, and corporate environments.

Product Description

The P435-IR builds on the NEC P Series professional display platform, adding tempered-glass infrared touch for a durable interactive surface that stands up to public use. The 3840 x 2160 wide color gamut panel, paired with Sharp NEC's proprietary SpectraView Engine, produces a broader range of accurate colors than conventional commercial panels — ideal where brand color fidelity and image quality matter, such as museum exhibits and flagship retail digital signage. With 700 cd/m2 brightness and HDR compatibility, content stays legible in bright lobbies and storefront environments.

The fully commercial design includes a full metal mechanical chassis, thermal protection, internal temperature sensors with self-diagnostics, and fan-based cooling for dependable 24/7 operation in landscape or portrait orientation. For all-in-one interactive signage, the display accepts Intel Smart Display Module (SDM-S or SDM-L) compute modules and supports an optional Raspberry Pi Compute Module 4 with NEC MediaPlayer (MPi4E), eliminating external player hardware. AV system integration is straightforward: full bidirectional control over RS-232C and LAN In/Out connects the display to Crestron, Extron, and network management platforms, and the free NaViSet Administrator 2 software centralizes administration of large display fleets. Enhanced daisy chain through HDMI and DisplayPort Out connections simplifies multi-display video distribution, Multi Picture Mode displays several sources at once without additional hardware, and automatic input failover switches to a secondary or tertiary source if the primary feed fails. The P435-IR is Energy Star 8.0 certified, Cisco certified, and covered by a full 5-year professional warranty.

Key Features

• 10-Point IR Touch Pre-Installed — Clear tempered glass infrared touch arrives factory-fitted and ready for interactive deployment.
• 4K UHD Wide Color Gamut Panel — The 3840 x 2160 resolution and expanded color range produce vivid, lifelike signage content.
• SpectraView Engine — Proprietary color processing keeps imagery accurate and consistent across installations.
• 700 cd/m2 Brightness with HDR — High output captures attention in bright commercial environments.
• 24/7 Commercial Rating — Thermal protection, temperature sensors, self-diagnostics, and fan cooling support continuous operation.
• Intel SDM and Raspberry Pi CM4 Ready — Internal compute modules create an all-in-one interactive signage player.
• Full Bidirectional Control — RS-232C and LAN In/Out integrate the display with commercial AV control systems.
• Enhanced Daisy Chain — HDMI and DisplayPort Out connections distribute video and control to additional displays.
• Multi Picture Mode and Failover — Display multiple simultaneous sources and switch automatically to backup inputs.
• Landscape and Portrait Orientation — Flexible mounting supports kiosks, directories, and menu board installations.
• NaViSet Administrator 2 — Free management software simplifies administration of larger display estates.
• 5-Year Professional Warranty — Full commercial coverage; Energy Star 8.0 and Cisco certified.

Typical Applications

• Conference room interactive displays
• Commercial meeting space collaboration
• Huddle room touch screens
• Government space wayfinding and directories
• Training room interaction
• Multi-purpose room signage kiosks

Technical Specifications

Frequently Asked Questions

How does the P435-IR differ from the P435-PT?

The P435-IR uses 10-point infrared touch behind clear tempered glass, a durable and cost-effective technology for kiosks and signage. The P435-PT uses 40-point PCAP touch with an anti-glare overlay for a smoother, tablet-like feel. Both share the same 43" 4K P Series wide color gamut panel.

Can the P435-IR operate around the clock?

Yes. The industrial-strength panel includes thermal protection, internal temperature sensors with self-diagnostics, and fan-based cooling rated for 24/7 commercial operation.

Does the P435-IR need an external media player for signage?

Not necessarily. It accepts Intel Smart Display Module (SDM-S/SDM-L) compute modules and supports the optional Raspberry Pi Compute Module 4 with NEC MediaPlayer, so playback hardware can be installed inside the display.

How do I integrate the P435-IR with a control system?

Full bidirectional control is available over RS-232C and LAN In/Out, supporting integration with Crestron, Extron, and similar AV control processors. NaViSet Administrator 2 provides free centralized fleet management.

Can multiple P435-IR displays be daisy chained?

Yes. Enhanced daisy chain capability through HDMI Out and DisplayPort Out (SST/MST) distributes video and control signals across multiple displays in a row or video wall layout.

What warranty is included?

The P435-IR carries a full 5-year professional warranty from Sharp NEC. Contact Creation Networks for project pricing and integration support.
