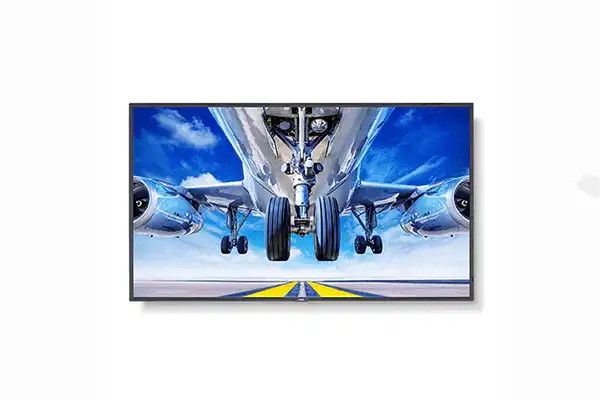

Sharp P435-PT – 43" 4K UHD Professional Display with PCAP Touch - Discontinued

Product Overview

The Sharp NEC P435-PT is a 43-inch 4K UHD commercial touch screen display built for interactive digital signage, wayfinding kiosks, and corporate meeting spaces. A factory-installed 40-point edge-to-edge PCAP touch overlay with anti-glare treatment delivers responsive, accurate interaction in high-traffic public environments. With a 700 cd/m2 wide color gamut panel, the SpectraView Engine, and a 24/7-rated industrial chassis, this professional touch display handles continuous commercial deployment in retail, museums, command and control, and corporate lobbies.

Product Description

The P435-PT pairs the NEC P Series premium commercial panel with pre-installed projected capacitive (PCAP) touch, giving AV integrators a turnkey interactive display for commercial installation. The wide color gamut 3840 x 2160 panel, driven by Sharp NEC's proprietary SpectraView Engine, reproduces accurate, vivid color that ordinary commercial panels cannot match — a meaningful advantage for brand-sensitive digital signage and museum exhibits. The 700 cd/m2 brightness rating with HDR compatibility keeps content legible in bright lobbies and storefronts.

Construction is fully commercial: a full metal mechanical chassis, thermal protection with internal temperature sensors, self-diagnostics, and fan-based cooling rated for 24/7 operation in either landscape or portrait orientation. Modularity is a core strength of the P Series — the display accepts Intel Smart Display Module (SDM-S or SDM-L) compute modules and supports an optional Raspberry Pi Compute Module 4 with NEC MediaPlayer (MPi4E), so a complete interactive signage player can live inside the display with no external boxes. For AV system integration, bidirectional external control over LAN or RS-232C ties the display into Crestron, Extron, and enterprise management platforms, while the free NaViSet Administrator 2 software manages large multi-display estates from one console. Enhanced daisy chain through HDMI and DisplayPort outputs simplifies video distribution across multiple screens, Multi Picture Mode shows several sources simultaneously without extra hardware, and input failover automatically switches to a backup source if the primary signal drops. The P435-PT is Energy Star 8.0 certified, Cisco certified, and backed by a full 5-year professional warranty.

Key Features

• 40-Point PCAP Touch Pre-Installed — Edge-to-edge projected capacitive touch with anti-glare overlay delivers accurate multi-user interaction out of the box.
• 4K UHD Wide Color Gamut Panel — The 3840 x 2160 resolution and expanded color range render lifelike imagery for premium signage.
• SpectraView Engine — Sharp NEC's proprietary color processing maintains accurate, consistent color across installations.
• 700 cd/m2 Brightness with HDR — High output keeps interactive content visible in bright retail and lobby environments.
• 24/7 Commercial Rating — Industrial-strength panel with thermal sensors, self-diagnostics, and fan cooling supports continuous operation.
• Intel SDM and Raspberry Pi CM4 Ready — Internal compute options create an all-in-one interactive signage player without external hardware.
• Full External Control — Bidirectional LAN and RS-232C control integrates with commercial AV control systems.
• Enhanced Daisy Chain — HDMI and DisplayPort outputs distribute video and control across multiple displays.
• Multi Picture Mode and Failover — Show multiple sources at once and switch automatically to backup inputs if a source fails.
• Landscape and Portrait Installation — Flexible orientation supports kiosks, wayfinding, and menu board layouts.
• NaViSet Administrator 2 — Free fleet management software eases administration of large display deployments.
• 5-Year Professional Warranty — Full commercial coverage protects long-term signage investments; Energy Star 8.0 and Cisco certified.

Typical Applications

• Conference room interactive presentations
• Commercial meeting space collaboration
• Huddle room touch displays
• Government space wayfinding and briefing
• Training room interaction
• Multi-purpose room signage and touch kiosks

Technical Specifications

Frequently Asked Questions

What is the difference between the P435-PT and the P435-IR?

The P435-PT uses projected capacitive (PCAP) touch with 40 touch points and an anti-glare glass overlay, which gives a smoother, tablet-like response preferred for kiosks and high-end interactive signage. The P435-IR uses infrared touch. Both are built on the same 43" 4K P Series panel.

Can the P435-PT run signage content without an external media player?

Yes. The display accepts Intel Smart Display Module (SDM-S or SDM-L) compute modules and supports the optional Raspberry Pi Compute Module 4 with NEC MediaPlayer, so content playback hardware installs inside the display.

Is the P435-PT rated for continuous 24/7 operation?

Yes. The industrial-strength panel includes thermal protection, internal temperature sensors with self-diagnostics, and fan-based cooling designed for round-the-clock commercial duty cycles.

How does the P435-PT integrate with AV control systems?

Bidirectional external control is available over LAN or RS-232C, allowing full integration with Crestron, Extron, and similar control processors for power, input, and monitoring. NaViSet Administrator 2 provides centralized fleet management at no cost.

Can I install the display in portrait orientation?

Yes. The P435-PT supports both landscape and portrait installation, making it suitable for wayfinding kiosks, directories, and menu boards.

What warranty comes with the P435-PT?

Sharp NEC includes a full 5-year professional display warranty. Contact Creation Networks for volume pricing and deployment assistance.
