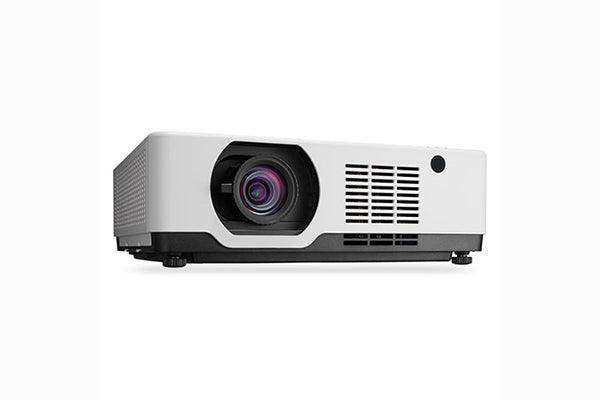

Sharp NP-PE506WL – 5,200-Lumen WXGA Laser LCD Installation Projector

Product Overview

The Sharp NEC NP-PE506WL is a 5,200-lumen WXGA laser projector built for classroom and conference room installation where brightness, color accuracy and low maintenance matter. Its 3LCD imaging engine, 20,000-hour laser light source and manual horizontal and vertical lens shift make it a dependable commercial projector for K-12 schools, higher education lecture rooms and small-to-medium business meeting spaces. With a 1.6x zoom lens and compact chassis, this laser LCD installation projector simplifies ceiling-mount deployment without specialized rigging.

Product Description

The NP-PE506WL belongs to Sharp NEC's Entry Installation Series, pairing a maintenance-free laser light source with LCD color fidelity at a budget-conscious price point for commercial AV integration. At 5,200 lumens it holds up in rooms with ambient light, projecting a bright image up to 300 inches diagonal for training rooms, multi-purpose rooms and house of worship overflow spaces. Native WXGA (1280 x 800) resolution in a 16:10 aspect ratio suits presentation content, while the projector accepts up to 4K@30Hz over HDMI using Sharp NEC's high-performance video processing and scaling chip.

Installation flexibility is a core strength: broad manual horizontal and vertical lens shift plus a 1.6x manual zoom give integrators generous placement latitude relative to the screen, and 360-degree rotation with portrait mode supports tilted, vertical and digital signage orientations. Built-in 16W audio delivers enough volume for most large classrooms and conference rooms without an external amplifier, and the RJ-45 LAN port enables network control and monitoring from a head-end rack. The 20,000-hour laser life (up to 30,000 hours in eco mode) eliminates lamp replacement cycles, producing a low total cost of ownership over the life of the projection system.

Key Features

• 5,200-Lumen Laser Light Source — Maintains bright, consistent images in classrooms and conference rooms with ambient light.
• 3LCD Color Fidelity — LCD technology delivers accurate, saturated color without the rainbow artifacts of single-chip alternatives.
• Horizontal and Vertical Lens Shift — Manual lens shift enables flexible projector placement during ceiling-mount installation.
• 1.6x Manual Zoom — Wide throw range lets integrators fine-tune image size without relocating the mount.
• 4K-Ready Input Processing — Accepts 4K@30Hz HDMI content through Sharp NEC's proprietary video scaling chip.
• 20,000-Hour Laser Life — Eliminates lamp swaps and filter-heavy maintenance for a low-TCO projection solution.
• Built-In 16W Audio — Powerful internal speakers cover most large classrooms without external sound reinforcement.
• 360-Degree and Portrait Installation — Mount at any tilt angle or rotate for vertical digital signage content.

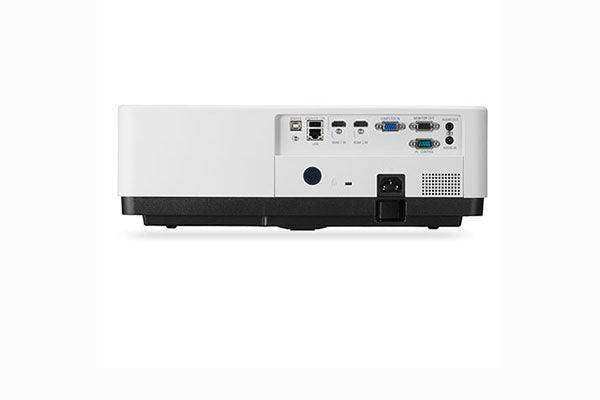

• Network Control via RJ-45 — Integrates with room control and AV management systems over LAN.

Typical Applications

• Conference room presentation systems
• Training room and classroom projection
• Multi-purpose room AV systems
• House of worship overflow and classroom spaces
• Commercial meeting space installations

Technical Specifications

Frequently Asked Questions

Is the Sharp NP-PE506WL suitable for ceiling-mount installation in a conference room?

Yes. The compact chassis, manual horizontal and vertical lens shift and 1.6x zoom are designed for ceiling-mount deployment, giving installers wide placement flexibility relative to the screen.

Can the NP-PE506WL display 4K content?

The projector is 4K-ready: it accepts 4K@30Hz signals over HDMI and scales them to its native WXGA (1280 x 800) panel using Sharp NEC's video processing chip.

How long does the laser light source last?

The laser is rated for 20,000 hours in normal mode and up to 30,000 hours in eco mode, so most installations will never require a light source replacement.

Does it integrate with room control systems?

Yes. The RJ-45 LAN port supports network control and monitoring, allowing the projector to be managed from AV control processors and centralized management software.

Do I need external speakers?

In most classrooms and mid-size conference rooms the built-in 16W speakers provide sufficient volume. For larger venues, the audio output can feed an external sound system.

Can it be mounted in portrait orientation for digital signage?

Yes. The NP-PE506WL supports 360-degree rotation and portrait mode, accommodating vertical content and non-standard mounting angles.
