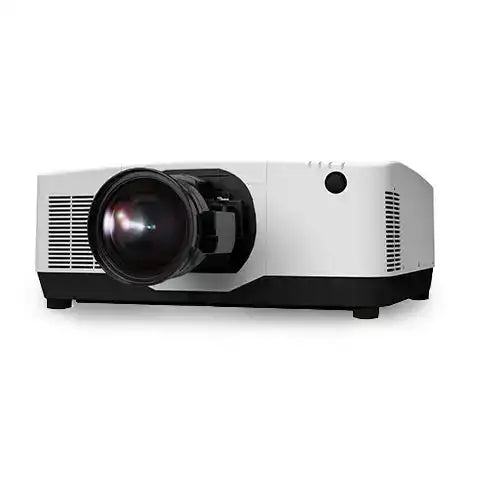

Sharp NP-PA1505UL – 15,000-Lumen WUXGA Laser 3LCD Projector (No Lens)

Product Overview

The Sharp NP-PA1505UL is a WUXGA laser 3LCD installation projector delivering 14,000 lumens typical (15,000 center lumens), designed for higher education, corporate, and large commercial AV deployments. This professional installation projector shares the PA series architecture with dual HDMI 2.0, HDBaseT, and 3G-SDI inputs, supporting 4K-ready signal processing and complete integration with Crestron, AMX, Extron, and PJ Link control systems. The sealed laser light source offers 20,000 hours of maintenance-free operation, and the no-lens configuration allows integrators to pair the unit with any of the compatible NP-series motorized zoom lenses. The NP-PA1505UL suits conference centers, auditoriums, and multi-purpose rooms where consistent high-output projection is required.

Product Description

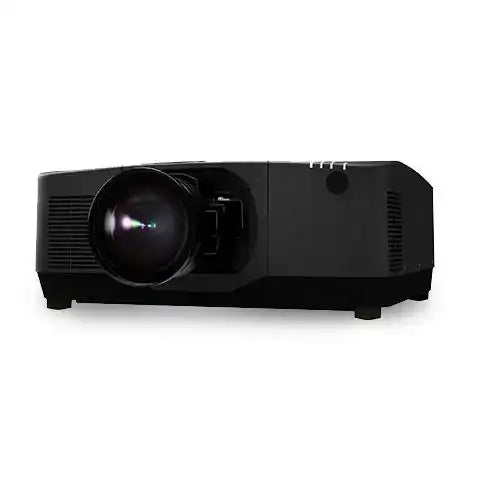

Available in black or white cabinet, the Sharp NP-PA1505UL uses a 1.0" 3LCD with MLA display panel for accurate color rendering without the rainbow artifacts common to single-chip DLP projectors. The HDBaseT Repeater enables signal cascading for edge-blending and stacking configurations, and TileMatrix allows up to four projectors to deliver a seamless 4Kx2K display. ProAssist software enables network-based multi-projector calibration and image alignment. Roll-free installation supports ceiling, floor, front, and rear projection orientations, and the motorized lens system (available separately) provides precise remote focus, zoom, and lens shift adjustment after installation.

Key Features

• 15,000 Center Lumens — 14,000 ANSI lumens typical with 15,000 center lumen peak for high-ambient-light commercial spaces.
• WUXGA 1920x1200 Native Resolution — Supports 4K 4096x2160 maximum input via Sharp’s proprietary scaling chip.
• 20,000-Hour Sealed Laser — No lamp or filter replacement required throughout the operational life.
• Motorized Lens Compatible — Accepts NP51ZL through NP56ZL lenses for throw ratios from 0.53:1 to 7.4:1.
• HDBaseT with Repeater — Single-cable AV and control delivery with cascading support for multi-projector arrays.
• 3G-SDI Input — Broadcast-standard SDI input for live events and video production environments.
• 4K-Ready Processing — HDR10 and BT.2020 signal support across all digital inputs at 4K 60P.
• Control System Integration — AMX Beacon, Crestron RoomView, Extron XTP, PJ Link; RS-232, IR, RJ-45, DDC/CI.
• ProAssist Software — Network multi-projector management for calibration, blending, and stacking.
• 3,000,000:1 Dynamic Contrast — Accurate image rendering across both bright and dark content.
• 5-Year InstaCare Warranty — 5-year or 20,000-hour coverage with next-business-day exchange program.

Typical Applications

• Auditorium
• House of worship
• Conference room
• Training room
• All-hands room
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Does the NP-PA1505UL include a lens?

No. This is the no-lens configuration. Compatible NP-series motorized zoom lenses (NP51ZL–NP56ZL) cover throw ratios from 0.53:1 to 7.4:1 and are available separately.

How does the NP-PA1505UL differ from the NP-PA1705UL?

The PA1505UL delivers 14,000/15,000 lumens vs. 16,000/17,000 on the PA1705UL and draws 960W vs. 1,035W in normal mode. Physical dimensions, inputs, and lens compatibility are identical.

Can this projector be integrated with a Crestron control system?

Yes. Native Crestron RoomView support is built in. The projector also supports AMX Beacon, Extron XTP, and PJ Link protocols, along with RS-232 and RJ-45 serial control.

What warranty is included?

Registered owners receive a 5-year or 20,000-hour parts and labor warranty with Sharp InstaCare next-business-day exchange.

Is 4K content compatible?

The projector accepts 4K 60P HDR10 and BT.2020 signals from all digital inputs. The native display panel is WUXGA 1920x1200.
