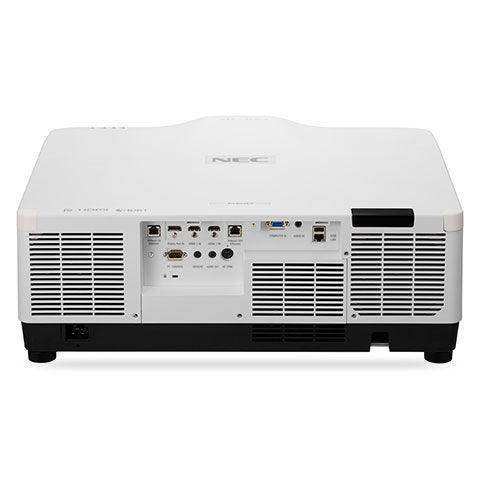

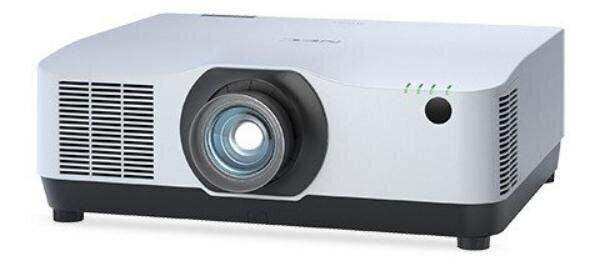

Sharp NP-PA1004UL-W-41 – 10,000-Lumen WUXGA Laser 3LCD Projector with Lens (White)

Product Overview

The Sharp NP-PA1004UL-W-41 is a white-cabinet, 10,000-lumen WUXGA laser 3LCD installation projector bundled with the NP41ZL motorized zoom lens, designed for corporate, higher education, and museum installations requiring high output in medium-to-large spaces. The PA series sealed optical engine delivers filter-free operation with 20,000 hours of laser life, and built-in edge blending and stacking support complex multi-projector deployments. Native Crestron, AMX, Extron, and PJ Link integration suits professionally controlled AV environments, and the TileMatrix feature enables seamless 4Kx2K displays using four units via HDBaseT Repeater.

Product Description

Built around a WUXGA 1920x1200 3LCD panel, the NP-PA1004UL-W-41 accepts 4K input with HDR10 and BT.2020 processing. The included NP41ZL motorized zoom lens covers a 1.30–3.02:1 throw ratio for medium-throw auditoriums and conference rooms, with motorized remote adjustment of zoom and focus after installation. HDBaseT input enables single-cable AV and control delivery, and the HDBaseT Repeater supports downstream signal distribution in multi-projector setups. An optional MultiPresenter Stick enables wireless presentation from Windows, Mac, Android, and iOS devices simultaneously for conference and classroom use.

Key Features

• 10,000 Lumens — High output for large conference rooms, auditoriums, and multi-purpose venues with moderate ambient light.
• NP41ZL Motorized Zoom Lens Included — 1.30–3.02:1 throw ratio; motorized zoom and focus for remote post-installation adjustment.
• WUXGA 1920x1200 Native Resolution — Supports 4K input up to 4096x2160 with HDR10 and BT.2020 compatibility.
• Sealed Optical Engine — Filter-free, near-silent operation throughout the 20,000-hour laser lifespan.
• Built-In Edge Blending and Stacking — Multi-projector arrays supported natively without external blending hardware.
• HDBaseT Input and Repeater — Single-cable AV/control with downstream cascading for multi-projector signal distribution.
• TileMatrix — Seamless 4Kx2K display using four projectors via HDBaseT Repeater.
• MultiPresenter Stick Compatible — Optional wireless presentation for up to 12 devices (Win, Mac, Android, iOS) with screen mirroring.
• Control System Integration — Crestron RoomView, AMX Beacon, Extron XTP, PJ Link; RS-232, IR, RJ-45.
• 20,000-Hour Laser Life — No lamp replacement over the operational lifespan.
• 5-Year InstaCare Warranty — 5-year or 20,000-hour parts and labor with next-business-day exchange.

Typical Applications

• Auditorium
• Conference room
• Training room
• Boardroom
• All-hands room
• Multi-purpose room
• House of worship

Technical Specifications

Frequently Asked Questions

What lens is included?

The NP41ZL motorized zoom lens (1.30–3.02:1 throw ratio) is included. Additional NP-series lenses are available for different throw requirements.

How does the PA1004UL differ from the PA804UL?

The PA1004UL delivers 10,000 lumens vs. 8,200 lumens on the PA804UL. All other specifications, inputs, and lens compatibility are shared between the two models.

Does this projector support wireless presentation?

With an optional MultiPresenter Stick, the projector supports wireless screen sharing for up to 12 devices simultaneously across Windows, Mac, Android, and iOS platforms.

What is the warranty?

Registered owners receive 5-year or 20,000-hour parts and labor with Sharp InstaCare next-business-day exchange.
