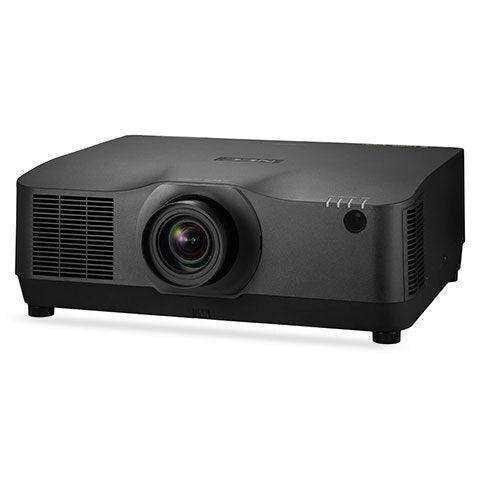

Sharp NP-PA1004UL-B – 10,000-Lumen WUXGA Laser 3LCD Projector, No Lens (Black)

Product Overview

The Sharp NP-PA1004UL-B is a black-cabinet, 10,000-lumen WUXGA laser 3LCD professional installation projector in the no-lens configuration, designed for AV integrators who need to specify the precise optic for each installation. The PA series sealed optical engine delivers filter-free, near-silent operation with a 20,000-hour laser lifespan, and built-in edge blending and stacking support complex multi-projector deployments in auditoriums, conference centers, and higher education venues. Native Crestron, AMX, Extron, and PJ Link integration suits professionally managed AV environments.

Product Description

The NP-PA1004UL-B features a WUXGA 1920x1200 3LCD panel accepting 4K input up to 4096x2160 with HDR10 and BT.2020 processing. HDBaseT input provides single-cable AV and control delivery, with the HDBaseT Repeater enabling signal cascading for multi-projector edge blending and stacking. TileMatrix supports seamless 4Kx2K display using four units. Compatible motorized lenses include the NP40ZL, NP41ZL, NP43ZL, NP44ML ultra-short throw, and NP50ZL, covering throw ratios from 0.32:1 to 5.93:1 for any venue geometry.

Key Features

• 10,000 Lumens — High-output brightness for large conference rooms, auditoriums, and all-hands spaces.
• No-Lens Configuration — Compatible with NP40ZL, NP41ZL, NP43ZL, NP44ML, and NP50ZL motorized and ultra-short throw lenses.
• Sealed Optical Engine — Filter-free, near-silent operation with 20,000-hour laser life.
• WUXGA 1920x1200 Native Resolution — 4K input support with HDR10 and BT.2020 via Sharp’s scaling chip.
• Built-In Edge Blending and Stacking — Multi-projector array support without external blending hardware.
• HDBaseT Input and Repeater — Single-cable AV/control with downstream cascading.
• TileMatrix — Four-projector 4Kx2K seamless tiled display.
• Control System Integration — Crestron RoomView, AMX Beacon, Extron XTP, PJ Link; RS-232, IR, RJ-45.
• Black Cabinet — Appropriate for auditoriums and venues specifying dark-finish equipment.
• 5-Year InstaCare Warranty — 5-year or 20,000-hour parts and labor with next-business-day exchange.

Typical Applications

• Auditorium
• Boardroom
• Conference room
• Training room
• All-hands room
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Which lenses are compatible with the NP-PA1004UL-B?

Compatible lenses include the NP40ZL (0.79–1.11:1), NP41ZL (1.30–3.02:1), NP43ZL (2.99–5.93:1), NP44ML ultra-short throw (0.32:1), and NP50ZL (0.60–0.76:1).

What is the difference between the no-lens and -41 lens-included models?

The NP-PA1004UL-B-41 includes the NP41ZL lens. The NP-PA1004UL-B ships without a lens, giving integrators the flexibility to select the appropriate optic.

What is the warranty?

Registered owners receive 5-year or 20,000-hour parts and labor with Sharp InstaCare next-business-day exchange.

Is 4K input supported?

Yes. The projector accepts 4K input with HDR10 and BT.2020 on all digital inputs, scaled to the native WUXGA 1920x1200 panel.
