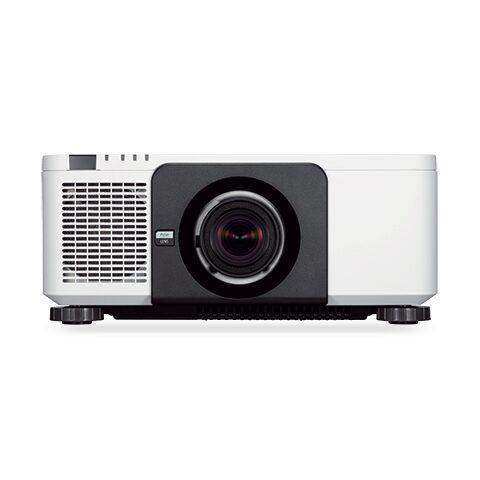

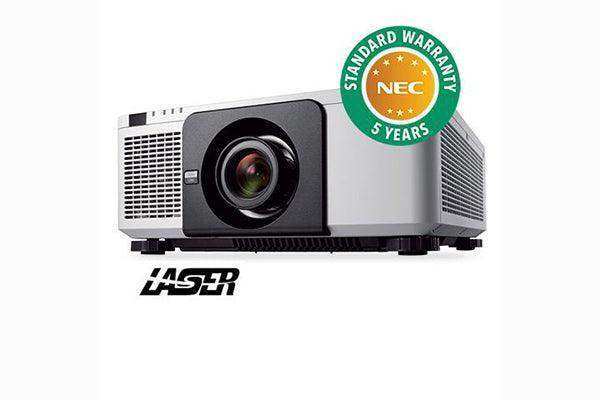

Sharp NP-PX1004UL-WH – 10,000-Lumen WUXGA Laser Installation Projector (White, No Lens)

Product Overview

The Sharp NEC NP-PX1004UL-WH is a 10,000-lumen laser installation projector built for permanent large venue projection in auditoriums, lecture halls, houses of worship, and corporate all-hands spaces. Its WUXGA (1920 x 1200) DLP engine is driven by a laser phosphor light source rated for 20,000 hours of virtually maintenance-free operation, dramatically lowering total cost of ownership compared with lamp-based large venue projectors. Supplied in a white chassis without a lens, this professional installation projector lets integrators pair the body with the optional lens that matches the exact throw distance of the room.

Product Description

The PX1004UL-WH brings laser projection to applications that demand always-on reliability. The laser phosphor module maintains consistent brightness and improved color fidelity over its 20,000-hour life, making the projector well suited to continuous-duty digital signage, simulation, museum, and theme park installations as well as higher education and corporate AV integration. Lamp-less operation eliminates relamping labor and disposal, and the unit's lower power consumption supports demanding always-on schedules.

Multi-projector capability is built in. Integrated edge blending merges several projected images into one continuous high-resolution canvas, while TileMatrix enables 4K x 2K resolution arrays using digital loop-through — no external image processors required. Sharp NEC's ProAssist software adjusts and aligns the projected image over the network from a computer, simplifying calibration when combining projectors across a large screen in a classroom, auditorium, or commercial meeting space.

Installation flexibility matches the optics. Tilt-free operation allows the projector to be mounted at any angle, including portrait orientation, for creative and experiential installs. Built-in HDBaseT carries video, audio, and control over a single category cable, reducing cable infrastructure in long-run auditorium projector installations, and the maximum supported input resolution of 4096 x 2160 accommodates 4K sources. The dynamic contrast system delivers a 10,000:1 contrast ratio for deep blacks in light-controlled venues. For installations with dark ceilings or truss rigging, the identical projector is available in black as the NP-PX1004UL-BK.

Key Features

• 10,000-Lumen Laser Output — High brightness with stable output suits large screens and venues with ambient light.
• 20,000-Hour Laser Light Source — Lamp-less laser phosphor engine delivers virtually maintenance-free operation and lower total cost of ownership.
• WUXGA Resolution with 4K Input — Native 1920 x 1200 imaging accepts sources up to 4096 x 2160.
• Integrated Edge Blending — Blend multiple projectors into one continuous image without external processing hardware.
• TileMatrix 4K x 2K Arrays — Digital loop-through builds multi-projector walls at 4K x 2K resolution.

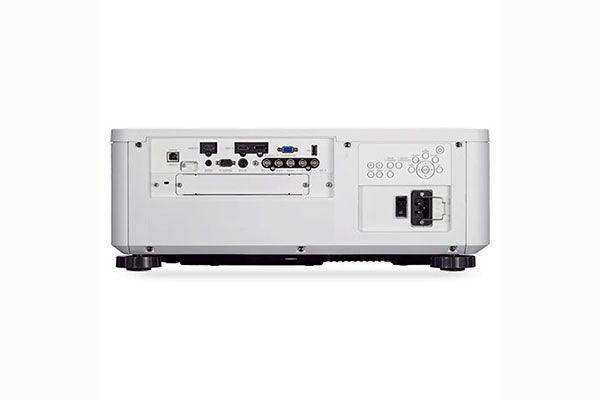

• Built-In HDBaseT — Video, audio, and control over a single category cable simplifies long cable runs in fixed installations.
• ProAssist Network Calibration — Adjust and align projected images from a computer over the network when combining multiple units.
• Tilt-Free and Portrait Mounting — Install at any angle, including portrait, for signage and experiential applications.
• 10,000:1 Dynamic Contrast — Dynamic contrast control produces deep blacks for presentation and video content.

Typical Applications

• Auditorium
• House of worship
• Training room
• Government space
• Multi-purpose room
• All-hands room
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

Is a lens included with the NP-PX1004UL-WH?

No. The projector ships body-only so integrators can select the optional Sharp NEC lens that matches the throw distance of the venue, from short-throw to long-throw ratios. Creation Networks can help you specify the correct lens.

What maintenance does the laser light source require?

The laser phosphor engine is rated for 20,000 hours of virtually maintenance-free operation. There are no lamps to replace, which lowers total cost of ownership in always-on digital signage and auditorium installations.

Can I blend multiple projectors into one image?

Yes. Edge blending is integrated, and TileMatrix supports 4K x 2K multi-projector arrays using digital loop-through. ProAssist software handles alignment and adjustment over the network from a computer.

How does HDBaseT help with installation?

Built-in HDBaseT carries video, audio, and control signals over a single category cable, eliminating long HDMI runs and reducing conduit and labor in fixed auditorium and lecture hall installations.

Can the projector be mounted in portrait orientation?

Yes. The laser engine permits tilt-free installation at any angle, including portrait mode, which lamp-based projectors typically cannot support.

What is the difference between the WH and BK versions?

They are the same 10,000-lumen WUXGA laser projector; only the chassis color differs. Choose white for light ceilings and the NP-PX1004UL-BK, also available at Creation Networks, for dark ceilings and truss rigging.
