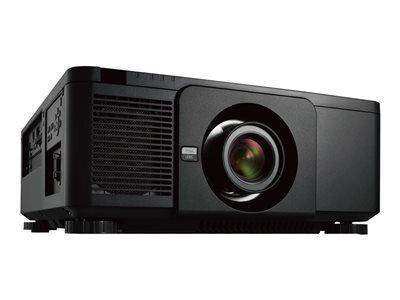

Sharp NP-PX1004UL-B-18 – 10,000-Lumen WUXGA Laser Projector with NP18ZL Lens (Black)

Product Overview

The Sharp NP-PX1004UL-B-18 is a black-cabinet, 10,000-lumen WUXGA laser phosphor installation projector bundled with the NP18ZL zoom lens, designed for demanding integration applications including higher education, corporate large-venue, digital signage, simulation, and themed environment installations. The laser phosphor light source delivers 20,000 hours of near-maintenance-free operation with more consistent brightness and improved color fidelity compared to lamp-based alternatives. Built-in edge blending, HDBaseT, and TileMatrix support complex multi-projector display configurations. The bundle includes the NP18ZL zoom lens for medium-throw deployments.

Product Description

The NP-PX1004UL-B-18 uses a WUXGA 1920x1200 native panel with 4K maximum input support and 10,000:1 dynamic contrast. HDBaseT provides single-cable AV and control delivery, and the TileMatrix function enables 4Kx2K displays by digitally looping through multiple units. Built-in edge blending supports multi-projector seamless image stitching. The laser phosphor light source enables tilt-free and portrait-mode installation, opening the projector to vertical signage, simulation displays, and dome projection applications that are not feasible with lamp-based units. The NP18ZL zoom lens is suitable for standard-range conference room and auditorium throw distances.

Key Features

• 10,000 Lumens — High-output brightness for large conference rooms, auditoriums, and permanent installations.

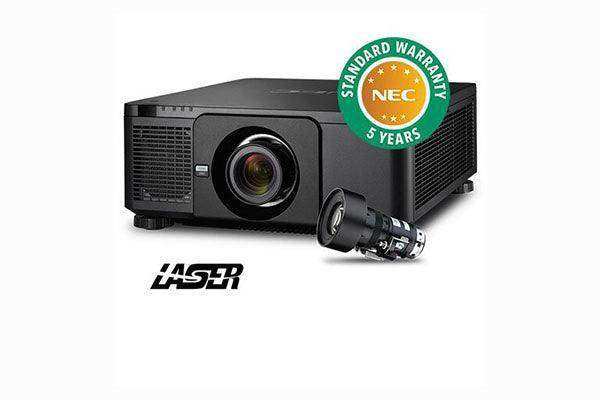

• NP18ZL Zoom Lens Included — Medium-throw zoom lens for standard auditorium and conference room throw distances.
• WUXGA 1920x1200 Native Resolution — Supports 4K maximum input via Sharp’s video processing chip.
• Laser Phosphor Light Source — 20,000 hours of consistent brightness; reduced color drift vs. lamp-based units.
• Tilt-Free and Portrait Mode Installation — Enables vertical signage, simulation, and non-standard mounting configurations.
• Built-In Edge Blending — Multi-projector seamless image blending without external hardware.
• TileMatrix — Digital loop-through for 4Kx2K display using multiple units.
• HDBaseT — Single-cable uncompressed AV and control delivery.
• Ideal for Digital Signage and Simulation — Always-on laser reliability for 24/7 commercial deployment.
• 10,000:1 Dynamic Contrast — With dynamic contrast enhancement.
• 5-Year InstaCare Warranty — 5-year or 20,000-hour parts and labor with next-business-day exchange.

Typical Applications

• Auditorium
• Conference room
• All-hands room
• Training room
• Multi-purpose room
• Government space

Technical Specifications

Frequently Asked Questions

What lens is included with the NP-PX1004UL-B-18?

The NP18ZL zoom lens is included. Refer to the NP18ZL specifications for exact throw ratio coverage. Additional NP-series lenses are available separately.

How does the PX series differ from the PA series?

The PX1004UL is a laser phosphor projector optimized for always-on applications including digital signage, simulation, and themed environments, with tilt-free installation capability. The PA series targets traditional AV integration with a broader motorized lens lineup and 3G-SDI input on higher models.

Can multiple units be edge-blended together?

Yes. Built-in edge blending and TileMatrix with digital loop-through support multi-projector seamless display configurations.

What is the warranty?

Registered owners receive 5-year or 20,000-hour parts and labor with Sharp InstaCare next-business-day exchange.

Is this projector suitable for 24/7 always-on operation?

Yes. The laser phosphor light source is rated for 20,000 hours of high-brightness, lower-power-consumption operation, making it well-suited for always-on digital signage deployments.
