Sharp NP49ZL – 4.0-7.0:1 Ultra-Long-Throw Zoom Lens for NP-PX2201UL
Sharp NP49ZL – 4.0-7.0:1 Ultra-Long-Throw Zoom Lens for NP-PX2201UL is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.

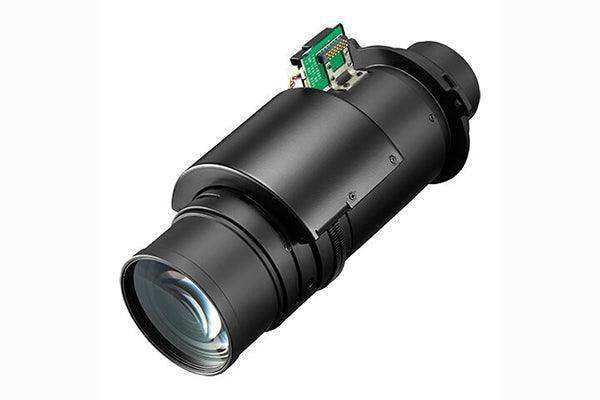

Sharp NP49ZL – 4.0-7.0:1 Ultra-Long-Throw Zoom Lens for NP-PX2201UL
Product Overview
The Sharp NP49ZL is a motorized ultra-long-throw zoom lens with a 4.0-7.0:1 throw ratio, designed specifically for the NP-PX2201UL professional installation laser projector. This lens is the longest-throw option for the PX2201UL platform, enabling projection from extreme distances in large auditoriums, rear projection booths, stadiums, and venues where the projector cannot be positioned close to the screen. Motorized zoom, focus, and lens shift allow complete remote optical adjustment after installation.
Product Description
The NP49ZL is engineered for high-brightness large-venue installations where the NP-PX2201UL must cover a large screen from a rear booth or balcony position. At 4.0-7.0:1, the projector can be placed approximately 28.8 to 50.4 feet from a 100-inch-wide screen—covering even the deepest projection booth configurations in large commercial venues. The 1.75x zoom ratio provides meaningful range adjustment without requiring physical relocation of the projector during commissioning or operation.
The NP49ZL is sold separately from the NP-PX2201UL projector body. The projector is also available bundled with this lens as the NP-PX2201UL-48ZL configuration.
Key Features
- 4.0-7.0:1 Throw Ratio — Ultra-long-throw range for rear booth and extreme-distance projection in large commercial venues.
- Motorized Zoom and Focus — Remote optical control from projector remote, front panel, or control system after installation.
- Motorized Lens Shift — Optical image offset for off-axis projector placement without keystone correction.
- Designed for NP-PX2201UL — Engineered exclusively for the Sharp NP-PX2201UL high-brightness installation projector platform.
- Bayonet Mount with Anti-Theft Lock — Secure installation for permanent large-venue deployments.
Typical Applications
- Large auditorium with rear projection booth
- House of worship with distant balcony or booth mount
- Stadium and arena large-screen display
- Government and command center display wall
- Broadcast studio large-format background projection
Technical Specifications
| Specification | Value |
|---|---|
| Model | NP49ZL |
| Throw Ratio | 4.0-7.0:1 |
| Zoom | Motorized |
| Focus | Motorized |
| Lens Shift | Motorized (with shift) |
| Compatible Projectors | NP-PX2201UL, NP-PX2201UL-48ZL |
| Lens Category | Ultra-Long-Throw Motorized Zoom |
Frequently Asked Questions
- Q: Which projector is the NP49ZL compatible with?
- The NP49ZL is designed for use with the NP-PX2201UL professional installation projector and the NP-PX2201UL-48ZL bundle configuration.
- Q: Is this lens available bundled with the projector?
- Yes. The NP-PX2201UL-48ZL bundle includes the projector body and the NP49ZL lens. The NP49ZL is also available separately for use with existing NP-PX2201UL installations.
- Q: Where can I purchase the NP49ZL?
- Available at Creation Networks, an authorized Sharp commercial AV reseller.
