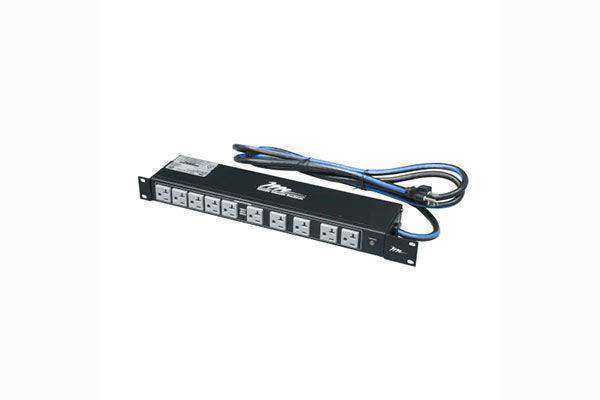

Middle Atlantic PD-2020R-NS - 20-Outlet 20A Rackmount PDU No Surge
Middle Atlantic PD-2020R-NS - 20-Outlet 20A Rackmount PDU No Surge is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Middle Atlantic PD-2020R-NS - 20-Outlet 20A Rackmount PDU No Surge
Overview
The Middle Atlantic PD-2020R-NS is a rackmount power distribution unit with 20 outlets and a 20-amp circuit, offered without surge protection. Designed for AV and IT racks where surge protection is handled upstream or by individual equipment, it delivers reliable power distribution across a fully populated rack with a high-density outlet count suited to demanding installations.
Description
Power distribution is a fundamental part of any professional rack build. The PD-2020R-NS provides 20 NEMA outlets across a single 20A circuit in a rackmount form factor, allowing integrators to power a large number of rack-mounted devices from a single unit. The no-surge configuration is appropriate for installations where building-level surge suppression, a UPS with surge protection, or equipment with internal protection handles transient voltage events. This simplifies the PDU and can reduce cost in appropriately protected installations.
Key Features
- 20 NEMA outlets on a single 20-amp circuit
- Rackmount form factor for standard 19-inch racks
- No surge protection (upstream or equipment-level protection assumed)
- High outlet density for fully loaded rack installations
- Compatible with Middle Atlantic and standard 19-inch rack enclosures
Typical Applications
- AV rack power distribution in corporate and education environments
- Broadcast and production facility rack builds
- IT and network rack installations with upstream surge protection
- House-of-worship and performing arts audio/video racks
- Any installation with 20A circuit availability and external surge protection
Technical Specifications
| Specification | Value |
|---|---|
| Model | PD-2020R-NS |
| Outlets | 20 |
| Circuit Amperage | 20A |
| Surge Protection | None |
| Mount Type | Rackmount |
| Outlet Type | NEMA |
FAQ
- Why choose a no-surge PDU over a surge-protected model?
- In installations where the building electrical panel, a UPS, or individual equipment provides surge protection, a no-surge PDU is a cost-effective option. However, always verify your installation's protection strategy before selecting this model.
- What is the inlet connector type?
- Contact Creation Networks or review the Middle Atlantic datasheet for inlet and cord specifications.
- Can the PD-2020R-NS be used on a 15A circuit?
- No. This unit requires a 20A circuit. Using it on a 15A circuit can trip breakers under load.
- Where can I order this PDU?
- Visit creationnetworks.net to order or request a quote.
