Middle Atlantic NEXSYS RackLink™ Network Card for NEXSYS UPS
Product Overview
The Middle Atlantic NEXSYS RackLink Network Interface Card (NIC) adds SNMP and IP-based remote monitoring and control capabilities to compatible Middle Atlantic NEXSYS UPS systems. It enables IT managers and AV integrators to monitor UPS status, battery health, load levels, and power events from any networked management system.
Product Description

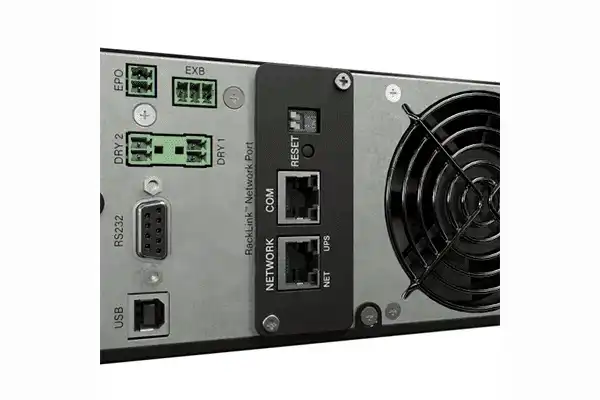

The NEXSYS RackLink NIC installs directly into the NEXSYS UPS expansion slot, providing Ethernet connectivity for remote UPS management. Using SNMP and web-based interfaces, administrators can receive real-time alerts, view power event logs, configure shutdown sequences, and monitor battery runtime from any network-connected computer or building management system. This eliminates the need for physical inspection of UPS units in remote or hard-to-access rack installations.
Key Features
- SNMP and IP network monitoring for NEXSYS UPS systems
- Real-time UPS status, load, and battery health monitoring
- Web-based management interface accessible from any browser
- Configurable alert notifications for power events
- Remote shutdown sequencing for protected equipment
- Direct plug-in installation into NEXSYS UPS expansion slot
Typical Applications
- AV system racks with NEXSYS UPS requiring remote power monitoring
- IT server room and data center UPS management
- Corporate facilities with centralized power monitoring infrastructure
- Government and education facilities using networked building management systems
- Broadcast and production facilities with critical power protection requirements
Technical Specifications
- Compatible UPS: Middle Atlantic NEXSYS series
- Interface: Ethernet (RJ-45)
- Protocols: SNMP, HTTP/HTTPS web interface
- Installation: Plug-in expansion slot for NEXSYS UPS
- Management: Real-time monitoring, alerting, and remote shutdown
FAQ
- Which NEXSYS UPS models are compatible with the RackLink NIC?
- The RackLink NIC is designed for Middle Atlantic NEXSYS series UPS systems with an available network expansion slot. Verify compatibility with your specific NEXSYS model before purchasing.
- Does the RackLink NIC require additional software?
- The NIC includes a built-in web interface accessible via browser. SNMP integration may require configuration within your existing network management system (NMS).
- Can the RackLink NIC trigger automatic equipment shutdown?
- Yes, the NIC supports configurable shutdown sequences that can protect connected equipment during extended power outages.
