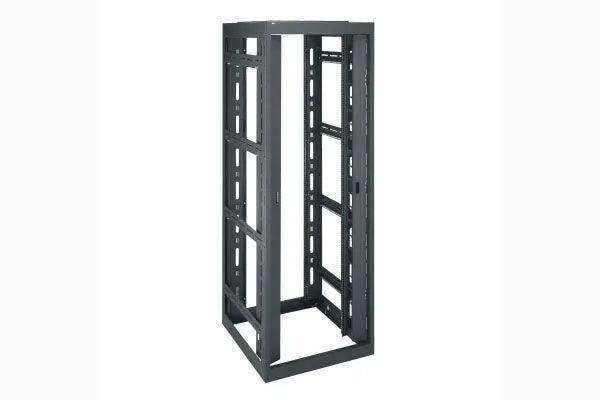

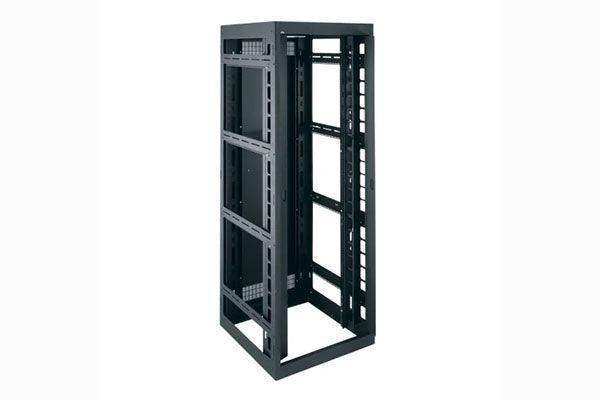

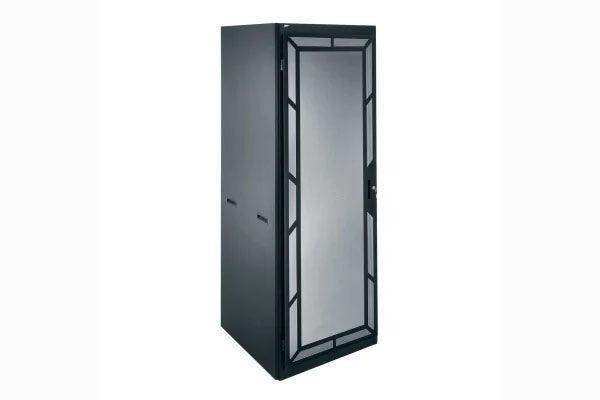

Middle Atlantic DRK19-44-31 – 44U 30"W 31"D Deep Floor Rack

Product Overview

The Middle Atlantic DRK19-44-31 is a 44U, 30-inch-wide, 31-inch-deep DRK-series floor-standing rack built for high-density IT and AV environments where slightly shallower depth suits the installed equipment mix. It delivers the same DRK series structural performance and airflow engineering as deeper models while fitting into tighter equipment room footprints. Common search terms include 44U DRK floor rack 31 deep, Middle Atlantic shallow floor rack for AV, and high-density 44U rack enclosure for IT rooms.

Product Description

The DRK19-44-31 provides 44 rack spaces in Middle Atlantic's DRK series enclosure with a 31-inch mounting depth — a practical choice when equipment depth averages under 30 inches and the additional clearance of a 36-inch rack is not required. This is common in deployments mixing 1U switches, patch panels, 2U AV processors, and shorter UPS units. The 30-inch cabinet width accepts standard 19-inch rack-mount equipment with cable management clearance on both sides of the mounting rails. DRK series construction uses heavy-gauge welded steel with multiple grounding attachment points and a durable black powder-coat finish. Front and rear door options including the D-CFRD-44 fan rear door integrate directly with the DRK19-44-31 for active thermal management. Adjustable mounting rails support 2-post and 4-post configurations. Leveling feet allow precise floor positioning on uneven surfaces. Side panels are removable for side-by-side multi-rack deployments. This rack is fully compatible with the Middle Atlantic DRK accessory ecosystem including blanking panels, power distribution, and cable management products available at creationnetworks.net.

Key Features

• 44 Rack Spaces — High rack unit count in a compact-depth enclosure for mixed IT and AV equipment.
• 31" Mounting Depth — Optimal for standard-depth switches, processors, and patch panels without over-sizing the enclosure.
• 30" Cabinet Width — Standard width with flanking space for vertical cable management alongside 19" rails.
• DRK Series Airflow Design — Engineered for front-to-rear and bottom-to-top airflow with compatible door options.
• Welded Steel Construction — Heavy-gauge frame rated for full-capacity populated deployments.
• Adjustable Mounting Rails — Configures for 2-post and 4-post equipment.
• Removable Side Panels — Supports multi-rack side-by-side configurations.
• DRK Accessory Compatible — Works with D-CFRD fan doors, blanks, and Middle Atlantic cable management.

Typical Applications

• IT server and network equipment rooms with standard-depth equipment
• AV integration machine rooms and head-end closets
• Corporate and campus LAN/WAN distribution racks
• Education and healthcare IT infrastructure deployments
• Mid-density AV-over-IP and control system racks

Technical Specifications

Frequently Asked Questions

What is the difference between the DRK19-44-31 and the DRK19-44-36?

The primary difference is mounting depth: the DRK19-44-31 provides 31 inches of depth versus 36 inches on the DRK19-44-36. Choose the 31-inch model when your equipment mix averages under 30 inches in depth; choose the 36-inch model for deeper servers and high-density equipment.

Can I add a fan rear door to the DRK19-44-31?

Yes. The DRK19-44-31 is compatible with Middle Atlantic's D-CFRD-44 split fan rear door for active thermostatic cooling.

Is 31 inches of depth sufficient for enterprise switching equipment?

Most 1U and 2U enterprise switches fall within 17-30 inches of depth, making the 31-inch DRK19-44-31 suitable for the majority of switching and patch panel deployments. Always verify specific equipment depth requirements before ordering.

Can this rack be used in a side-by-side multi-rack configuration?

Yes. Removable side panels allow DRK enclosures to be installed in adjacent configurations for multi-rack equipment rooms.

What accessories are compatible with the DRK19-44-31?

The full Middle Atlantic DRK accessory range applies, including the D-CFRD-44 fan rear door, blanking panels, PDUs, and vertical cable management panels.

Where can I purchase the DRK19-44-31?

The DRK19-44-31 is available at creationnetworks.net. Contact us for project quotes and system integration pricing.
