Martin Audio WB10/12B – CDD10/12 Weatherized Wall Bracket Black

Product Overview

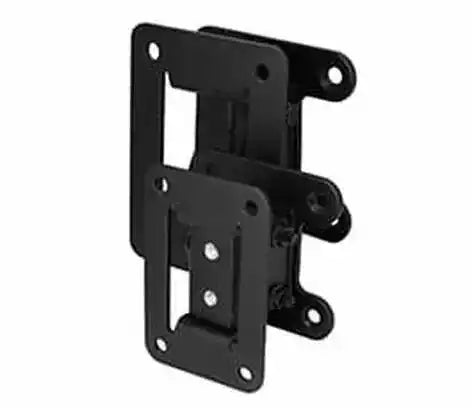

The Martin Audio WB10/12B is a weatherized wall bracket designed for the permanent installation of Martin Audio CDD10, CDD12, CDD-LIVE12, and Blackline X10, X12, and XP12 loudspeakers. Manufactured from polyester powder-coated steel with an outdoor-rated weatherized finish, the WB10/12B supports secure mechanical attachment in both indoor and exposed outdoor environments. The bracket provides vertical and horizontal tilt and pan adjustment, allowing installers to optimise coverage angle after mounting without relocating the bracket itself.

Product Description

The WB10/12B is supplied in black finish for use in installations where the bracket and loudspeaker should blend with dark-coloured walls, ceilings, or structural surfaces. The weatherized polyester powder coat provides corrosion resistance suitable for covered outdoor locations such as covered walkways, outdoor stages, sports facilities, and similar semi-exposed environments. Mounting hardware is included: four M8x20 counter-sunk socket-head bolts are supplied for attachment to the loudspeaker enclosure's M8 rigging inserts.

The bracket's tilt and pan mechanism allows post-installation coverage adjustment to direct sound toward the intended listening area without the need for additional wedges or shims. This adjustability is particularly useful in installations where precise aim cannot be determined during rough-in, or where coverage requirements change after initial deployment. The WB10/12B is also available in white (WB10/12W) for installations requiring a lighter-coloured bracket.

Key Features

• Compatible Models — Supports Martin Audio CDD10, CDD12, CDD-LIVE12, Blackline X10, X12, and XP12 loudspeakers.
• Weatherized Construction — Polyester powder-coated steel provides corrosion resistance for semi-exposed outdoor and indoor installation environments.
• Tilt and Pan Adjustment — Vertical and horizontal aim adjustment after mounting for accurate coverage optimisation without bracket relocation.
• M8 Hardware Included — Four M8x20 counter-sunk socket-head bolts supplied for secure attachment to loudspeaker M8 rigging inserts.
• Black Finish — Suited to installations where bracket should blend with dark surfaces; white version (WB10/12W) available separately.
• Lightweight Steel Construction — 1.26 kg bracket weight minimises wall fixing load while maintaining structural integrity for supported loudspeaker enclosures.

Technical Specifications
