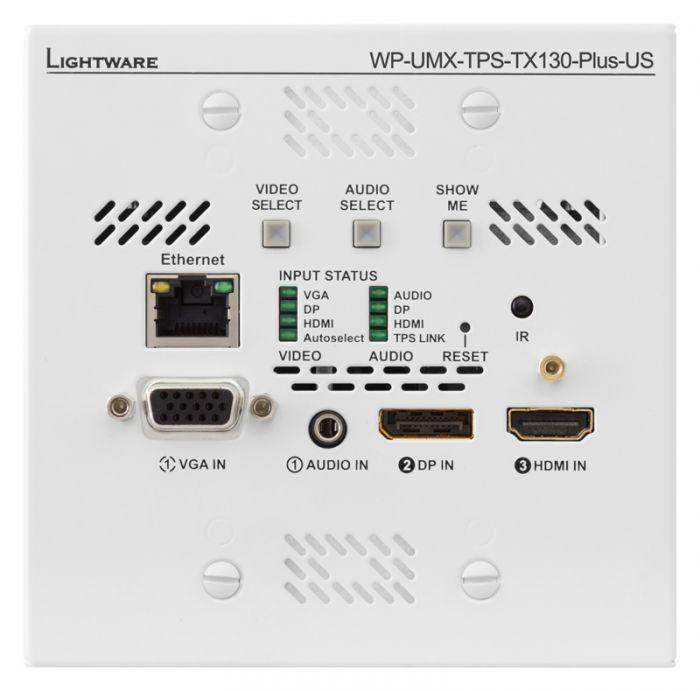

Lightware WP-UMX-TPS-TX130-Plus-US White UMX Series TPS (HDBaseTTM) Wallplate for VGA and HDMI - 91540072
Roll over image to zoom in Click on image to zoom
Lightware WP-UMX-TPS-TX130-Plus-US White UMX Series TPS (HDBaseTTM) Wallplate for VGA and HDMI - 91540072
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Lightware WP-UMX-TPS-TX130-Plus-US White UMX Series TPS (HDBaseTTM) Wallplate for VGA and HDMI - 91540072

Availability: Call for Availability
Availability: Direct Ship
LightWare SKU: 91540072
No reviews
Price:
$1,290.00

Description

Universal Three-Input TPS (HDBaseTTM) Transmitter with Built-In Event Manager.

Highlight Features:

  • 4K/UHD (30Hz RGB 4:4:4, 60Hz YCbCr 4:2:0) and 3D capabilities
  • Extends HDMI and VGA + Audio + Ethernet + RS-232 + IR over a single CAT5e... CAT7e cable up to 170 m distance*
  • Event Manager
  • 10/100 Ethernet extension
  • Bi-directional RS-232 and IR
  • IR and RS-232 connection supports command injection
  • Embeds analog audio

WP-UMX-TPS-TX130-US wall plate transmits universal video signals at a resolution of up to 4K together with audio and control up to a range of 170 m over a single CAT5 or better class cable. This transmitter was designed for digital and analog video and audio signals:VGA YprPb, HDMI 1.4 and DP 1.1 with analog stereo audio from local input or embedded 7.1 HBR audio and also handles HDCP encryption. Analog signals (both audio and video) are converted to a digital format and can be transmitted separately. Using the factory, custom or transparent EDID emulation, the user can fix and lock EDID data on each input connector. Advanced EDID Management forces the required resolution from any video source and fixes the output format conforming to the system requirements. The unit offers bi-directional and transparent IR, RS-232 and Ethernet transmission. IR and RS-232 connections support command injection, allowing the sending of any IR or RS-232 control command directly via the LAN connection. Remote powering is available through the single CAT cable, but local power supply can also be used. The device can be mounted on a rack shelf or used standalone. The device is compatible with both HDBaseTTM extenders and matrix boards.

Applications

  • Small classrooms
  • Conference rooms, meeting rooms
  • Control room
  • Home cinema

Compatible Products

  • MX Modular matrix frames with MX-TPS-IB or MX-TPS2-IB
  • HDMI-TPS-RX95
  • DVI-HDCP-TPS-RX95
  • TPS-PI-1P1
  • MMX6x2-HT200
  • MMX6x2-HT210
  • MMX6x2-HT220

 Advanced Control Pack Features:

  • 100 available event slots in ’Plus’ extenders
  • Support RS-232 protocol for communication and control of third party devices like VC codecs. This allows the Cisco Room Kit login on RS-232–USB connection.
  • Support to receive CEC commands for control of displays and Lightware Event Manager to automate room actions.
  • Support to send CEC commands on HDMI ports for control of other devices.
  • Support true Infrared messages using HEX codes to control TVs, media players and other devices with IR emitters.
Specifications
Resolution: Up to 4K UHD 3840×2160@30Hz, 1600x1200@60Hz, FullHD 1920x1080@60Hz
Digital audio formats: Supports up to 8 channel PCM, Dolby TrueHD and DTS-HD Master Audio 7.1 formats
Input cable equalization: 4K UHD/15m; FullHD/30m
EDID emulation: Yes, Advanced EDID Management
EDID memory: 119 factory preset, 15 user programmable
VGA to digital conversion: 0 microseconds delay
HDCP pass-through: Yes
RS-232 pass-through: Yes, configurable
RS-232 (control option): 4800, 9600, 19200, 38400, 57600, 115200 Baud Rx,Tx (local or through CATx)(default: 57600)
Local power: 2-pole, DC 48V 500mA
Power over TPS: DC 48V 0.25 A
Power consumption: 8,5W (typ)
Enclosure: 1 mm metal
Weight: 457g
Compliance: CE
Warranty: 3 years
Dimensions: 115,9 W x 114,3 H x 72,5 D



Connectors
Digital video input: HDMI connector, DisplayPort
Analog video input: VGA connector
Audio input: 3.5 mm stereo jack
Ethernet: 1 x RJ45
Control: IR
TPS output: 1 x RJ45
Serial port: 3-pole PHOENIX
Power: 2-pole PHOENIX



Analog audio input
Volume: -96 .. 0 dB
Balance: 0 .. 100%
