Lightware WP-UMX-TPS-TX120-US Black UMX Series TPS (HDBaseTTM) Wallplate for VGA and HDMI - 91540014

LightWare SKU: 91540014
No reviews

Price:
Sale price$1,190.00

Description

Universal Two-Input TPS (HDBaseTTM) Transmitter with Built-In Event Manager.

Highlight Features:

  • 4K/UHD (30Hz RGB 4:4:4, 60Hz YCbCr 4:2:0) and 3D capabilities
  • Extends HDMI and VGA + Audio + Ethernet + RS-232 + IR over a single CAT5e... CAT7e cable up to 170 m distance*
  • Event Manager
  • 10/100 Ethernet extension
  • Bi-directional RS-232 and IR
  • IR and RS-232 connection supports command injection
  • Embeds analog audio

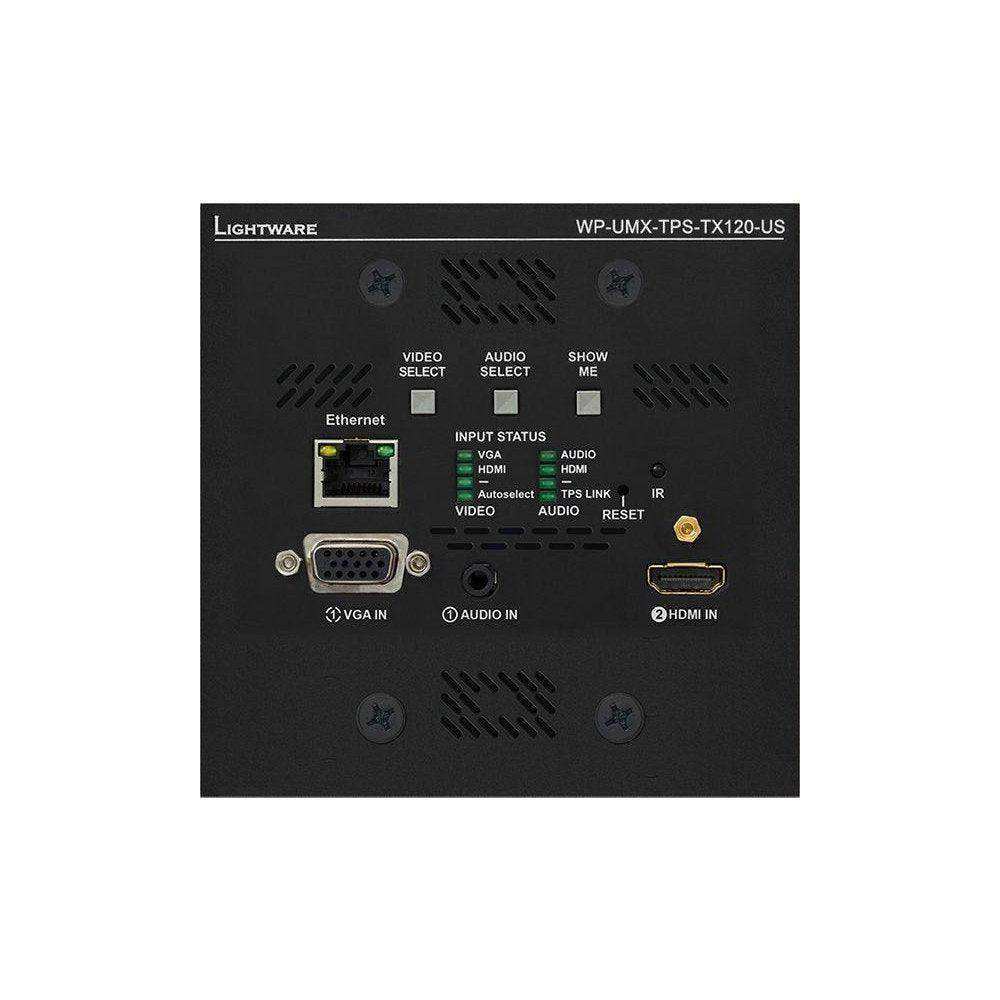

WP-UMX-TPS-TX120-US wall plate transmits universal video signals at a resolution of up to 4K together with audio and control up to a range of 170 m over a single CAT5 or better class cable. This transmitter was designed for digital and analog video and audio signals:VGA YPrPb and HDMI 1.4 with analog stereo audio from local input or embedded 7.1 HBR audio and also handles HDCP encryption. Analog signals (both audio and video) are converted to a digital format and can be transmitted separately. Using the factory, custom or transparent EDID emulation, the user can fix and lock EDID data on each input connector. Advanced EDID Management forces the required resolution from any video source and fixes the output format conforming to the system requirements. The unit offers bi-directional and transparent IR, RS-232 and Ethernet transmission. IR and RS-232 connections support command injection, allowing the sending of any IR or RS-232 control command directly via the LAN connection. Remote powering is available through the single CAT cable, but local power supply can also be used. The device can be mounted on a rack shelf or used standalone. The device is compatible with both HDBaseTTM extenders and matrix boards.



Features

  • 4K/UHD (30Hz RGB 4:4:4, 60Hz YCbCr 4:2:0) and 3D capabilities
  • Extends HDMI, VGA + Audio + Ethernet + RS-232 + IR over a single
    CAT5e...CAT7e cable up to 170 m distance*
  • Audio and video connectors: HDMI, VGA, Stereo jack
  • Embedded 7.1 HBR audio support
  • Active cooling system
  • Separate audio and video transmission
  • Autoselect mode: video and audio priority modes
  • Intuitive Control Software
  • Event Manager
  • 10/100 Ethernet extension
  • Bi-directional RS-232 and IR
  • IR and RS-232 connection supports command injection
  • HDCP compliant, CEC, EDID transparent
  • Embeds analog audio
  • HDBaseT compatibility
  • Advanced EDID management
  • No signal latency
  • Frame detector
  • Remote powering through CAT cable

Applications

  • Small classrooms
  • Conference rooms, meeting rooms
  • Control room
  • Home cinema

Compatible Products

  • MX Modular matrix frames with MX-TPS-IB or MX-TPS2-IB
  • HDMI-TPS-RX90
  • HDMI-TPS-RX95
  • DVI-HDCP-TPS-RX95
  • TPS-PI-1P1
  • MMX6x2-HT200
  • MMX6x2-HT210
  • MMX6x2-HT220
  • Built-in Event Manager control automation feature
  • 1920x1080@120Hz/4:4:4, 4096x2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
  • Extends VGA, DVI or HDMI 1.4 + Audio + Ethernet + RS-232 + IR over one CAT5/6/7 cable
  • Audio embedding (or replace original audio)
  • Ethernet extension (100 Mbps)
  • Command injection on RS-232 and IR ports
  • Bi-directional RS-232 and IR extension (pass-through and control)
Specifications
Resolution: Up to 4K UHD 3840×2160@30Hz, 1600x1200@60Hz, FullHD 1920x1080@60Hz
Digital audio formats: Supports up to 8 channel PCM, Dolby TrueHD and DTS-HD Master Audio 7.1 formats
Input cable equalization: Automatic max 20 m
EDID emulation: Yes, Advanced EDID Management
EDID memory: 119 factory preset, 15 user programmable
VGA to digital conversion: 0 microseconds delay
HDCP pass-through: Yes
RS-232 pass-through: Yes, configurable
RS-232 (control option): 9600, 19200, 38400, 57600, 115200 Baud Rx,Tx (local or through CATx)(default: 57600)
Local power: 2-pole, DC 12V 1A
Power over TPS: DC 48V 0.25A
Power consumption: 8,5W (typ)
Dimensions: 115,9 W x 114,3 H x 72,5 D
Enclosure: 1mm metal
Compliance: CE
Warranty: 3 years
CONNECTORS
Digital video input: HDMI connector
Analog video input: VGA connector
Audio input: Stereo jack
Ethernet: 1 x RJ45
Control: IR
TPS output: 1 x RJ45
Serial port: 3-pole PHOENIX
Power: 2-pole PHOENIX
ANALOG AUDIO INPUT
Volume: -96 .. 0 dB
Balance: 0 .. 100%
