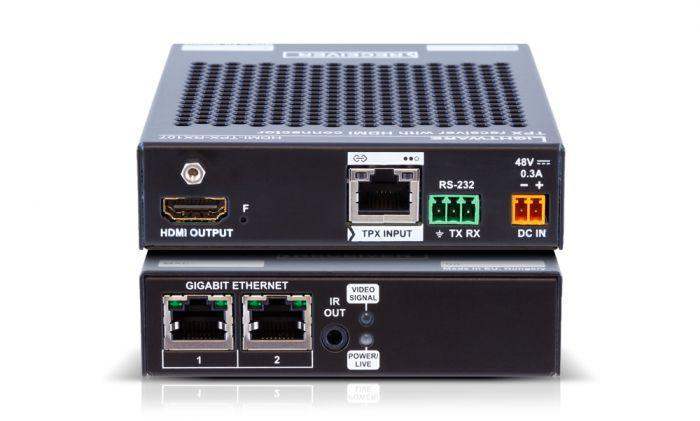

Lightware HDMI-TPX-RX107 AVX (non-switchable) HDMI 2.0 extender - 91580004
Roll over image to zoom in Click on image to zoom
Lightware HDMI-TPX-RX107 AVX (non-switchable) HDMI 2.0 extender - 91580004
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Lightware HDMI-TPX-RX107 AVX (non-switchable) HDMI 2.0 extender - 91580004

Availability: Call for Availability
Availability: Direct Ship
LightWare SKU: 91580004
No reviews
Price:
$720.00

Description

The HDMI-TPX-TX107 and HDMI-TPX-RX107 extenders with AVX technology are Lightware’s newest development and a natural progression from the widely popular HDMI-TPS-TX/RX97 series, allowing users to extend HDMI 2.0 signals up to 4K60 4:4:4 video resolution through a single CATx cable over distances up to 100 meters.

Beyond the benefits of sending high-resolution video over long distances, the extenders are also capable to handle various connectivity standards, including bi-directional RS-232 and command injection over IR (output only) as well.

The additional Gigabit Ethernet port is also a valuable addition, allowing users to connect an additional device to the network directly through the TPX extender.

HDCP 2.3 and basic EDID management functionality are also among the features offered by these devices, such as their connectivity and easy integration into a wide range of AV operations and with 3rd party devices, such as the Christie Terra projector.



  • Can be remote powered through CATx cable (PoE PD)
  • Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
  • Bi-directional RS-232 extension (pass-through)
  • HDCP 2.3 compliant (transparent pass-through)
  • Great price/value balance
  • HDMI 2.0 end-to-end extension
  • Extends HDMI 2.0, audio, Ethernet, RS-232 up to 100m over one CATx cable
  • Ethernet extension (1 Gbps)
  • Command injection through IR

  • Video
    Resolution Up to UHD/4k@60Hz 4:4:4
    Signal Type HDMI 2.0, HDMI 1.x, DVI
    Maximum data rate 18 Gbps
    Maximum pixel clock 600 MHz
    Content protections HDCP 1.x, HDCP 2.3
    Connector type 1x HDMI receptacle type A with screw locking option
    Standards HDMI 2.0, HDMI 1.4, DVI
    Ethernet
    Control & User Data 2x 1000Base-T via RJ-45
    RS232
    Connector type 1x 3Pol Phoenix
    Symbol rate between 4800 and 115200 baud
    Configuration Data bits: 7 or 8
      Parity: none, odd or ever
      Stopbits: 1 or 2
    IR
    Connector type 3.5mm connector (1/8’’ mini-jack) (output only!)
    General
    Powering External 40W (48V, 0.3A) power supply
    Power consumption (max) TBD
    Thermal dissipation (max) TBD
    Weight TBD
    Operating conditions Ambient temperature 0-50°C
    Relative humidity 0-90% (non-condensing)
    Transportation conditions Ambient temperature  -20-70°C
    Relative humidity 0-95% (non-condensing)
    Complience   CE
    Warranty   3 years

    •
