Liberty AV DigitaLinx HDMI2.0 Auto Sensing Room Controller - DL-UHDILC

Product Overview

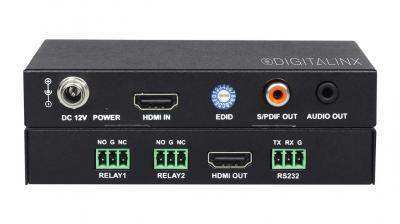

The Liberty AV DL-UHDILC DigitaLinx HDMI 2.0 Auto-Sensing Room Controller is an in-line HDMI controller that automates display power and room peripheral control based on video signal detection — without requiring a dedicated control processor. When an HDMI source signal is introduced, the DL-UHDILC automatically powers on the connected display or projector via CEC or RS-232, triggers relay outputs for screens or shades, and de-embeds audio to analog or digital outputs. Supporting 4K60 4:4:4 at 18 Gbps with HDCP 2.2 and 15 EDID presets, it handles the full HDMI 2.0 signal chain required for modern conference room display infrastructure.

Product Description

The DL-UHDILC is designed for small conference rooms, huddle rooms, and boardrooms where automating display control without a full control system is a practical and cost-effective approach. The unit sits in-line between an HDMI source and display, continuously monitoring the HDMI signal. When a source signal is detected — such as a laptop connecting to the room — the controller executes a pre-loaded RS-232 command or CEC command to power on the display and triggers the first relay output to lower a projector screen or window shade. When the signal is removed after a configurable timeout period, the unit sends the corresponding off command and triggers the second relay to raise the screen or shade.

The DL-UHDILC passes HDMI and HDMI 2.0 signals up to 18 Gbps, supporting 4K60 4:4:4 resolution with HDCP 2.2 copy protection, making it compatible with current-generation source devices and commercial displays. The built-in audio de-embedding outputs stereo analog and digital coax S/PDIF signals, useful for routing room audio to an amplifier or DSP without a separate extractor. The 15 built-in EDID presets are selectable via a front-panel rotary dial, allowing integrators to manage EDID negotiation for common display configurations without additional programming tools. RS-232 commands are pre-loaded and adjustable via the DigitaLinx Port Configuration Tool software (Windows, included). CEC control is available directly from the HDMI output port. Two relay outputs handle contact-closure devices such as motorized projection screens, motorized shades, or room lighting controls. For AV integrators looking for a compact, cost-effective display automation solution for small commercial meeting spaces, the DL-UHDILC delivers meaningful control functionality without the overhead of a full room controller platform.

Key Features

• Auto-Sensing Signal Detection — Monitors HDMI input continuously and automatically triggers display on/off commands and relay outputs when signal is present or absent.
• HDMI 2.0 Pass-Through at 18 Gbps — Passes HDMI and HDMI 2.0 signals at up to 18 Gbps, supporting 4K60 4:4:4 resolution for modern commercial display systems.
• HDCP 2.2 Support — Full HDCP 2.2 compliance ensures compatibility with protected content from current-generation source devices.
• CEC Control Output — Built-in CEC controller on the HDMI output port enables display power control over the HDMI connection without separate control wiring.
• RS-232 Control Output — Built-in RS-232 serial port delivers pre-loaded display on/off commands; commands are configurable via the DigitaLinx Port Configuration Tool.
• Dual Relay Outputs — Two relay contact-closure outputs control room peripherals such as motorized projection screens, window shades, or lighting on signal detect and signal loss events.
• Audio De-Embedding — De-embeds HDMI audio to both analog stereo and digital coax S/PDIF outputs for connection to room audio systems.
• 15 EDID Presets — Front-panel rotary dial selects from 15 built-in EDID presets to manage source-display EDID negotiation without external tools.
