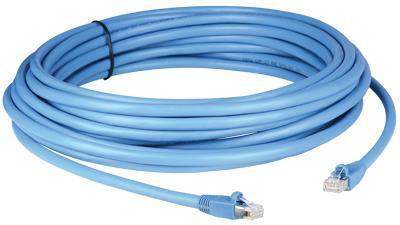

Liberty AV 50' CAT 6 STP PATCH CMP 50' BLK - PPC6BS050BK
Liberty AV 50' CAT 6 STP PATCH CMP 50' BLK - PPC6BS050BK is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Liberty AV 50' CAT 6 STP PATCH CMP 50' BLK - PPC6BS050BK
Product Overview
The Liberty AV PPC6BS050BK is a 50-foot Category 6 F/UTP shielded plenum-rated patch cable designed for pre-terminated HDBaseT runs, IP control infrastructure, and structured cabling in commercial AV and IT environments. Tested to ANSI/TIA-568C Cat6 performance standards using the Fluke DTX-1800 and rated NEC CMP for use in plenum air-handling spaces, this cable is built for permanent commercial AV installation where both signal integrity and fire code compliance are required. The shielded F/UTP construction provides additional protection against electromagnetic interference common in commercial building infrastructure, making it a dependable choice for conference room AV signal distribution over longer horizontal runs.
Product Description
The PPC6BS050BK is part of Liberty AV's premium shielded pre-terminated plenum patch cable series, engineered for AV integrators deploying HDBaseT extenders, IP cameras, VoIP systems, and 10/100/1000BaseT Ethernet infrastructure in commercial spaces. The F/UTP (Foiled Unshielded Twisted Pair) construction adds an overall foil shield over the four twisted pairs, providing a meaningful improvement in noise rejection compared to unshielded UTP patch cables — an important consideration in commercial AV environments with dense cable trays and high-frequency interference sources.
Each end is terminated with an 8P8C modular RJ45 plug featuring gold flash-plated contacts for reliable, corrosion-resistant connectivity. Strain relief boots provide physical protection at the connector-to-cable junction to prevent damage during installation and repeated connect/disconnect cycles. The cable is tested to ANSI/TIA-568C Category 6 performance standards on a Fluke DTX-1800 test set, and is RoHS compliant. The NEC CMP and CEC CMP FT6 ratings allow direct installation in plenum air-handling spaces in commercial buildings without conduit. At 50 feet, this cable length covers medium-span runs between AV equipment racks, wall plates, and HDBaseT devices in standard conference room and boardroom configurations. The black jacket is standard for commercial AV infrastructure. Custom lengths are available upon request through authorized Liberty AV distributors.
Key Features
- Category 6 F/UTP Shielded Construction — Overall foil shield provides EMI protection over four twisted pairs, improving signal integrity in dense commercial cable environments.
- NEC CMP Plenum Rated — NEC type CMP and CEC CMP FT6 rated for direct installation in air-handling plenum spaces without conduit.
- ANSI/TIA-568C Cat6 Tested — Each cable tested to Cat6 performance on a Fluke DTX-1800 test set, confirming compliance with structured cabling standards.
- Gold Flash-Plated RJ45 Connectors — 8P8C modular plugs with gold flash-plated contacts provide corrosion-resistant, reliable terminations.
- Strain Relief Boots — Boots at each connector protect the cable-to-plug junction during installation and regular use.
- HDBaseT and IP Infrastructure Ready — Suitable for LAN Ethernet, HDBaseT AV signal runs, IP camera, VoIP, and video over IP applications.
- RoHS Compliant — Meets RoHS environmental compliance standards.
- 50-Foot Length — Covers medium-span runs in conference rooms and boardrooms; custom lengths available.
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | PPC6BS050BK |
| Category | Cat6 |
| Shield Type | F/UTP (Foiled Unshielded Twisted Pair) |
| Connector Type | 8P8C RJ45 with gold flash-plated contacts |
| Cable Length | 50 feet (15.2m) |
| Plenum Rating | NEC type CMP, CEC CMP FT6 |
| Performance Standard | ANSI/TIA-568C Category 6 (tested on Fluke DTX-1800) |
| Compliance | RoHS |
| Jacket Color | Black |
| Applications | LAN 10/100/1000BaseT, HDBaseT runs, IP control, VoIP, video over IP |
| Available Standard Lengths | 35, 50, 75, 100, 150, 200, 250, 300 ft; custom lengths available |
