LG GSCD069-GR4 Essential Cabinet Outdoor 6.94MM 7000NIT 500X500X85.1MM

Product Overview

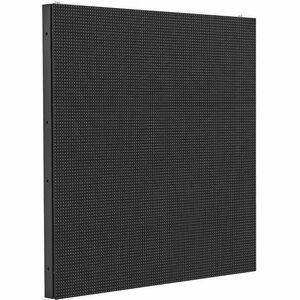

The LG GSCD069-GR4 is an outdoor direct-view LED cabinet in LG's GSCD Ultra Light series, combining a 6.94 mm pixel pitch with a 7,000-nit brightness rating. It uses a single-SMD configuration in a compact half-height/half-width 500 x 500 mm cabinet with an IP65-rated weatherproof design. The lightweight build minimizes structural load. It is engineered for durable, daylight-readable outdoor signage with flexible layout options.

Product Description

This compact cabinet measures 500 x 500 mm at roughly 84.4 mm depth, giving integrators a small, flexible building block for tiling custom-sized outdoor walls. The 6.94 mm pitch suits longer outdoor viewing distances, while the 7,000-nit output competes with direct sunlight. Both the front and back of the cabinet are IP65 certified for stable operation in adverse weather. The Ultra Light design keeps cabinet weight low so large screens place less load on the building. A modular control unit (PDU) attaches or detaches for easier maintenance, and the product offers a choice of front or rear serviceability. An optional 90-degree corner design supports right-angled installs, and the series is compatible with LG SuperSign CMS, LED Assistant, and ConnectedCare.

Key Features

• 6.94 mm Pixel Pitch — suited to longer outdoor viewing distances.
• 7,000-nit Brightness — high output for demanding daylight environments.
• IP65 Weatherproof — front and back certified for outdoor durability.
• Compact 500 x 500 mm Cabinet — half-height/half-width format for flexible tiling.
• Ultra Light Design — reduces structural load on host buildings.
• Front or Rear Service — flexible access for varied install environments.
• LG Software Compatible — works with SuperSign CMS, LED Assistant, and ConnectedCare.

Typical Applications

The GSCD069-GR4 suits building facades, stadiums, transit hubs, and outdoor plazas, including weather-exposed sites where IP65 protection and high brightness are required. Its small square format and corner option support complex, custom-shaped installs.

Technical Specifications

Specifications sourced from LG vendor data. Unlisted values are omitted rather than estimated.

Frequently Asked Questions

Is the GSCD069-GR4 weatherproof? Yes, both the front and back are IP65 certified.

What is the cabinet size? A compact 500 x 500 mm half-height/half-width cabinet.

How bright is it? It is rated at 7,000 nits for demanding daylight environments.

Can it form corner installs? Yes, an optional 90-degree corner design is available.
