LG 55" 1920 x 1080 Multi Vision Video Wall - 55VL5PJ-A

LG Electronics  |  SKU: 55VL5PJ-A

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise? Give us a call at 1-888-230-3661 or LiveChat below. Purchasing 1 or 100, there may be greater savings beyond the advertised price.

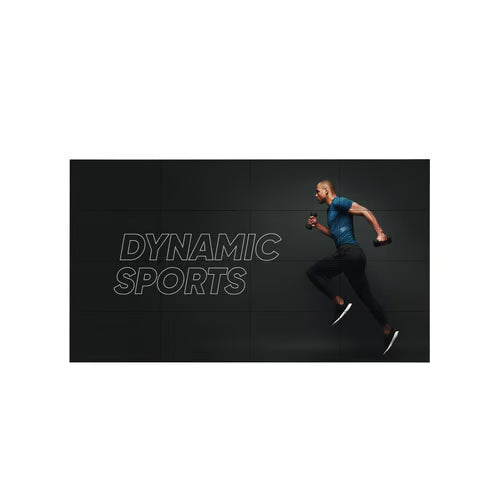

The LG VL5PJ-A 55" Full HD Video Wall Monitor is a 500 nits bright IPS LCD display with ultraslim bezels, 24/7 operation capability, built-in system-on-chip and webOS smart signage platform, making it well suited for use in retail, corporate, hospitality, and other demanding applications. While the VL5PJ-A can be deployed as a single stand-alone display, it is designed to be combined with multiple units to create large video wall displays with a narrow 3.5mm bezel-to-bezel seam.

Daisy Chain Capability
The VL5PJ features video inputs with HDMI, DisplayPort, and DVI-D connectivity. A DisplayPort output will output any of those signals to the next display. By using this daisy-chained network feature, you can execute commands such as controlling, monitoring, and even updating firmware. Furthermore, built-in Tile Matrix software allows for configurations of up to 15 x 15 displays, without needing an external processor.
Real-Time LG ConnectedCare
Maintenance is easy and fast with the optional LG ConnectedCare service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses. Please note, LG ConnectedCare requires purchase of additional licenses and availability differs by region.

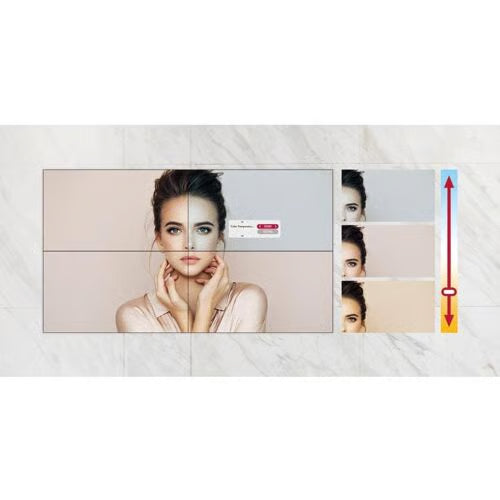

Easy Color Adjustment
Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.
Image Gap Reduction
The VL5PJ includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.
High Performance and Great Scalability
Thanks to its built-in SoC and webOS smart signage platform, the VL5PJ can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK (Software Development Kit), it is even easier for Systems Integrators to build and optimize their web apps.
Additional Features
  • Embedded CMS (Local Contents Scheduling, Group Manager)
  • IP5X dust protection
  • USB Plug & Play
  • Fail Over
  • RS-232 sync
  • Setting data cloning
  • SNMP
  • ISM Method
  • Crestron Connected 2 compatible
  • HDMI CEC
  • Pro:Idiom

Features

  • Full HD (1920 x 1080) Native Resolution
  • Slim 3.5mm Bezel-to-Bezel for Video Wall
  • IPS Direct LED Panel
  • LG SuperSign & 3rd Party Control Support
  • 2 x HDMI | 1 x DVI | 1 x DisplayPort
  • DisplayPort Daisy Chain Output
  • 1200:1 Static Contrast Ratio
  • 500 nits Brightness | 3% Haze Level
  • Digital Signage Support | 15x15 Matrix
  • 24/7 Duty Cycle | Portrait & Landscape

Specs

Display
Size
55"
Panel Type
IPS-Type LCD
Aspect Ratio
16:9
Display Orientation
Portrait, Landscape
Native Resolution
1920 x 1080
Maximum Brightness
500 nits / cd/m2
Lighting System
Direct LED
HDR Support
No
Contrast Ratio
1200:1
Response Time
8 ms (GtG)
Refresh Rate
60 Hz
Color Support
1.07 Billion Colors (10-Bit)
Color Gamut
72% NTSC
Viewing Angle (H x V)
178 x 178°
Finish
Anti-Glare
Surface
Touchscreen
No
Video
TV Tuner
No
Connectivity
A/V Inputs
2x HDMI
1x DVI-D
1x DisplayPort
1x 1/8" / 3.5 mm (Analog Audio)
A/V Outputs
1x DisplayPort
1x 1/8" / 3.5 mm (Analog Audio)
HDCP Support
Yes: Version 1.4/2.2
USB I/O
1x USB-A (Unspecified Version)
Ethernet I/O
1x RJ45
NFC
No
Other I/O
1x 1/8" / 3.5 mm IR Input
1x DE-9/DB-9 Serial (RS-232C) Control Input
1x DE-9/DB-9 Serial (RS-232C) Control Output
OPS/Expansion Slots
No
Ambient Light Sensor
No
Multi-Input Support (PIP/PBP)
No
Speaker
Built-In Speakers
No
Hardware
Smart TV
Yes: webOS 4.1
Storage
8 GB eMMC
Built-In Mic
No
Electrical
Power Consumption
Typical: 135.0 W
Maximum: 150.0 W
Eco Mode: 80.0 W
Standby: < 0.5 W
Input Power
100 to 240 VAC, 60 / 50 Hz
Power Adapter Type
Internal
General
Operating Conditions
32 to 104°F / 0 to 40°C at 10 to 80% Humidity
Certifications
CB, CE, ENERGY STAR 8.0, FCC Class A, NRTL
VESA Mounting-Hole Pattern
600 x 400 mm
Lighting Lifespan
60000 Hours
Environmental Resistance
Dust-Resistant (IP5X)
Lock Slot
No
Bezel Thickness
2.25 mm (Top/Left)
1.25 mm (Right/Bottom)
Duty Cycle
24 Hours / 7 Days
Dimensions
47.8 x 26.9 x 3.7" / 684.2 x 684.2 x 93.1 mm
Weight
51.8 lb / 23.5 kg
Packaging Info
Package Weight
58.5 lb
Box Dimensions (LxWxH)
53.06 x 33.25 x 10.38"
