LG 49VL5G-M – 49-inch FHD Video Wall Display

Product Overview

The LG 49VL5G-M is a 49-inch FHD video wall display engineered for tiled installations where a near-continuous image is required. Its ultra-narrow 3.5 mm bezel-to-bezel gap minimizes visible seams across a multi-screen array, and the 500-nit IPS panel sustains uniform color and brightness at wide viewing angles. The display includes an image gap reduction algorithm that adjusts objects crossing tile boundaries for a more continuous picture. Daisy-chain inputs and RS-232C control make it a practical building block for large-format video wall deployments.

Product Description

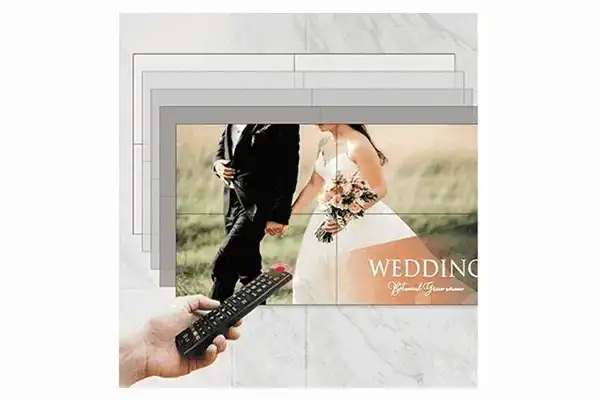

As shown in the product image, the 49VL5G-M is a commercial-grade video wall tile designed to combine into larger arrays in lobbies, control rooms, and broadcast environments. The ultra-narrow bezel measures 2.25 mm on the top and left and 1.25 mm on the bottom and right, producing a 3.5 mm bezel-to-bezel gap between adjacent panels for a near-continuous large screen. LG IPS panel technology holds vivid, distortion-free color across wide horizontal and vertical viewing angles, which is essential for walls mounted above eye level. The image gap reduction algorithm adjusts objects located on bezel boundaries during video playback, and integrators can fine-tune color temperature in 100 K increments and adjust white balance across the grey scale for precise panel matching. Connectivity includes two HDMI inputs, DisplayPort, DVI, and an RS-232C serial control input for centralized command of the array, plus Ethernet and a USB 2.0 port. The commercial menu structure groups related functions for faster on-site configuration. For a single-screen 4K commercial display rather than a tiled wall, compare the LG 49UH5N-E.

Key Features

• Ultra-Narrow Bezel — A 3.5 mm bezel-to-bezel gap minimizes visible seams across a tiled video wall for a near-continuous image.
• Image Gap Reduction — An image improvement algorithm adjusts objects crossing tile boundaries during video playback for a more continuous picture.
• 500-nit IPS Panel — The 500-nit IPS panel sustains vivid, uniform color and brightness across wide viewing angles for above-eye-level mounting.
• Full HD Resolution — The 1920 x 1080 panel delivers clear 1080p content per tile within the larger array.
• Precise Calibration — Color temperature adjusts in 100 K increments and white balance adjusts across the grey scale for accurate panel-to-panel matching.
• Daisy-Chain Connectivity — Two HDMI inputs, DisplayPort, and DVI support source connection and signal distribution across the wall.
• RS-232C Control — An RS-232C serial control input allows centralized command of the array from a control system.
• Commercial Menu Structure — A function-grouped menu and four-way navigation simplify on-site configuration and management.

Typical Applications

• Broadcast studio — Background video wall for on-air sets and production environments.
• Auditorium — Large tiled display for stage backdrops and audience-facing content.
• House of worship — Multi-screen array for lyrics, announcements, and live video.
• All-hands room — Large-format wall for company-wide presentations and live feeds.
• Commercial meeting space — Lobby or atrium video wall for branding and information display.
• Government space — Operations and public-information video wall for command and service environments.

Technical Specifications

Frequently Asked Questions

What is the gap between tiles in a video wall?
The display has a 2.25 mm top/left and 1.25 mm bottom/right bezel, producing a 3.5 mm bezel-to-bezel gap between adjacent panels.

Can the panels be color-matched across the wall?
Yes. Color temperature adjusts in 100 K increments and white balance adjusts across the grey scale, allowing precise panel-to-panel matching during commissioning.

How is the array controlled?
An RS-232C serial control input allows centralized power, input, and configuration command of the wall from a control system, and the units support daisy-chained source distribution.

Is a separate video wall controller or mount required?
This product is the display tile only. A compatible video wall mount and, for larger arrays, an external video wall processor are specified separately. Contact Creation Networks for a complete bill of materials.

What warranty and support options apply?
The unit ships with LG's commercial display warranty. Contact Creation Networks for current warranty terms and extended coverage options.
