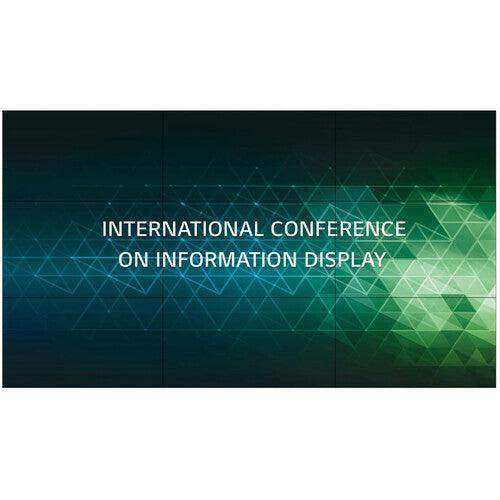

LG 2x2 55VH7J-H Video Wall Bundle w/Peerless DS-VW775 mount - 55VH7JH-4P

Product Overview

This LG 2x2 video wall bundle pairs four 55VH7J-H 55-inch Full HD displays with a Peerless DS-VW775 mount for a complete tiled solution. Each IPS-type LCD panel has a 0.07-inch bezel-to-bezel design with an image gap reduction algorithm for near-continuous imaging, plus 700 cd/m2 brightness and webOS 4.1 with an embedded CMS. Connectivity spans HDMI, DisplayPort, and DVI-D inputs with full control I/O. The displays are rated for 24/7 operation in portrait or landscape.

Product Description

The VH7J-H series is designed for tiled video walls, with a narrow 0.07-inch bezel-to-bezel design and an image gap reduction algorithm that minimizes the visible seam between panels during playback. The IPS-type LCD panels deliver 1920 x 1080 resolution, a 178 x 178 degree viewing angle, 10-bit color, and 700 cd/m2 brightness. Each display runs webOS 4.1 with an embedded CMS offering local content scheduling, group manager, fail-over, gapless playback, and screen share. Tile mode supports configurations up to 15 x 15, with sync over RS-232C or local network and a 50,000-hour rated lighting lifespan. The bundle includes the Peerless DS-VW775 mounting system for a 2x2 array. Connectivity includes two HDMI, one DisplayPort, and one DVI-D input, a DisplayPort and audio output for daisy-chaining, plus USB-A 2.0, dual RJ45, RS-232C, and IR for control. The displays support third-party control systems including Crestron Connected, and are compatible with OPS media players through the optional LG KT-OPSF kit. Each panel measures 47.7 x 26.9 x 3.4 inches and weighs 41.4 lb.

Key Features

• Four 55-inch Full HD panels — A complete 2x2 array of IPS-type LCD displays at 1920 x 1080.
• 0.07-inch bezel-to-bezel — A narrow tiled gap with image gap reduction for near-continuous imaging.
• 700 cd/m2 brightness — Clear messaging in well-lit environments.
• Peerless DS-VW775 mount included — A complete 2x2 mounting system ships with the bundle.
• webOS 4.1 with embedded CMS — Local content scheduling, group manager, and fail-over.
• Tile mode up to 15 x 15 — Scales beyond the included 2x2 layout for larger arrays.
• Wide IPS viewing angle — 178 x 178 degrees for consistent off-axis color.
• Comprehensive connectivity — HDMI, DisplayPort, DVI-D inputs plus USB, dual RJ45, RS-232C, IR.
• Crestron Connected compatible — Integrates with third-party control systems.
• 24/7 duty cycle — Continuous operation in portrait or landscape, 50,000-hour lighting lifespan.

Typical Applications

• Corporate lobbies and reception — Tiled messaging in high-traffic entrances.
• Conference rooms and boardrooms — Shared presentation across a video wall.
• Retail and showrooms — Bright promotional displays.
• Control and operations rooms — Multi-source monitoring on a synchronized array.
• Broadcast and event spaces — Tiled backdrops and live content walls.

Technical Specifications

Specifications sourced from LG vendor data. Unlisted values are omitted rather than estimated.

Frequently Asked Questions

What is included in this bundle?
Four LG 55VH7J-H 55-inch Full HD displays and a Peerless DS-VW775 mounting system for a complete 2x2 video wall.

How small is the gap between panels?
Each display has a 0.07-inch bezel-to-bezel design, with an image gap reduction algorithm minimizing the visible seam.

Can the array be expanded?
Yes. Tile mode supports configurations up to 15 x 15; additional displays and mounts are required.

Does it support OPS media players?
Yes, through the optional LG KT-OPSF kit, sold separately.
