LG 22XE1J-B – 22" 1,500-nit IP56 Outdoor Signage

Product Overview

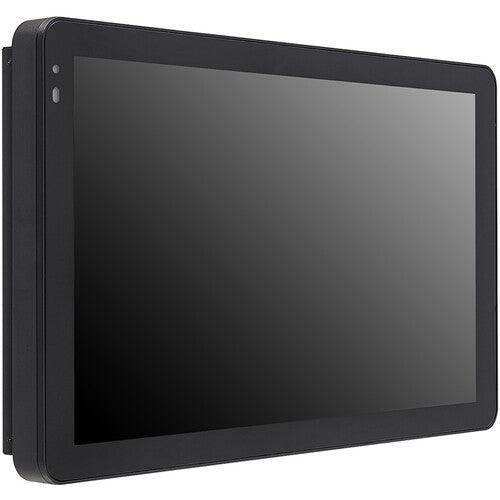

The LG 22XE1J-B is a 21.5-inch outdoor digital signage display built for high-visibility messaging in environments where ambient light defeats standard panels. Rated at 1,500 nits with an IP56-sealed enclosure, this 22-inch outdoor signage display holds up to dust, rain, and a wide temperature range, making it a practical commercial outdoor LCD monitor for drive-thru lanes, fuel forecourts, and window-facing retail. The embedded webOS platform runs content directly on the panel, so integrators can deploy a complete IP56 rated outdoor display without an external media player.

Product Description

This 1500 nit high brightness signage panel uses an IPS (AHVA) display with a 178° x 178° viewing angle and a Quarter Wave Plate, so content stays legible to viewers wearing polarized sunglasses. The conformal-coated power board, built-in cooling fan, and temperature and humidity sensors support 24/7 operation across a -20°F to 122°F range, which is the practical requirement for any window-facing signage display or exposed outdoor install. Smart brightness control adjusts output to ambient light to preserve visibility by day and reduce power draw at night.

For deployment, the 22XE1J-B accepts content over dual HDMI, USB, LAN, or built-in Wi-Fi, and supports RS-232C control for integration into a managed AV system. It runs on webOS 4.1 with 16 GB internal storage, is compatible with LG SuperSign CMS and ConnectedCare remote monitoring, and supports both portrait and landscape orientation for flexible placement as a drive-thru menu board display. Compare it with other LG outdoor signage displays or browse the full range of commercial digital signage at Creation Networks.

Key Features

• 1,500-Nit High-Brightness Panel — The 1,500-nit typical brightness keeps content readable in direct sunlight and other bright outdoor environments where standard commercial displays wash out.
• IP56-Rated Enclosure — The sealed IP56 design protects against dust ingress and high-pressure water streams, allowing reliable operation in rain, snow, and dusty sites.
• Wide Operating Temperature Range — Rated from -20°F to 122°F, the display supports year-round outdoor installation across varied climates without auxiliary climate control.
• webOS 4.1 Smart Platform — A built-in quad-core SoC and 16 GB storage run signage content on-panel, removing the need for a separate external media player at each location.
• Smart Brightness Control — An auto-brightness sensor raises output in daylight for visibility and lowers it after dark to manage power consumption.
• Conformal-Coated Power Board — Protective coating on the power board guards internal electronics against humidity and airborne contaminants to extend service life.

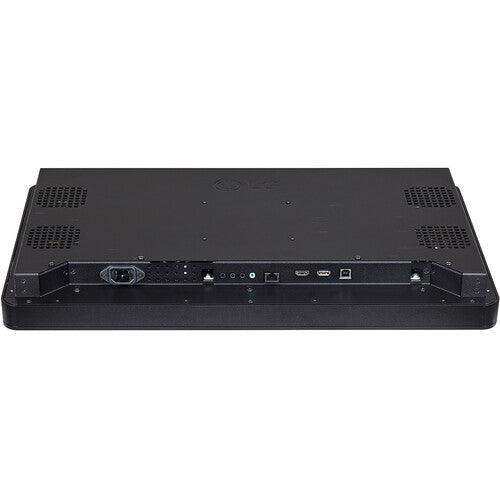

• Flexible Connectivity and Control — Dual HDMI (HDCP 2.2/1.4), USB 2.0, RJ45 LAN, built-in Wi-Fi, and RS-232C support let integrators feed and control the display over wired or wireless paths.
• Remote Web Monitoring — A web-based monitoring solution and optional LG ConnectedCare let teams check status and adjust settings from a phone or PC anywhere on the network.

Typical Applications

• Commercial meeting space — Compact wayfinding and information signage in exposed entry or courtyard areas.
• Government space — Outdoor-facing public notice and directory displays at facility exteriors and transit points.

Technical Specifications

Frequently Asked Questions

Is the 22XE1J-B rated for fully exposed outdoor installation?
Yes. It carries an IP56 rating against dust and high-pressure water and operates from -20°F to 122°F, so it can be installed in open outdoor and window-facing locations without a separate weather enclosure.

Does it require an external media player for digital signage?
No. The built-in webOS 4.1 SoC with 16 GB storage plays scheduled content on-panel and supports LG SuperSign CMS, so most deployments need no external player.

How does it integrate into a managed AV control system?
The display provides RS-232C control plus RJ45 LAN, dual HDMI, and built-in Wi-Fi, and supports SNMP and remote web monitoring for integration into networked AV management platforms.

What mounting hardware does it use?
It uses a 100 x 100 mm VESA interface and supports both portrait and landscape orientation; outdoor mounts should be rated for the 18.3 lb panel weight.

What warranty and support are included?
The 22XE1J-B ships with a 3-year limited warranty, and optional LG ConnectedCare adds cloud-based remote diagnostics for ongoing fleet maintenance.
