LEA Professional XLRF – Female XLR to Amphenol Anytek Connector
Product Overview

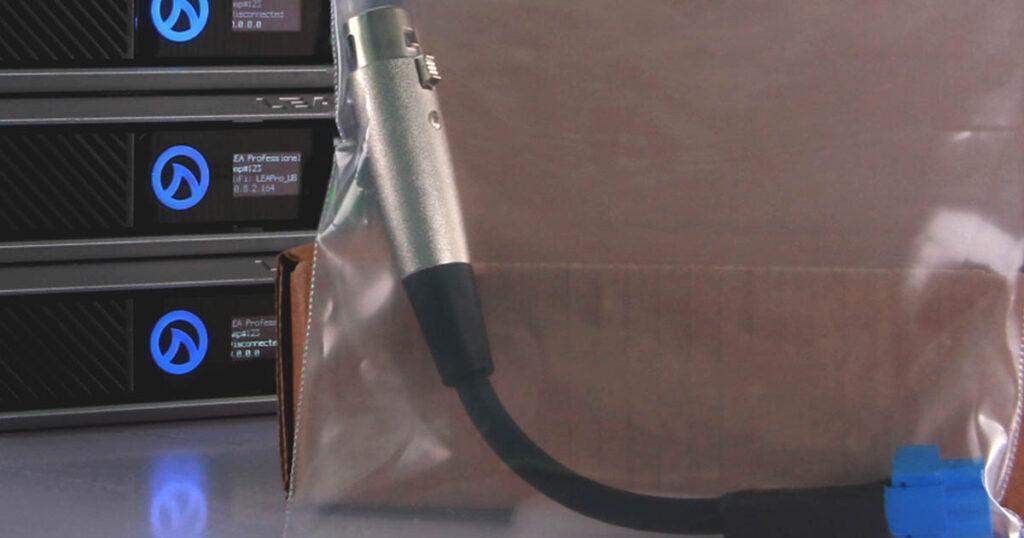

The LEA Professional XLRF is a single female XLR to Amphenol Anytek balanced 3-pin adapter cable, designed to connect standard balanced XLR audio sources directly to the analog inputs of LEA Professional ConnectSeries amplifiers. At 8 inches in length with 22 AWG construction and a nickel-plated XLR female connector, the XLRF provides a clean, purpose-built interface between balanced XLR signal sources — such as DSP processors, mixers, and audio interfaces — and the Amphenol Anytek input connectors used across all LEA ConnectSeries amplifier models. Assembled in the USA with globally sourced parts.
Product Description
LEA Professional ConnectSeries amplifiers use Amphenol Anytek 3-pin balanced connectors for their analog inputs rather than standard XLR jacks. The XLRF adapter resolves this for installations using balanced XLR signal sources, which are the most common output type on professional DSP processors, mixers, Dante to analog converters, and audio interface equipment used in commercial AV.
The adapter is an 8-inch pigtail cable with a female XLR connector on the source end and a male Amphenol Anytek 3-pin plug on the amplifier end. One XLRF adapter is needed per amplifier input channel. The 22 AWG shielded construction maintains signal integrity on the balanced signal path. The XLRF is compatible with all current LEA Professional ConnectSeries amplifier models, including the CS84, CS164, CS354, CS704D, CS352D, CS164D, and others that share the same Amphenol Anytek input connector standard. For unbalanced RCA sources, LEA Professional offers the RCAF-2 adapter (sold separately as a 2-pack).
| Specification | Value |
|---|---|
| Pack Quantity | 1 cable |
| Input Connector | Female XLR (nickel-plated, 3-pin) |
| Output Connector | Male Amphenol Anytek 3-pin (balanced) |
| Cable Length | 8 inches (per cable) |
| Wire Gauge | 22 AWG |
| Signal Type | Balanced XLR to balanced 3-pin |
| Assembly | Assembled in the USA, globally sourced parts |
| Compatible Amplifiers | LEA Professional ConnectSeries (all models) |
Key Features
- Female XLR to Amphenol Anytek 3-pin — Bridges standard balanced XLR sources to LEA ConnectSeries amplifier analog inputs without custom wiring.
- 8-inch pigtail length — Adequate slack for clean installation behind a rack-mounted amplifier panel.
- Balanced signal path maintained — XLR to Amphenol Anytek connection preserves the balanced audio signal from source to amplifier input.
- 22 AWG construction — Suitable for balanced line-level signals in installed AV environments.
- Nickel-plated XLR connector — Durable finish for reliable repeated connection cycles.
- USA-assembled — Quality-controlled assembly with globally sourced components.
- Universal ConnectSeries compatibility — Works with CS84, CS164, CS354, CS704D, CS352D, CS164D, and all other LEA ConnectSeries models using Amphenol Anytek inputs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Pack Contents | 1 x XLR Female to Amphenol Anytek adapter cable |
| XLR Connector Type | Female XLR, nickel-plated, 3-pin |
| Amphenol Connector Type | Male Amphenol Anytek balanced 3-pin |
| Cable Length | 8" (203 mm) |
| Wire Gauge | 22 AWG |
| Signal Balance | Balanced (XLR pin 2 hot, pin 3 cold, pin 1 ground) |
| Origin | Assembled in the USA |
