Lab Gruppen LUCIA 60/1-70 Compact Mono Amplifier for High-Impedance 70V Installations (1 x 60W) - LUCIA60/1-70

Product Overview

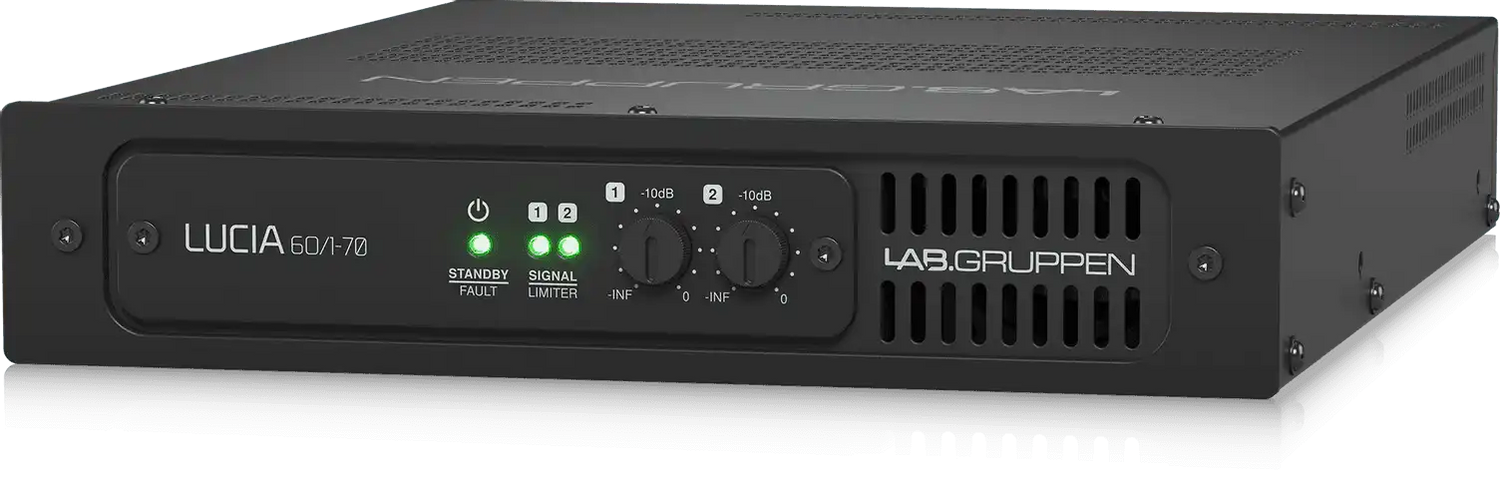

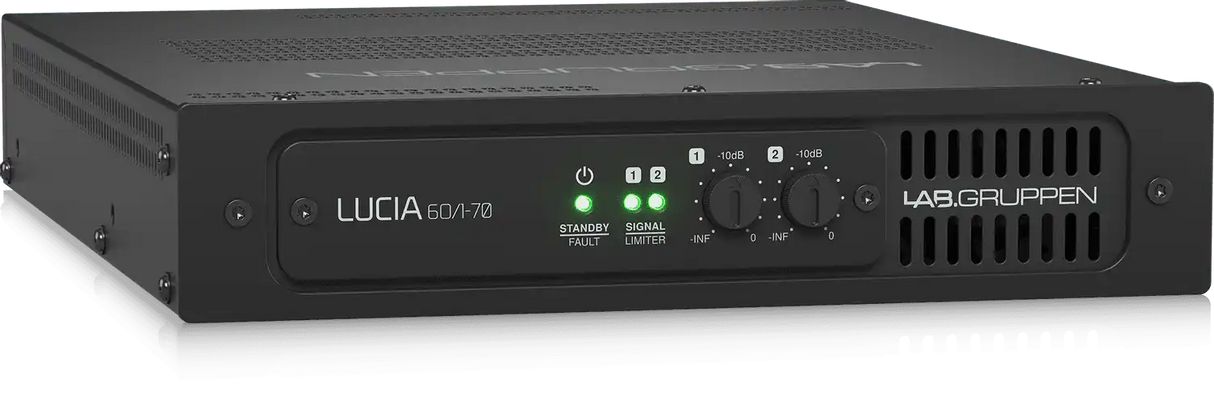

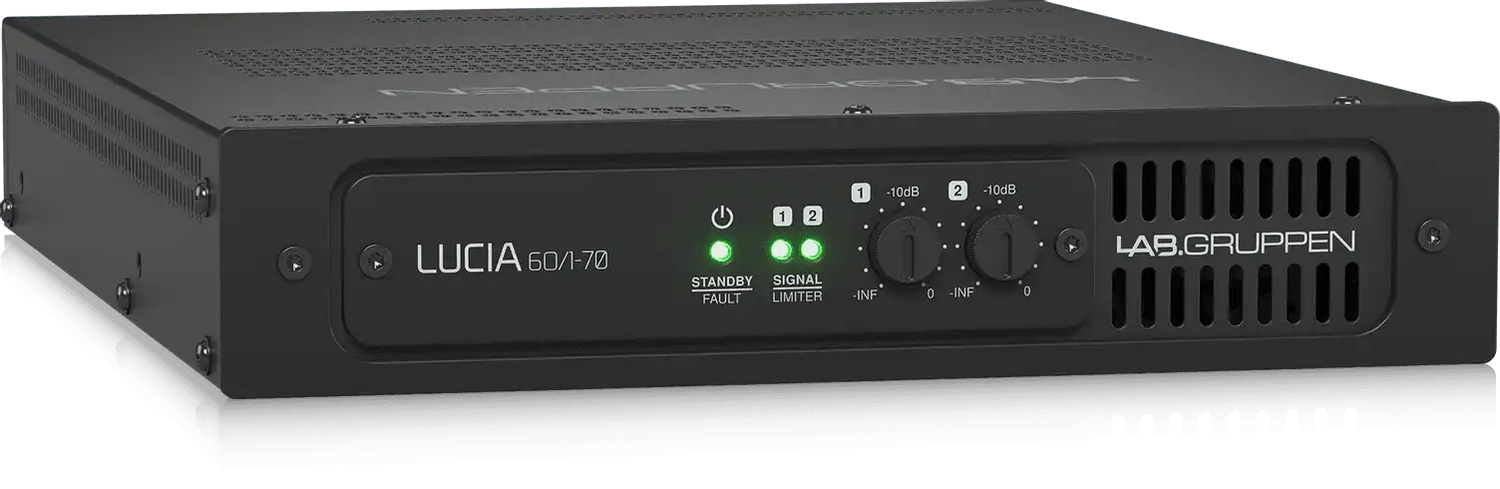

The Lab Gruppen LUCIA 60/1-70 is a mono, 60W constant-voltage installation amplifier for small 70V and 100V distributed speaker systems in commercial AV applications. Delivering 60W at 70V or 30W at 100V from a compact half-rack enclosure, it is the entry-level 70V model in the LUCIA series and is well-suited for small conference rooms, huddle rooms, and ancillary commercial spaces with limited distributed speaker counts. The LUCIA 60/1-70 includes onboard DSP, auto load sense, and GPIO control capability in a localized, decentralized form factor.

Product Description

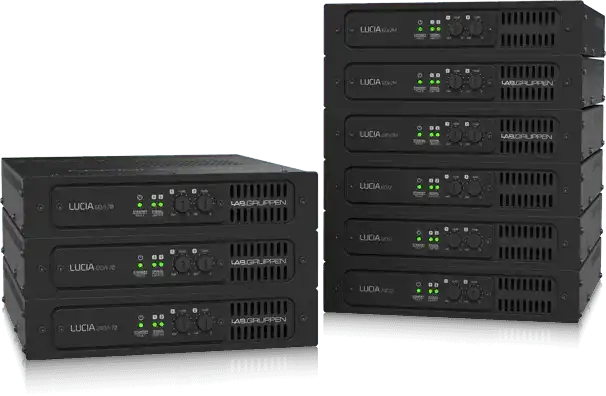

The LUCIA 60/1-70 is Lab Gruppen's most compact 70V installation amplifier, providing 60W at 70V or 30W at 100V in a half-rack enclosure that installs near the speaker zone. It also supports 16-ohm direct loads for hybrid speaker system configurations. As the lowest-output 70V model in the LUCIA series, it addresses small distributed speaker zones — typically two to six ceiling speakers in a single small room — without the cost or size of a higher-output amplifier. The Class-D topology minimizes heat generation in thermally constrained installation environments such as ceiling plenums, above-ceiling equipment spaces, and millwork enclosures. Onboard DSP covers equalization, automatic dynamic loudness contouring, and auto load sense, which measures the total distributed speaker load after installation and automatically sets the variable power limiter to protect the speaker circuit. Input connectivity includes a balanced Euroblock line input and dual RCA unbalanced inputs. A GPIO block provides external control system integration for zone muting or power triggering. The included wall-mount bracket enables concealed installation above ceilings or behind displays; rack integration uses the optional LUCIA-RACKKIT. The LUCIA 60/1-70 is a practical choice for AV integrators deploying multiple small 70V zones on a commercial project where individual zone amplifiers need to be compact, locally placed, and cost-efficient.

Key Features

• 60W at 70V / 30W at 100V — Supports 70V and 100V constant-voltage systems plus 16-ohm direct loads; suited to small distributed speaker zones with moderate speaker counts.
• Class-D Efficiency — Low thermal output for installation in ceiling plenums and other thermally limited spaces.
• Built-in DSP — Onboard equalization and dynamic processing for standard distributed audio scenarios without external signal processing.
• Auto Load Sense — Automatically measures total 70V speaker load and configures the variable power limiter for ongoing speaker protection.
• Automatic Dynamic Loudness Contouring — Maintains consistent tonal balance at ambient volume levels in commercial spaces.
• GPIO Control Block — 6-pin GPIO output for control system integration with Crestron, Extron, AMX, and similar platforms.

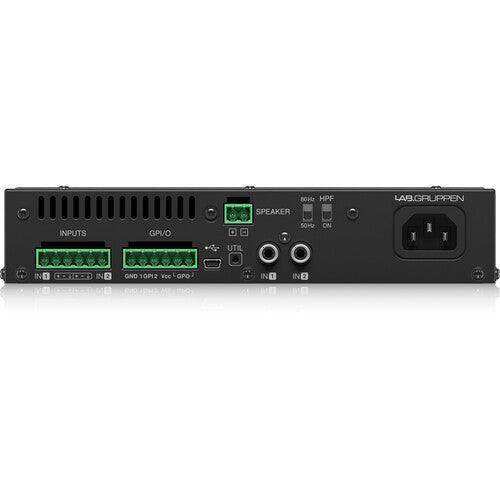

• Balanced and Unbalanced Inputs — Euroblock balanced and dual RCA unbalanced inputs for professional and consumer source connections.
• Half-Rack Compact Enclosure — Deploys above ceilings, in closets, or behind displays; rack-mountable using the optional LUCIA-RACKKIT.

Typical Applications

• Huddle room
• Conference room
• Training room
• Commercial meeting space
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Q: How many ceiling speakers can the LUCIA 60/1-70 drive at 70V?

A: Total speaker tap wattage across the zone must not exceed 60W. For example, six speakers tapped at 10W each equals 60W — the capacity limit. Auto load sense will measure and verify the circuit after installation.

Q: When should I choose the LUCIA 60/1-70 versus the LUCIA 120/1-70?

A: Use the LUCIA 60/1-70 for small zones with a limited number of low-wattage speakers where 60W at 70V is sufficient. Use the LUCIA 120/1-70 when the total speaker tap wattage in a zone approaches or exceeds 60W, or when greater output headroom is needed for dynamic content.

Q: Does the LUCIA 60/1-70 require an external DSP?

A: Not for standard 70V zone installations. The onboard DSP covers equalization, loudness contouring, and auto load sense. An external DSP can be connected via the balanced Euroblock line input if more complex signal processing is needed.

Q: Can this amplifier be mounted above a drop ceiling?

A: Yes. The wall-mount bracket and compact half-rack enclosure are designed for concealed above-ceiling and in-wall installations. The Class-D topology keeps heat output low, which is important for plenum-adjacent installations.

Q: What control integration options are available?

A: The 6-pin GPIO block supports external muting, zone triggering, and basic level control from Crestron, Extron, AMX, or other control platforms.

Q: Can the LUCIA 60/1-70 be rack-mounted?

A: Yes, using the optional Lab Gruppen LUCIA Rackmount Kit (LUCIA-RACKKIT), which accommodates one or two LUCIA amplifiers in a standard 19" rack bay occupying 1RU.
