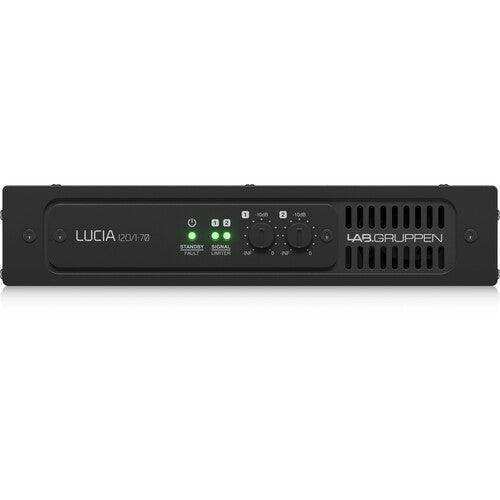

Lab Gruppen LUCIA 120/1-70 Compact Mono Amplifier for High-Impedance 70V Installations (1 x 120W) - LUCIA120/1-70

Product Overview

The Lab Gruppen LUCIA 120/1-70 is a mono, 120W constant-voltage installation amplifier for 70V and 100V distributed speaker systems in small to medium commercial AV spaces. Delivering 120W at 70V or 60W at 100V from a compact half-rack enclosure, it supports distributed audio zones in conference rooms, training rooms, and commercial meeting spaces where a localized 70V amplifier is preferable to a centralized rack unit. The LUCIA 120/1-70 includes onboard DSP, auto load sense, and GPIO control capability.

Product Description

The LUCIA 120/1-70 occupies the mid-range of Lab Gruppen's 70V LUCIA compact amplifier lineup, positioned between the LUCIA 60/1-70 and the LUCIA 240/1-70. It operates at 70V (120W) or 100V (60W) constant-voltage and also supports 16-ohm direct loads for flexibility in mixed speaker configurations. The Class-D topology delivers energy-efficient operation in thermally constrained spaces such as ceiling plenums, millwork enclosures, and areas above drop ceilings. As with all LUCIA series amplifiers, the 120/1-70 supports decentralized installation: the amplifier is placed in the speaker zone rather than at a central equipment room, reducing cable infrastructure and simplifying multi-zone system design. Onboard DSP handles equalization, automatic dynamic loudness contouring, and auto load sense — which measures total distributed speaker load impedance and sets the variable power limiter automatically. Input connectivity includes a balanced Euroblock line input and dual RCA unbalanced inputs. A GPIO output block provides control system integration for remote muting or zone triggering. For distributed audio systems requiring 120W at 70V per zone — such as a conference center with multiple small rooms, or a training facility with separate audio zones — the LUCIA 120/1-70 provides a compact, cost-effective amplifier that does not require a large central rack infrastructure.

Key Features

• 120W at 70V / 60W at 100V — Supports both 70V and 100V constant-voltage distributed speaker systems, plus 16-ohm direct loads, from a single amplifier.
• Class-D Efficiency — Low heat output for installation in thermally limited spaces including ceiling plenums and millwork enclosures.
• Built-in DSP — Onboard equalization and dynamic processing covers standard 70V distributed audio scenarios without external DSP.
• Auto Load Sense — Measures total speaker tap wattage on the 70V circuit and configures the variable power limiter automatically during commissioning.
• Automatic Dynamic Loudness Contouring — Maintains consistent perceived tonal balance across volume levels in ambient commercial environments.
• GPIO Control Output — 6-pin balanced GPIO block for room control system integration and zone triggering.

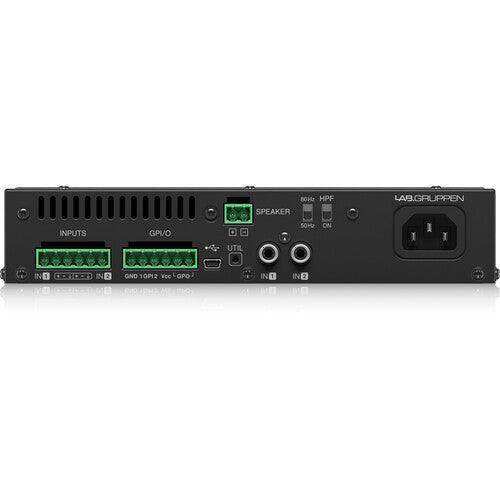

• Balanced and Unbalanced Inputs — Euroblock balanced and dual RCA unbalanced inputs for professional and consumer source connections.
• Half-Rack Compact Enclosure — Deploys above ceilings, in closets, or behind displays; rack-mountable via optional LUCIA-RACKKIT.

Typical Applications

• Conference room
• Training room
• Commercial meeting space
• Multi-purpose room
• House of worship
• Government space

Technical Specifications

Frequently Asked Questions

Q: How many 70V speakers can the LUCIA 120/1-70 drive?

A: The total speaker tap wattage across all speakers in the 70V zone must not exceed 120W. For example, eight speakers each tapped at 15W equals 120W — the maximum for this amplifier at 70V. Auto load sense will verify the total load after installation.

Q: When should I use the LUCIA 120/1-70 vs the LUCIA 240/1-70?

A: Use the LUCIA 120/1-70 for smaller zones with fewer or lower-wattage speakers where 120W at 70V is sufficient. Use the LUCIA 240/1-70 for larger zones or where higher output headroom is needed. Both amplifiers share the same physical form factor and feature set.

Q: Does auto load sense work differently on 70V systems?

A: On 70V systems, auto load sense measures the effective impedance of the distributed speaker circuit (determined by the total tapped wattage of all speakers) and configures the variable power limiter accordingly. This is equivalent in function to the Lo-Z models but calibrated for constant-voltage operation.

Q: Is external DSP required?

A: In most standard 70V zone installations, no. The LUCIA 120/1-70 includes onboard DSP with equalization, loudness contouring, and auto load sense. An external DSP can be connected via the balanced line input for more complex system architectures.

Q: Can the LUCIA 120/1-70 be rack-mounted?

A: Yes, using the optional Lab Gruppen LUCIA Rackmount Kit (LUCIA-RACKKIT), which fits one or two LUCIA amplifiers per 1RU in a standard 19" rack enclosure.

Q: What control system integration is available?

A: The 6-pin GPIO block supports muting, zone triggering, and basic level control via third-party control systems including Crestron, Extron, and AMX.
