Kramer VM-216H/110V 2x16 HDMI Distribution Amplifier
Kramer VM-216H/110V 2x16 HDMI Distribution Amplifier is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Kramer VM-216H/110V 2x16 HDMI Distribution Amplifier
Product Overview

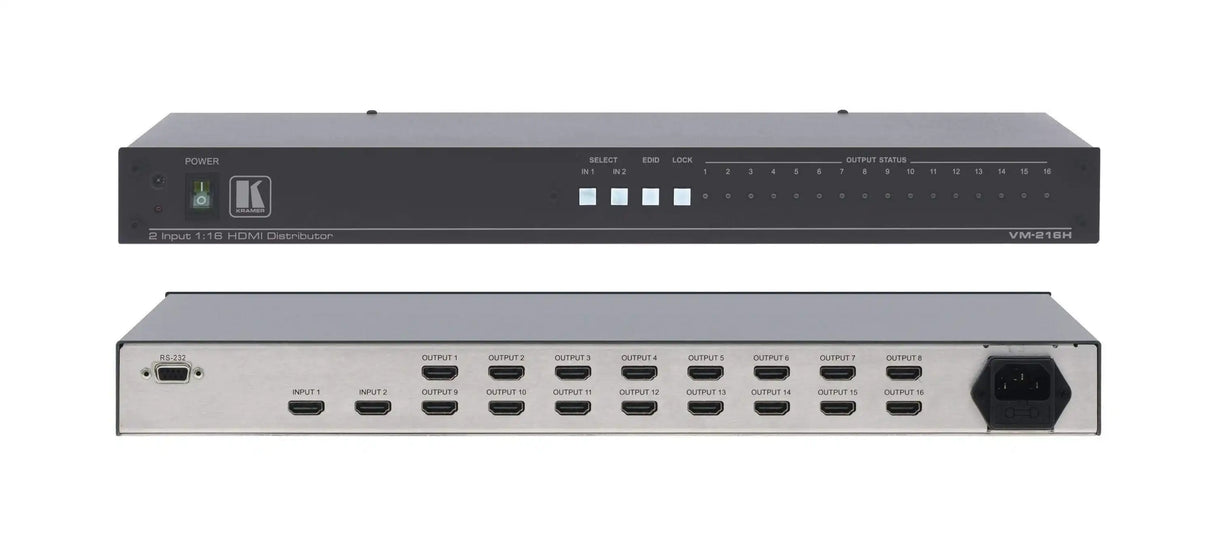

The Kramer VM-216H is a 2×1:16 switchable HDMI distribution amplifier that selects between two HDMI inputs and distributes the active signal to 16 identical outputs — combining source switching and high-output-count distribution in a single 1U rack-mount unit. AV integrators specify the VM-216H for large-venue multi-display installations where two sources (such as a presentation computer and a backup media player) must be distributed to up to 16 displays simultaneously, with RS-232 and IR remote control of source selection. The unit reclocks and equalizes the HDMI signal on all 16 outputs using Kramer Equalization and re-Klocking technology for reliable signal delivery across extended cable runs. HDCP compliance and EDID pass-through ensure protected content and plug-and-play operation across all connected displays.
Key Features
- 2×1:16 Switchable HDMI Distribution — Selects between 2 HDMI inputs and distributes to 8 or 16 HDMI outputs simultaneously.
- Kramer Equalization and re-Klocking — Rebuilds signal integrity on all outputs for reliable long-cable delivery.
- RS-232 and IR Control — Remote source switching via RS-232 serial control and IR remote transmitter.
- HDCP Compliant — Passes protected HDMI content to all outputs without handshake errors.
- HDMI Feature Support — Deep Color, x.v.Color, Lip Sync, CEC, and 3D pass-through.
- EDID Pass-Through — Automatic EDID management ensures plug-and-play with connected displays.
- Active Output LED Indicators — Per-output status LEDs for commissioning and fault identification.
- 1U Rack-Mount — Standard 19-inch 1U form factor with universal 100–240V AC supply.
Typical Applications
- Auditorium and performing arts center multi-display distribution
- University lecture hall and classroom 16-display feed
- Corporate all-hands room and large training room displays
- Digital signage networks with primary and backup source
- House of worship IMAG and overflow display systems
Technical Specifications
| Parameter | Value |
|---|---|
| Inputs | 2x HDMI connectors |
| Outputs | 8 or 16x HDMI connectors (switchable) |
| Max Data Rate | 6.75Gbps (2.25Gbps per graphic channel) |
| Standards | HDMI, HDCP |
| HDMI Features | Deep Color, x.v.Color, Lip Sync, CEC, 3D |
| Control | RS-232; IR remote |
| Power | 100–240V AC, 50/60Hz (universal) |
| Form Factor | 19-inch, 1U rack-mount (rack ears included) |
Frequently Asked Questions
Can the VM-216H switch between sources via Ethernet or a room control system?
The VM-216H supports RS-232 and IR remote control for source switching. For Ethernet-controlled HDMI distribution with switching, see the VM-10H2 or DIP-20 series at https://creationnetworks.net.
What HDMI resolutions does the VM-216H support?
The VM-216H supports HDMI signals up to HDMI 1.4 bandwidth (6.75Gbps / 2.25Gbps per graphic channel), including 1080p60 and standard HD formats. It is not rated for 4K signals. For 4K distribution with switching, see the VM-218DT series.
Can it run with 8 outputs instead of 16?
Yes. The VM-216H supports operation with 8 or 16 HDMI outputs, configurable for installations where not all 16 output ports are used.
