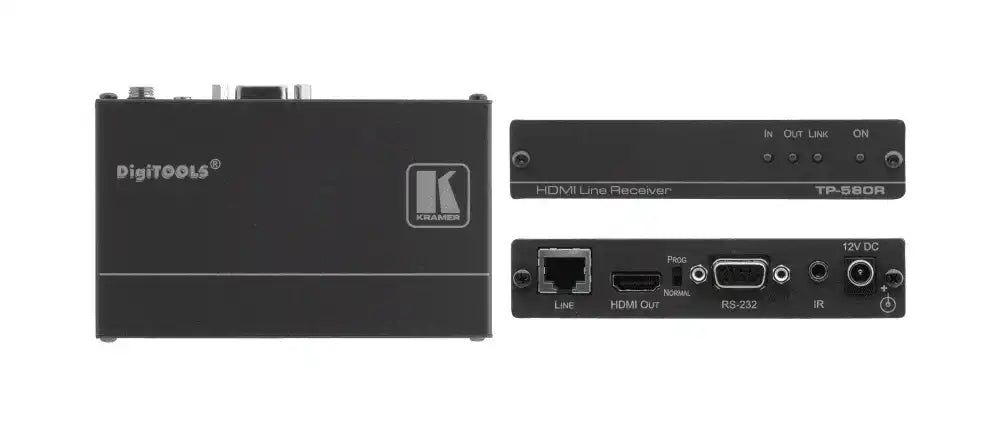

Kramer TP-580R 4K60 4:2:0 HDMI HDCP 2.2 Receiver with RS232 & IR over LongReach HDBaseT
Kramer TP-580R 4K60 4:2:0 HDMI HDCP 2.2 Receiver with RS232 & IR over LongReach HDBaseT is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Kramer TP-580R 4K60 4:2:0 HDMI HDCP 2.2 Receiver with RS232 & I...
Product Overview
The Kramer TP-580R is a long-reach HDBaseT receiver for 4K@60Hz (4:2:0) HDMI, bidirectional RS-232, and IR signals, receiving an HDBaseT signal from a compatible transmitter and converting it back to HDMI at the display end. It pairs primarily with the Kramer TP-580T transmitter but is compatible with any HDBaseT-certified transmitter. AV integrators install the TP-580R at the display location in conference rooms, classrooms, and auditoriums to terminate a Cat cable run from the equipment rack or presenter position, providing a clean HDMI output to the connected display alongside bidirectional RS-232 and IR for display control from the source end. DigiTOOLS form factor allows three units to rack-mount side-by-side in 1U.
Key Features
- 4K@60Hz (4:2:0) HDBaseT Reception — Receives 4K HDMI over Cat cable, up to 40m at 4K / 70m at 1080p.
- Bidirectional RS-232 and IR — Control signals flow in both directions for display management from source end.
- HDCP Compliant — Passes protected HDMI content including 4K.
- I-EDIDPro EDID Processing — Automatic EDID pass-through for reliable source/display handshaking.
- HDBaseT Certified — Compatible with any HDBaseT-compliant transmitter.
- DigiTOOLS Form Factor — 3 units fit in 1U rack with optional adapter.
Typical Applications
- Conference room display-end HDBaseT receiver for Cat cable run
- Classroom and lecture hall projector HDBaseT termination
- Boardroom display HDBaseT connection from equipment rack
- Digital signage display-end Cat cable receiver
Technical Specifications
| Parameter | Value |
|---|---|
| Input | 1x HDBaseT (RJ-45) |
| Output | 1x HDMI; RS-232 (bidirectional); IR |
| Max Resolution | 4K@60Hz (4:2:0) |
| Max Data Rate | 10.2Gbps (3.4Gbps per graphic channel) |
| System Range | 40m (130ft) at 4K; 70m (230ft) at 1080p over Cat6 |
| Standards | HDCP, HDBaseT |
| Form Factor | DigiTOOLS — 3 units fit in 1U rack with optional adapter |
Frequently Asked Questions
What transmitter pairs with the TP-580R?
The TP-580R pairs primarily with the Kramer TP-580T. It is HDBaseT-certified and compatible with any HDBaseT-compliant transmitter. For extended range, pair the TP-580RXR receiver with the TP-580TXR transmitter.
For a longer cable run, what receiver should I use?
For runs up to 100m at 4K@60Hz (4:2:0), use the Kramer TP-580RXR extended-reach receiver with the TP-580TXR transmitter. For runs up to 180m at 1080p, use Kramer BC-UniKat cables with the extended-reach pair.
