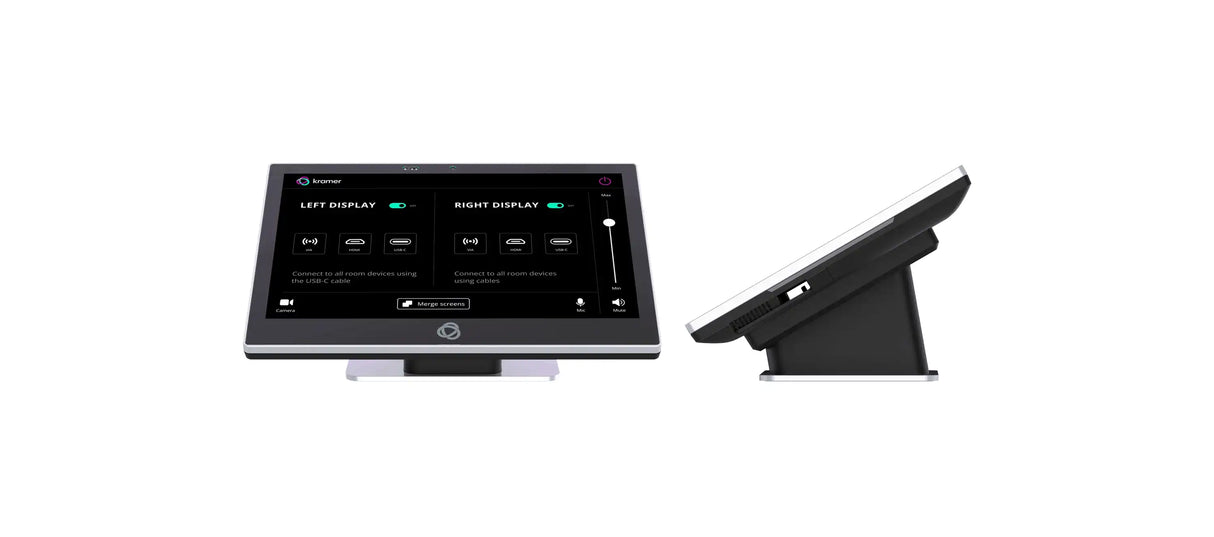

Kramer KT-2010 10–Inch Wall & Table Mount PoE Touch Panel

Product Overview

The Kramer KT-2010 is a 10-inch IPS PoE touch panel designed for commercial AV control in conference rooms, boardrooms, and managed meeting spaces, powered and connected over a single Ethernet cable. Running Android 11, it operates as a Kramer Control room interface or room scheduling display, delivering a fully customizable graphical user interface without requiring a separate power supply at the installation point. AV integrators and IT managers deploy the KT-2010 where a high-resolution, commercial-grade touch panel is needed at the room entrance or table, with the entire installation managed over the facility network. Its dual table and wall mounting options, locking bracket, and built-in camera, microphone, and speaker make it a complete room control endpoint in a single device.

Product Description

The KT-2010 features a 10.1-inch IPS display with 1920x1200 WUXGA resolution and PCAP multi-touch, providing sharp, readable room control interfaces even at wide viewing angles. The i.MX8M Plus Quad Core A53 processor with 4GB RAM and 32GB storage handles complex Kramer Control interfaces, H.265 video, and real-time room scheduling applications without performance bottlenecks. Power over Ethernet (PoE 802.3at) delivers both data and power over the same RJ-45 connection, eliminating the need for a power adapter at the mounting location — critical for clean conference room installations. Wi-Fi 6 and Bluetooth 5.0 provide wireless connectivity options for deployments where wired Ethernet at the panel position is impractical. The built-in 5MP camera supports video intercom and occupancy detection integrations, while the dual built-in microphones and 2x1W speaker support audio interaction with room control platforms. Ambient light and proximity sensors allow automatic display brightness adjustment and screen wake, reducing power consumption when the room is unoccupied. Locking mount options prevent unauthorized removal, and the LED sidebars on the KT-2010WM variant provide visual room status indication compatible with third-party room booking platforms.

Key Features

• 10.1-inch WUXGA IPS Touch Display — 1920x1200 resolution with PCAP 10-point multi-touch and ±80° horizontal/vertical viewing angles for clear room control interfaces.
• Single-Cable PoE Installation — IEEE 802.3at PoE over RJ-45 delivers both power and network connectivity, eliminating local power adapters at the panel.
• i.MX8M Plus Quad Core Processor — ARM Cortex-A53, 4GB LPDDR4 RAM, 32GB eMMC storage for smooth operation of Kramer Control and scheduling applications.
• Android 11 OS — Open Android platform supports Kramer Control and third-party room management applications.
• Wi-Fi 6 and Bluetooth 5.0 — Advanced wireless connectivity for flexible deployment where wired Ethernet at the panel position is not available.
• Built-in Camera, Microphone, and Speaker — 5MP front camera, dual microphones, and 2x1W speaker for video intercom and audio interaction with control platforms.
• Ambient Light and Proximity Sensors — Auto-adjusts display brightness and wakes screen on approach to conserve power in unoccupied rooms.
• Flexible Mounting — Includes both tabletop and 75x75mm VESA wall mount options with locking bracket to prevent unauthorized removal.
• Kramer Control Compatible — Native support for Kramer Control cloud-based and on-premises AV control platform.

Typical Applications

• Conference room and boardroom AV control interface
• Meeting room and huddle room scheduling display
• Corporate all-hands room and multi-purpose room control
• University classroom and lecture hall AV panel
• Government meeting room and chamber control point
• Commercial meeting space room booking display

Technical Specifications
