K-Array Domino KF212 – 12" Passive Stainless Steel Full-Range Speaker (Black)

Product Overview

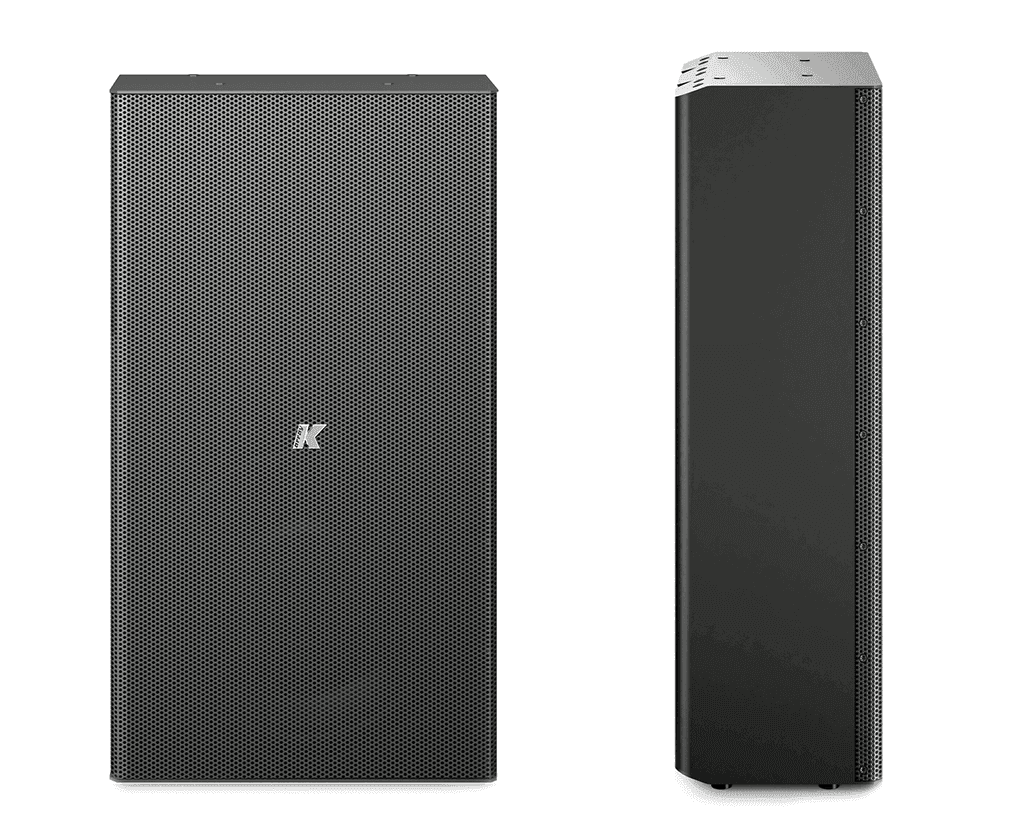

The K-Array Domino KF212 is a 12-inch passive stainless steel full-range speaker engineered for commercial AV installations that need high output from a remarkably shallow enclosure. At just 20 cm deep, this 8-ohm point source loudspeaker delivers 130 dB peak SPL and 40 Hz to 19 kHz response, making it a strong choice for auditoriums, houses of worship, and multi-purpose rooms where a low-profile surface-mount speaker must carry both speech and full-range music. A coaxial 12" woofer with a 1.7" compression driver and a 12" passive radiator gives the KF212 extended low end without a separate subwoofer in many designs. Wall brackets are included, simplifying installation planning.

Product Description

The KF212 is the largest and most powerful model in K-array's Domino full-range line. Its coaxial transducer arrangement places the 1.7" compression driver with titanium dome at the acoustic center of the 12" woofer, producing a consistent 90-degree horizontal by 60-degree vertical coverage pattern across the listening area. The 12" passive radiator extends bass response down to 40 Hz from an enclosure only 200 mm deep, so the speaker mounts close to walls in rooms where conventional deep-cabinet boxes would intrude into the space. The stainless steel chassis carries an IP43 rating and is offered in black, white, custom RAL, and premium 24K gold, polished, and brushed finishes for design-driven projects.

As a passive 8-ohm loudspeaker rated at 700 W, the KF212 integrates with standard professional amplification; K-array specifies dedicated presets loaded on its own amplifier platforms to achieve published performance. Audio connection is via an included 4-pin euroblock connector, a convenient termination for fixed commercial installations. Integrators deploying the Domino line in auditoriums or all-hands rooms can mix the KF212 with the smaller KF26 and KF210 models for zone-matched coverage. This listing is the black finish; a white version (KF212W) is also available, and the complete K-Array collection includes matching amplifiers and mounting accessories.

Key Features

• Coaxial 12" Driver with Compression Tweeter — A 12" woofer with a coaxially mounted 1.7" compression driver and titanium dome produces a coherent point source with consistent coverage across the room.
• 12" Passive Radiator Bass Extension — The passive radiator extends response down to 40 Hz, often eliminating the need for a separate subwoofer in speech-and-music installations.
• Slim 20 cm Enclosure Depth — The shallow stainless steel cabinet mounts close to walls, preserving floor space and sightlines in architecturally sensitive rooms.
• 130 dB Peak SPL Output — With 700 W rated power handling and 100 dB sensitivity, the KF212 delivers concert-capable output for large commercial spaces.
• Standard 8-Ohm Passive Design — The nominal 8-ohm load works with professional installation amplifiers, with K-array amplifier presets available for manufacturer-specified voicing.
• Wall Brackets Included — Factory wall-mount brackets ship with the speaker, reducing installation cost and specification work.
• IP43-Rated Stainless Steel Build — The weather-resistant chassis suits humid or semi-protected environments, with further protection available via the K-KUIP12 accessory.

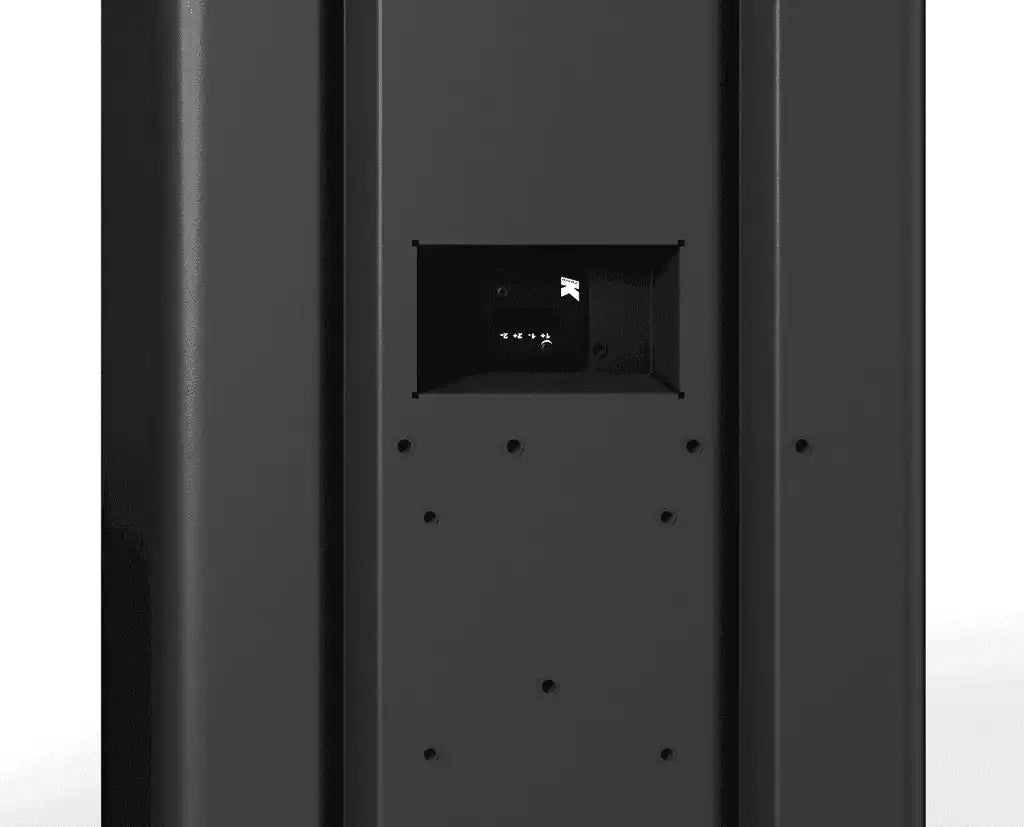

• Euroblock Connectivity — The included 4-pin euroblock connector provides a secure, low-profile termination standard in fixed commercial AV installations.

Typical Applications

• Auditorium main and fill coverage
• House of worship music and speech reinforcement
• Multi-purpose room and all-hands room sound systems
• Government space audio reinforcement
• Commercial meeting space program audio
• Broadcast studio playback and monitoring zones

Technical Specifications

Frequently Asked Questions

What amplifier does the KF212 require?

The KF212 is a passive 8-ohm loudspeaker rated at 700 W. K-array specifies dedicated presets loaded on its own amplifier platforms to achieve published frequency response, though the standard 8-ohm load is compatible with professional installation amplifiers with appropriate DSP.

Is mounting hardware included?

Yes, wall-mount brackets ship in the box. Additional accessories, such as pole-mount adapters, are available separately from the K-array accessory line.

Does the KF212 need a subwoofer?

In many speech and foreground music designs, no. The 12" passive radiator extends response to 40 Hz. For high-output dance or live music programs, K-array subwoofers can be added with matched presets.

Can the KF212 be used in semi-outdoor spaces?

The stainless steel enclosure carries an IP43 rating, suitable for covered or semi-protected environments. K-array offers the K-KUIP12 accessory for more complete water protection.

How does the KF212 connect to the audio system?

Audio connects via a 4-pin euroblock connector, which is included. This termination is standard in fixed commercial AV installations and supports loop-through wiring practices common in distributed systems.

What warranty applies to this product?

K-array provides a 5-year manufacturer warranty on its loudspeaker products. Contact Creation Networks for system design assistance, integration questions, or warranty service coordination.
