JBL NCSM28-U-US Eight Inputs/Two Outputs Commercial Series Mixer

Availability: Call for Availability
Availability: Direct Ship
JBL SKU: CSM28
No reviews
Price:
$554.00 $856.59

Description

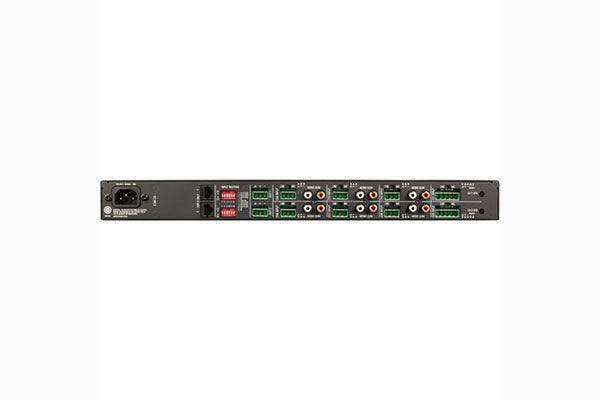

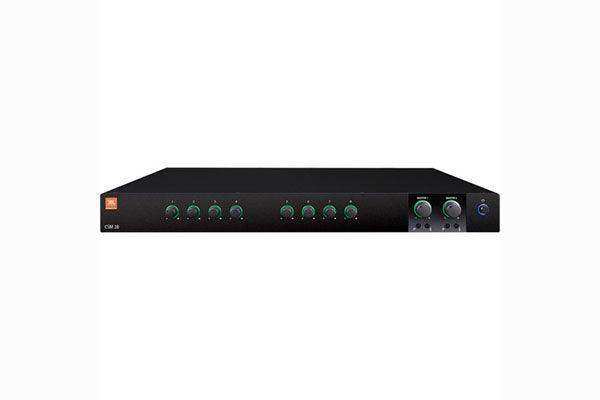

The CSM 28 - Eight Inputs/Two Outputs Commercial Series Mixer by JBL is backed by the combined technological prowess of multiple Harman brands and can be easily configured for a wide range of applications such as providing background music, security, and paging in schools, hospitals, restaurants, and fitness facilities. For I/O, the mixer features Euroblock type mic/line input and output connectors, as well as unbalanced RCA inputs. The chassis features illuminated rings that makes them easier to see and use for the dedicated volume, bass, and treble controls. The rear panel of the mixer features an array of DIP switches for configurable input/output routing.

Amplifier
Form Factor/Type Tabletop
Number of Channels 8 Input / 2 Output
Performance
Frequency Response 20 Hz to 20 kHz ±1 dB
Input Sensitivity Mic:
3 mVrms
Line:
300 mVrms
RCA:
300 mVrms
I/O Impedance Mic Input:
400 Ohms
Line Input:
20 Kilohms
RCA Input:
50 Kilohms
Output Level Line Output:
5 Vrms (10-Kilohm Load)
SNR > 90 dB
THD 0.05%
Crosstalk > 70 dB
Signal Processing
EQ Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10 kHz
Ducking/Muting Yes
Connectivity
Phantom Power 27 VDC
Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Physical
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature 68 to 185°F / -20 to 85°C
Operating Humidity 0 to 95% (Non-Condensing)
Dimensions 17.2 x 1.7 x 11.9" / 437.0 x 43.3 x 303.4 mm
Weight 7.5 lb / 3.4 kg
