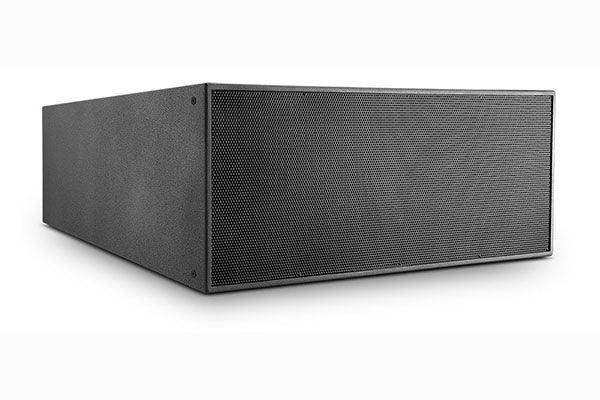

JBL P3267MX – Three-Way VLA Line Array Module with 30° Horizontal Coverage

Product Overview

The JBL P3267MX is a three-way permanent-install line array module from the Variable Line Array (VLA) series, configured for 30-degree horizontal dispersion and engineered for long-throw focused coverage in narrow-room or high-ceiling commercial venues. Featuring 2 × 15-inch LF drivers, 2 × 8-inch MF drivers, and 3 × 1.5-inch exit HF compression drivers, the P3267MX is the tighter-coverage complement to the broader 60-degree and 90-degree VLA series variants — delivering precise, focused throw for applications including deep auditoriums, narrow churches, and long transportation concourses where controlled horizontal beam spread is essential for maintaining SPL and intelligibility. Advanced Neodymium transducer technology and rugged DuraFlex construction support long-term commercial fixed installations, with optional JBL WRC/WRX weatherization available for outdoor venues.

Product Description

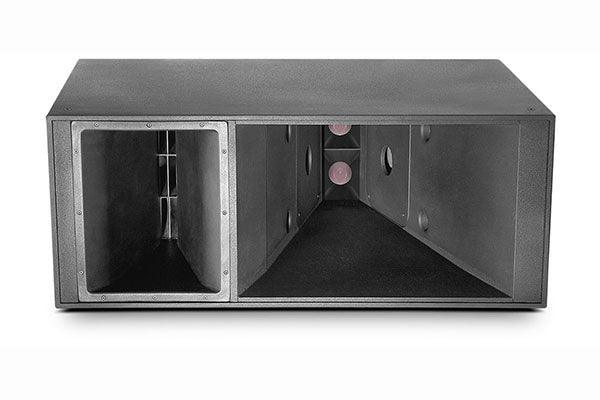

The P3267MX provides a standard-output three-way driver configuration — 2 × 15" LF, 2 × 8" MF, and 3 × 1.5" exit compression HF — using Neodymium Differential Drive technology for high output with reduced enclosure weight. The 30-degree horizontal pattern delivers tightly controlled horizontal dispersion suited to narrow-audience-plane venues where wider coverage angles would result in excessive off-axis energy on walls, balcony fronts, or side surfaces. The VLA series' modular architecture allows integrators to specify mixed-coverage arrays, combining 30-degree, 60-degree, and 90-degree modules within the same rigged array for complex venue geometries requiring variable horizontal control at different vertical positions. Comprehensive rigging attachment points support multi-cabinet configurations, and the DuraFlex-finished exterior-grade Baltic birch plywood enclosure — with optional fiberglass — provides durability across fixed commercial installation environments. Optional WRC and WRX factory weatherization treatments extend the P3267MX to outdoor amphitheatres and open-air permanent venue installations.

Key Features

• 30° Horizontal Coverage Pattern — Tight horizontal dispersion suited to narrow rooms, long-throw deep auditoriums, and focused array configurations where controlled horizontal spread is a design requirement.
• Three-Way Driver Configuration — 2 × 15" LF, 2 × 8" MF, and 3 × 1.5" exit HF drivers provide full-range commercial-grade sound reinforcement from a single modular line array cabinet.
• VLA Series Permanent Install Architecture — Comprehensive rigging points support scalable multi-cabinet line array configurations in arenas, auditoriums, and large houses of worship.
• Neodymium Differential Drive Technology — Advanced transducer design delivers high output with reduced weight across all three driver sections for rigging-sensitive commercial installations.
• Mixable Coverage Angles — Can be combined with 60-degree and 90-degree VLA cabinets in the same rigged array for variable horizontal control across complex venue geometry.
• DuraFlex Enclosure Finish — Rugged exterior coating on Baltic birch plywood construction ensures durability in permanent commercial fixed-install environments.
• Optional WRC/WRX Weatherization — Factory weather protection enables outdoor and semi-outdoor permanent venue deployment.

Typical Applications

• Auditorium — deep, narrow auditoriums and performing arts venues requiring controlled 30-degree horizontal coverage to minimize side-wall reflections
• House of worship — long, narrow sanctuary configurations where tight horizontal throw is required to focus coverage on the audience area
• Transportation terminal — long concourses and narrow transit halls requiring tight-beam long-throw paging coverage
• Government space — large legislative and assembly halls with narrow seating planes requiring precise horizontal coverage control
• All-hands room — deep narrow corporate assembly spaces where 30-degree control is specified to prevent side-wall energy buildup
• Broadcast studio — live recording and performance venues using mixed-angle VLA arrays for precision coverage mapping

Technical Specifications

Competitor Comparison

What's in the Box

• JBL P3267MX three-way line array module (30° horizontal coverage)
• Rigging hardware and suspension attachment components
• Documentation and installation guide

Frequently Asked Questions

How does the P3267MX (30°) differ from the P3266MX (90°) and VLA601HI (60°)?

All three are VLA series line array modules using similar driver technology, differentiated by horizontal coverage angle. The P3267MX at 30 degrees is the tightest pattern, suited to long-throw narrow rooms. The VLA601HI at 60 degrees is mid-width for general large-venue use. The P3266MX at 90 degrees is the widest, suited to short-throw broad coverage applications and balcony fills. Systems often combine all three in a single array for variable horizontal control.

Can the P3267MX be used outdoors?

Yes, with optional JBL WRC or WRX factory weatherization treatment. Confirm the appropriate treatment level for your outdoor installation environment with Creation Networks prior to ordering.

Does the P3267MX require external amplification?

Yes. The P3267MX is a passive loudspeaker requiring external amplification and crossover processing. Contact Creation Networks for a complete amplifier and DSP system recommendation for your VLA installation.

What warranty applies to the P3267MX?

JBL Professional products carry a limited manufacturer warranty. Commercial installation terms should be confirmed with an authorized distributor. Creation Networks supports warranty coordination for commercial AV projects.
