HP RP7 7800 – All-in-One POS Terminal
Product Overview

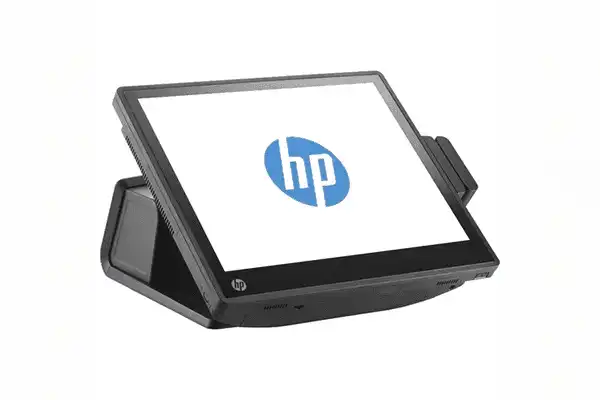

The HP RP7 Retail System Model 7800 is an all-in-one point-of-sale terminal built for long-term deployment in retail and hospitality environments. This unit (M3S14US#ABA) is configured with an Intel Celeron 2.5 GHz processor, 4 GB of DDR3 memory, a 64 GB SSD, and Windows Embedded POSReady 7. As an integrated HP RP7 7800 POS terminal, it combines an adjustable touchscreen display head, retail I/O, and optional integrated peripherals in a single serviceable platform.
Product Description
HP designed the RP7 7800 for general retail, hospitality, and other point-of-sale markets that require a durable counter terminal with integrated retail connectivity. The display head offers a touchscreen with tilt and height adjustment, and the chassis exposes powered USB (12V and 24V), powered serial ports (5V/12V), a cash-drawer connector, and an integrated NIC. The system accepts integrated peripheral modules — a dual-head MSR, fingerprint reader, and webcam — plus an optional customer-facing VFD or 10.4-inch display. Running Windows Embedded POSReady 7, it is suited to standardized retail-checkout rollouts.
Key Features
- Integrated touchscreen display head — Associate-facing touch display with tilt and height adjustment for ergonomic checkout.
- Retail powered I/O — Powered USB (12V/24V), powered serial ports (5V/12V), and a dedicated cash-drawer connector for POS peripherals.
- Integrated peripheral support — Optional dual-head MSR, fingerprint reader, and webcam modules mount directly to the display head.
- Customer-facing display options — Optional two-line VFD or 10.4-inch customer display for transaction visibility.
- Windows Embedded POSReady 7 — Retail-focused OS with touch drivers included for point-of-sale software.
- Serviceable, mountable design — VESA 100 mm mounting support and tool-light access to memory and storage.
Typical Applications
- Retail checkout — Front-of-store point-of-sale lanes and registers.
- Hospitality POS — Restaurant, bar, and quick-service order and payment stations.
- Counter service — Service desks and order counters requiring integrated peripherals.
- Standardized retail estates — Multi-lane and multi-site deployments needing a consistent terminal platform.
Technical Specifications
| Model / SKU | HP RP7 Retail System Model 7800 / M3S14US#ABA |
| Processor | Intel Celeron 2.5 GHz |
| Graphics | Intel integrated graphics |
| Memory | 4 GB DDR3 SDRAM |
| Storage | 64 GB SSD |
| Form Factor | All-in-one POS terminal with integrated touchscreen (VESA 100 mm mountable) |
| Ports / Connectivity | 6x USB, Powered USB 12V/24V, serial ports (5V/12V), cash-drawer connector, RJ-45 NIC, DVI, PS/2, parallel port, line-in/line-out audio |
| Operating System | Windows Embedded POSReady 7 |
| Security | Secured USB port (security screw), optional external cable lock / padlock, optional integrated fingerprint reader |
Frequently Asked Questions
What integrated peripherals does the HP RP7 7800 support?
Optional modules include a dual-head magnetic stripe reader (MSR), fingerprint reader, and webcam that mount directly to the display head, plus a customer-facing VFD or 10.4-inch display.
Can the RP7 be mounted to a wall or arm?
Yes. The terminal supports the VESA 100 mm mounting standard and can be attached to a wall, swing arm, or counter using appropriate brackets.
Does it connect to a cash drawer and powered POS peripherals?
It includes a dedicated cash-drawer connector, powered USB (12V/24V), and configurable powered serial ports (5V/12V) for receipt printers, scanners, and drawers.
Is the memory or storage upgradeable?
The system uses DDR3 SODIMM memory in two sockets and a serviceable drive bay, allowing IT to upgrade memory and storage during deployment.
What operating system does it run for POS software?
It ships with Windows Embedded POSReady 7, which includes touch drivers and is widely supported by retail point-of-sale applications.
Is extended warranty available?
HP Care Pack service plans can extend coverage on retail systems. Browse related HP Inc. products at Creation Networks.
