Facilis HUB One – 256TB Shared Storage Stack

Product Overview

The Facilis HUB One 256TB Shared Storage Stack is a high-capacity collaborative media storage system designed for large post-production, broadcast, and multi-suite editorial facilities. The HUB One head unit paired with a dual D16 expansion configuration delivers 256TB of pooled shared storage with self-healing RAID protection and a cross-platform shared file system at its core. Connectivity spans dual-port 16/32/64Gb Fibre Channel and dual-port 10/25/40/50/100 GbE, giving facilities the flexibility to integrate with both SAN and IP-based network environments. FastTracker MAM with unlimited seats and the Facilis Web Console are included standard, covering asset management and storage administration without additional licensing.

Product Description

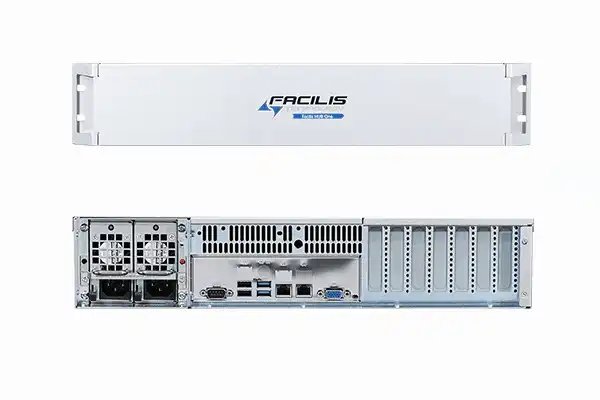

The Facilis HUB One 256TB stack pairs the HUB One head unit with two D16 expansion drive units, each housing 16 drives on 12Gb SAS controllers, for a total of 256TB of shared, managed storage. The head unit coordinates bandwidth across both expansion units, presenting a unified storage pool to all connected clients with consistent performance across concurrent sessions. Self-healing RAID monitors and rebuilds drive arrays automatically, removing the need for manual drive management in active production environments.

The Facilis Shared File System enables simultaneous multi-user access from macOS, Windows, and Linux workstations without protocol translation or compatibility compromises. Project-based virtual volumes are created and permissioned through the Facilis Web Console, then deployed to workstation desktops with minimal administrative effort. The system integrates with active directory for centralized user and group management, which is particularly practical for large facilities managing access across dozens of editors, colorists, and audio engineers.

Dual-port Fibre Channel connectivity at 16/32/64Gb provides the low-latency, dedicated SAN throughput required for uncompressed and high-bitrate formats, while dual-port Ethernet at 10/25/40/50/100 GbE supports IP-based access for workstations not on a Fibre Channel fabric. FastTracker MAM is included with unlimited seats, providing media asset management with metadata tagging, search, and project tracking accessible from the same browser-based interface as the Web Console. The 256TB capacity in this dual-D16 configuration addresses facilities that need substantially more headroom than a single-unit system can provide while keeping the stack footprint manageable.

Key Features

• Self-Healing RAID — Continuously monitors drive health and rebuilds arrays automatically, protecting production data without requiring manual intervention.
• Dual D16 Stack Architecture — HUB One head unit paired with two 16-drive expansion units delivering 256TB of pooled shared storage in a single managed stack.
• Dual-Port Fibre Channel Connectivity — Supports 16/32/64Gb Fibre Channel for dedicated SAN connections with the low latency required for high-bitrate media formats.
• Dual-Port Ethernet Connectivity — Supports 10/25/40/50/100 GbE for IP-based integration with existing network infrastructure.
• Facilis Shared File System — Cross-platform concurrent access for macOS, Windows, and Linux workstations from a single unified storage pool.
• FastTracker MAM – Unlimited Seats — Integrated media asset management included with no per-seat licensing, covering the full facility without incremental cost.
• Facilis Web Console — Browser-based administration for volume creation, user permissioning, and real-time bandwidth monitoring from any networked device.
• Virtual Volume Management — Project-based volumes can be created, permissioned, and pushed to workstation desktops on demand, simplifying workflow organization across large teams.

Typical Applications

• Post-production and editorial suites requiring high-capacity shared storage for concurrent multi-editor and multi-discipline workflows
• Broadcast studios and news production facilities managing continuous ingest, edit, and playout media at scale
• House of worship media teams supporting multi-camera production, archive, and live streaming from shared storage
• Government video departments requiring permissioned, auditable shared storage with active directory integration
• Large multi-suite facilities consolidating color grading, audio, and finishing rooms onto a single centrally managed storage platform

Technical Specifications

Specifications sourced from Facilis Technology. Detailed environmental specifications vary by configuration; contact Creation Networks for a full spec sheet.

Frequently Asked Questions

Is the Facilis HUB One 256TB compatible with my NLE?

Yes. The Facilis Shared File System supports all major non-linear editing applications including Adobe Premiere Pro, Avid Media Composer, DaVinci Resolve, and Final Cut Pro across macOS, Windows, and Linux workstations simultaneously.

What network connection does the HUB One use?

The HUB One supports dual-port Fibre Channel (16/32/64Gb) for SAN connectivity and dual-port Ethernet (10/25/40/50/100 GbE) for IP network integration. Facilities can use either or both protocols depending on their existing infrastructure.

How does the dual D16 stack configuration scale storage?

The two D16 expansion units connect to the HUB One head unit, which aggregates their capacity and bandwidth into a single storage pool. Future expansion options can be discussed with Creation Networks based on your facility's growth trajectory.

How do the Web Console and FastTracker MAM work together for collaborative workflows?

The Facilis Web Console manages storage volumes, user permissions, and bandwidth monitoring, while FastTracker MAM provides asset-level management including metadata, search, and project tracking. Both are browser-based and included with the system.

What does deployment look like for a large-capacity installation?

Installation involves racking the head unit and expansion units, connecting Fibre Channel or Ethernet cabling, and configuring the Facilis Shared File System and Web Console. Creation Networks provides pre-sales consultation and deployment coordination; contact us at creationnetworks.net for project scoping.

What warranty and support are available?

Warranty terms and support coverage are determined by Facilis Technology and may vary by configuration. Contact Creation Networks for current warranty details and available support options before purchase.
