Extron AAP1XLR One XLR 3-pin Female to Solder Cup - Neutrik AAP Module Black
Extron AAP1XLR One XLR 3-pin Female to Solder Cup - Neutrik AAP Module Black is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise? Give us a call at 1-888-230-3661 or LiveChat below. Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Looking for a specific Extron product or custom AV solution? Our certified experts can source any Extron device to meet your project requirements. Please contact Creation Networks for a personalized quote or to learn more about our certified Extron design, programming, installation and maintenance services for conference rooms, auditoriums, training centers, and hybrid collaboration spaces. Creation Networks offers direct technical support during the initial Extron implementation and future support of Extron products as needed.
Extron AAP1XLR One XLR 3-pin Female to Solder Cup - Neutrik AAP Mod...

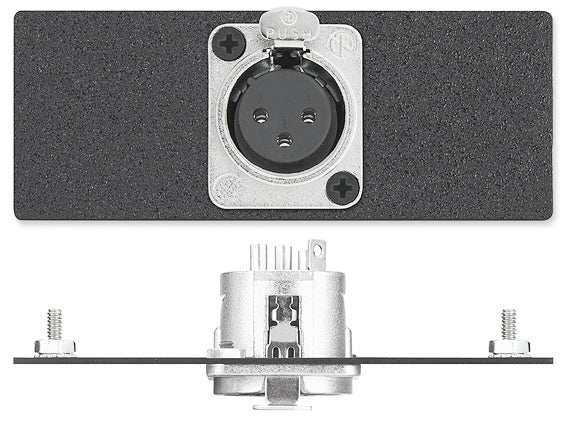

Extron AAP1XLR is a double-space AAP AV Connectivity Module featuring one Neutrik XLR 3-pin female connector with solder cup termination. This passive pass-through module provides a professional audio input or output point in architectural AV installations. The mountable metal plate construction ensures secure, durable placement for reliable balanced audio connections.
This module is suited for conference rooms, classrooms, lecterns, podiums, table boxes, and wall-mounted applications requiring XLR connectivity for microphones, mixers, amplifiers, or other pro audio equipment integrated with AV systems. It allows custom soldering of audio cables on the rear for fixed installations, supporting clean signal routing in Extron AAP-compatible frames, interfaces, and enclosures without active processing.
Features Chart
| Feature | Benefit |
|---|---|
| Double-space AAP form factor | Fits into Extron interfaces, AAP mounting frames, and compatible enclosures for professional layouts |
| Neutrik XLR 3-pin female connector | Industry-standard balanced audio connection for microphones or line-level signals |
| Solder cup termination | Enables secure, custom cable soldering for reliable fixed wiring |
| Mountable metal plate | Provides sturdy, vibration-resistant mounting and long-term durability |
| Pass-through design | Maintains audio signal integrity with no added latency or processing |
| AAP series compatibility | Integrates seamlessly with Extron's modular architectural connectivity ecosystem |
| Neutrik quality | Delivers robust, high-contact reliability for pro audio environments |
| Installation-focused module | Supports clean, secure audio access points in presentation spaces |
Specifications Table
| Specification | Details |
|---|---|
| Connector Type | One XLR 3-pin Female (Neutrik) to Solder Cups |
| Form Factor | Double Space AAP module |
| Mounting | Mountable metal plate |
| Type | Installation / Pass-through |
| Compatibility | Select Extron interfaces, AAP AV connectivity mounting frames, AAP-compatible products |
| Signal Type | Balanced audio pass-through |
| Size | Double Space |
Compare Chart
| Aspect | Extron AAP1XLR | Extron AAP1XLR1XLR (dual variant) | Extron AAP1MINIXLR4PTSC (Mini XLR example) |
|---|---|---|---|
| Connector Type | XLR 3-pin Female to Solder Cup | Dual XLR 3-pin (Male/Female) | Mini XLR 4-pin Male to Solder Cups |
| Audio Configuration | Single 3-pin female | One male + one female | Mini 4-pin male |
| Form Factor | Double Space AAP | Double Space AAP | Single Space AAP |
| Mounting System | AAP frames/enclosures | AAP frames/enclosures | AAP frames/enclosures |
| Termination Method | Solder cups | Solder cups | Solder cups |
| Primary Use | Balanced audio input/output | Dual XLR audio connections | Compact mini XLR audio |
| Ideal For | Standard mic/line audio | Expanded audio I/O | Space-limited mini connector needs |
FAQ
- What is the main purpose of this module? It provides a Neutrik XLR 3-pin female pass-through connector with solder cup termination for balanced audio in AV installations.
- Which mounting systems are compatible? It fits select Extron interfaces, AAP AV connectivity mounting frames, wall boxes, table boxes, and other AAP-compatible products.
- Why use solder cup termination? Solder cups allow custom cable soldering on the rear for permanent, reliable connections in fixed setups.
- Does it require power or active components? No, it is a fully passive pass-through module with no electronics or power needs.
- What type of audio does it support? It handles balanced audio signals, commonly used for professional microphones, mixers, or line-level connections.
- Is it suitable for high-quality audio applications? Yes, the Neutrik connector and AAP design ensure robust, interference-resistant performance in conference rooms, classrooms, and pro AV environments.
