Extron 1USBCFHDMI F-10 One USB-C Female to HDMI Female on Pigtail MAAP Mini Module Black
Extron 1USBCFHDMI F-10 One USB-C Female to HDMI Female on Pigtail MAAP Mini Module Black is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Looking for a specific Extron product or custom AV solution? Our certified experts can source any Extron device to meet your project requirements. Please contact Creation Networks for a personalized quote or to learn more about our certified Extron design, programming, installation and maintenance services for conference rooms, auditoriums, training centers, and hybrid collaboration spaces. Creation Networks offers direct technical support during the initial Extron implementation and future support of Extron products as needed.
Extron 1USBCFHDMI F-10 One USB-C Female to HDMI Female on Pigtail M...

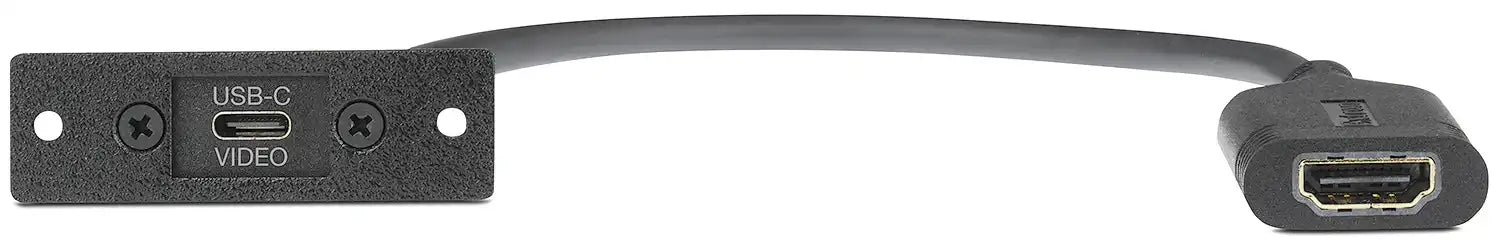

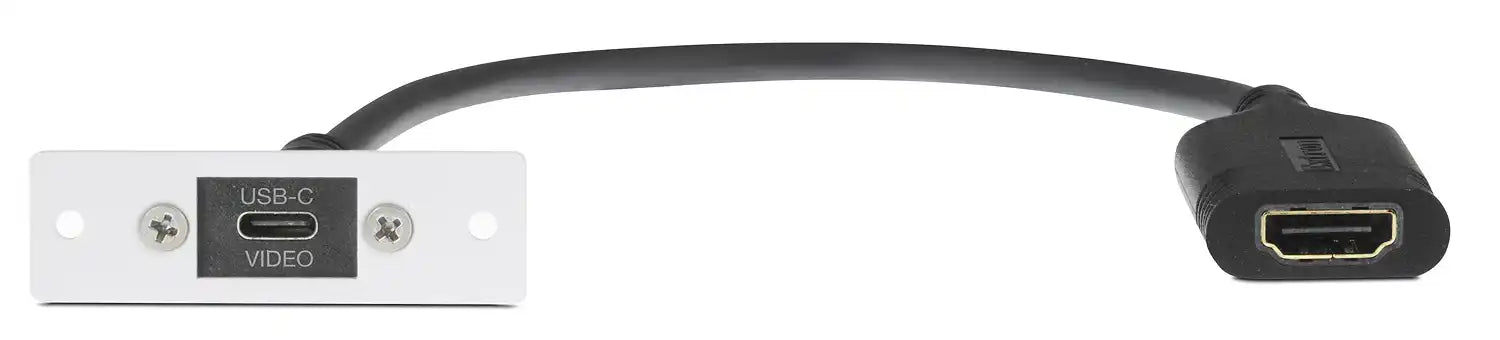

Extron 1USBCFHDMI F-10 is a single-space MAAP Mini AV Connectivity Module with one USB-C female to HDMI female connector on a pigtail. This design allows USB-C sources supporting DisplayPort Alt Mode to connect to HDMI displays and peripherals, delivering high-resolution video output with embedded audio. It passes EDID for automatic display compatibility, HDCP for protected content, and audio information between source and display, ensuring seamless performance in professional setups. The mountable metal plate provides secure, durable integration into architectural environments.
Suited for conference rooms, classrooms, lecterns, podiums, table boxes, and wall-mounted installations where modern USB-C laptops, tablets, or devices need direct video extension to HDMI projectors, monitors, or displays alongside AV systems. The pigtail enables flexible routing in furniture or behind-panel applications, while Quick Connect functionality supports easy installation and module swapping in Extron MAAP-compatible frames, select interfaces, and enclosures.
Features Chart
| Feature | Benefit |
|---|---|
| Single-space MAAP Mini form factor | Compact integration into Extron interfaces, MAAP frames, and compatible enclosures for space-efficient designs |
| USB-C female to HDMI female pigtail | Connects USB-C sources (with DisplayPort Alt Mode) directly to HDMI displays and peripherals |
| Supports 4K/60 @ 4:4:4 | Provides high-resolution video with full chroma subsampling for sharp, detailed imagery |
| Passes EDID, HDCP, and audio | Ensures automatic display recognition, content protection, and embedded multi-channel audio transmission |
| Pigtail configuration | Offers flexible cable routing and reach for architectural or furniture-integrated installations |
| Quick Connect type | Enables fast, tool-free installation and module replacement in modular AV systems |
| Mountable metal plate | Delivers professional durability, secure mounting, and vibration resistance |
| MAAP Mini series compatibility | Fits seamlessly within Extron's compact architectural connectivity ecosystem |
Specifications Table
| Specification | Details |
|---|---|
| Connector Type | One USB-C Female to HDMI Female on pigtail |
| Form Factor | Single Space MAAP Mini module |
| Mounting | Mountable metal plate |
| Video Resolution | Up to 4K/60 @ 4:4:4 |
| Signal Support | DisplayPort Alt Mode over USB-C to HDMI (passes EDID, HDCP, embedded audio) |
| Type | Quick Connect, Pass-through |
| Compatibility | Select Extron interfaces, MAAP AV connectivity mounting frames, MAAP-compatible products; USB-C sources with DisplayPort Alt Mode |
| Signal Type | USB-C to HDMI video/audio pass-through |
Compare Chart
| Aspect | Extron 1USBCFHDMI F-10 | Extron 2USBCFHDMI F-10 | Extron 1HDMIF1USBA2FP |
|---|---|---|---|
| Primary Connectors | USB-C F to HDMI F pigtail | USB-C F to HDMI F pigtail | HDMI F + USB-A F pigtails |
| Video Support | 4K/60 @ 4:4:4 via DP Alt Mode | 4K/60 @ 4:4:4 via DP Alt Mode | HDMI pass-through |
| USB/Data Support | None (video-focused) | None (video-focused) | USB 2.0 |
| Form Factor | Single Space MAAP Mini | Single Space AAP | Single Space AAP |
| Mounting System | MAAP frames/enclosures | AAP frames/enclosures | AAP frames/enclosures |
| Unique Feature | USB-C source to HDMI display | Similar USB-C to HDMI | Combined HDMI + USB |
| Ideal For | Modern USB-C laptop to HDMI | Similar modern USB-C to HDMI | HDMI + USB peripherals |
| Resolution Capability | Up to 4K/60 | Up to 4K/60 | HDMI standard (cable-dependent) |
FAQ
- What sources does this module work with? It supports USB-C sources that include DisplayPort Alt Mode, enabling video output to HDMI displays.
- What resolutions and features does it handle? It supports up to 4K/60 @ 4:4:4, passing EDID for display compatibility, HDCP for protected content, and embedded audio.
- Which mounting systems are compatible? It fits select Extron interfaces, MAAP AV connectivity mounting frames, wall boxes, table boxes, and other MAAP-compatible products.
- Does it require power or active components? No, it is a passive pass-through module with no electronics or power needs.
- Why use a pigtail design? The pigtail allows flexible routing in tight spaces, behind furniture, or in architectural integrations.
- Is it suitable for professional AV installations? Yes, the MAAP Mini form factor and metal plate ensure durable, reliable performance in conference rooms, classrooms, and fixed AV environments.
