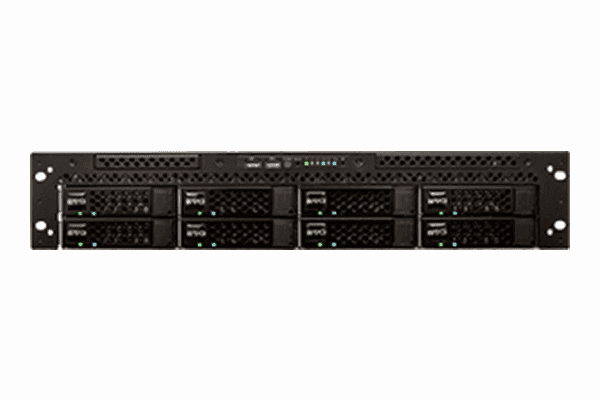

Studio Network Solutions EVO 32TB 8-Bay Short-Depth NAS Server (8 x 4TB) - 8BASESD-8X4TB-16A

Product Overview

The Studio Network Solutions EVO 32TB 8-Bay Short-Depth NAS Server is a compact SNS EVO shared storage server built specifically for AV racks, broadcast studios, and production environments where rack depth is limited to 18 inches. Configured with eight 4TB drives for 32TB of raw capacity in a 4U short-depth chassis, it is the entry-level short-depth AV rack storage server in the EVO 8-bay lineup — delivering the complete EVO platform and software suite in a form factor that fits where full-depth servers cannot. For teams prioritizing rack compatibility without sacrificing shared media storage for post-production capabilities, this is the correct starting point.

Product Description

The 8BASESD-8X4TB-16A is the lowest-capacity configuration of the EVO 8-bay short-depth platform, designed for environments where the 18" chassis depth is a hard installation requirement. Eight 4TB drives populate the chassis for 32TB of raw storage, running SNS’s custom Linux EVO OS. The short-depth form factor is purpose-built for broadcast control rooms, AV equipment racks, location production units, and any facility where standard 2U servers exceed the available rack depth. Despite the compact footprint, the full EVO Suite is included: ShareBrowser MAM for media asset management with native NLE panel integration, Slingshot for automated watch-folder ingest and transcoding, and Nomad for remote editing over standard internet connections — all with unlimited user licensing. RAID 5 and RAID 6 are both supported, giving administrators control over the protection and capacity tradeoff. Two on-board 10GbE ports support multi-user 4K 8K shared storage workflows, with additional NIC options for 1, 10, or 25GbE expansion. One full-depth expansion unit can be connected post-deployment, scaling raw capacity to 720TB when space and requirements allow. The dual redundant 875W power supplies (100–240VAC) run at a low 230W typical draw, making this system appropriate for power-constrained AV rack environments. Active Directory, LDAP, and REST API integration are all included. For teams looking to enter the EVO short-depth ecosystem or deploy in a shallow rack environment with room to grow, the 32TB model provides the most accessible price point in the short-depth line while retaining the full feature set of the EVO 8 bay rack-mount storage platform.

Key Features

• 18" Short-Depth Chassis — Installs in AV racks, broadcast control rooms, and location production units where standard-depth servers cannot fit.
• 32TB Raw Capacity — Eight 4TB drives in a 4U form factor; scalable via expansion unit to 720TB raw.
• EVO Suite Included (Unlimited Users) — ShareBrowser MAM, Slingshot, and Nomad ship at no per-seat cost.
• RAID 5 and RAID 6 — Administrators choose the protection level that matches their operational requirements.
• Dual 10GbE On-Board — Multi-editor bandwidth ready on day one, expandable to 25GbE with additional NICs.
• Expandable to 720TB — One expansion unit can be added when capacity needs exceed the initial 32TB configuration.
• Low-Power Design — 230W typical draw from dual 875W redundant PSUs, well-suited for power-limited AV rack environments.
• 4-Post and 2-Post Compatible — Installs in 4-post racks with 21"–27.5" inner-rail depth; 2-post installation supported with optional hardware.
• Broad NLE Compatibility — Supports Adobe Premiere Pro, DaVinci Resolve, Final Cut Pro, Avid Media Composer, Blender, Nuke, and Pro Tools.
• AD/LDAP and REST API — Enterprise directory integration and API access included for IT management and automation.

Typical Applications

• Broadcast control rooms and studios with shallow rack enclosures
• On-set and location production units with compact rack infrastructure
• Mobile production facilities and broadcast trucks
• Post-production studios deploying storage in AV-style racks
• AV integrators installing shared storage in depth-constrained rack environments
• Smaller facilities entering the EVO shared storage ecosystem at an accessible price point

Technical Specifications

Frequently Asked Questions

Q: Why choose the 32TB short-depth model over the standard 2U EVO 8-Bay?

The short-depth model is 18" deep, fitting in AV racks, broadcast control rooms, and other shallow rack environments where a standard 25"+ deep server cannot be installed. If your rack accommodates standard depth, the 2U models offer 100GbE upgrade potential and a slightly lower 2U profile.

Q: Can I upgrade drive capacity later?

The eight bays accept drives from 4TB to 30TB, so drives can be swapped for higher-capacity models as needed. One expansion unit can also be added for additional bays, scaling to 720TB raw.

Q: Is the full EVO Suite included?

Yes. ShareBrowser MAM, Slingshot, and Nomad are all included with no per-seat licensing fees.

Q: What is the maximum network speed available on this model?

Two on-board 10GbE ports are included. Additional NICs can expand to 1, 10, or 25GbE. Note that the short-depth chassis supports up to 25GbE, compared to 100GbE for the standard-depth models.

Q: What RAID options are available?

RAID 5 and RAID 6. RAID 6 offers dual-drive failure protection and is generally recommended for production environments.

Q: Does this system support remote editing?

Yes. Nomad enables remote editing over standard internet connections without a dedicated VPN appliance.

Q: What rack type is required?

A 4-post rack with 21" to 27.5" inner-rail depth is required for standard installation. Optional hardware supports 2-post rack mounting.

Q: Does it integrate with Active Directory?

Yes. The EVO OS includes native AD and LDAP integration for centralized user and permission management.
